System Diagram

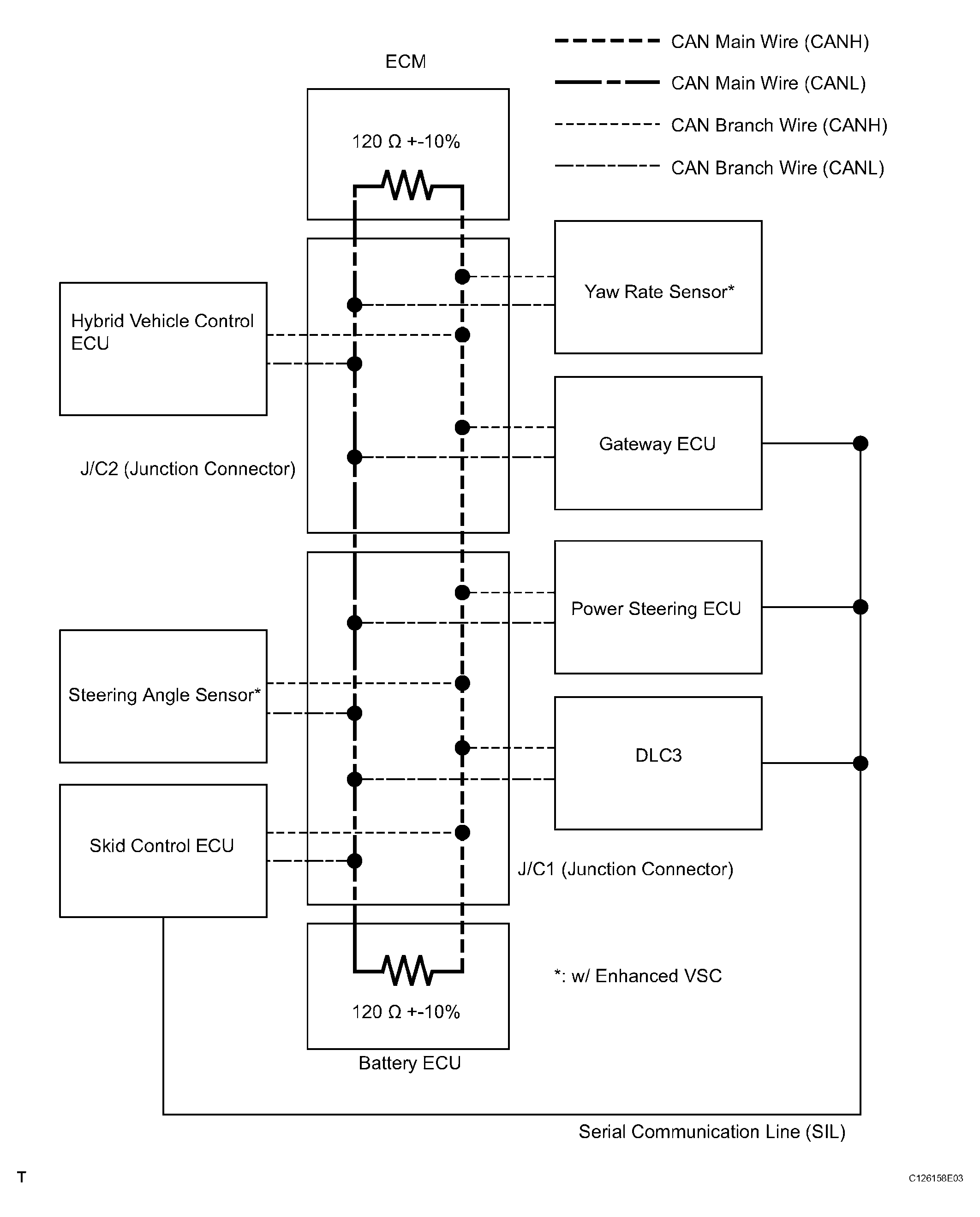

Fig 1: CAN Communication System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• The skid control ECU detects and stores steering sensor and yaw rate sensor DTCs and performs DTC communication by receiving information from the steering sensor and yaw rate sensor.
• The ECM, hybrid vehicle control ECU, and battery ECU use the CAN communication system to perform DTC communication instead of the conventional communication line (SIL).
