Steering Pad Switch Circuit: Wiring Diagram

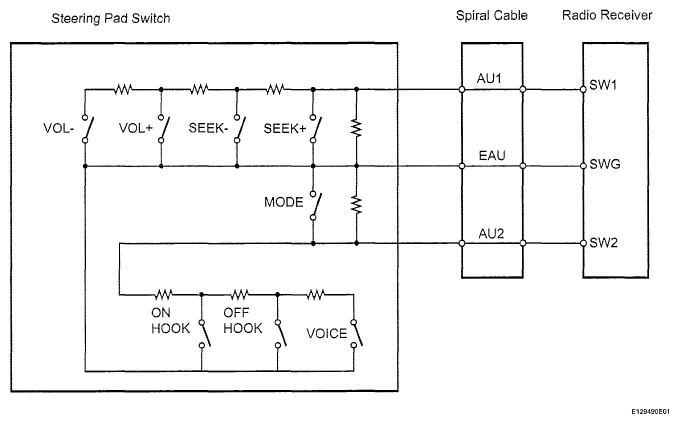

Fig 1: Steering Pad Switch Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
