Audio And Visual System
›
System Diagram
System Diagram

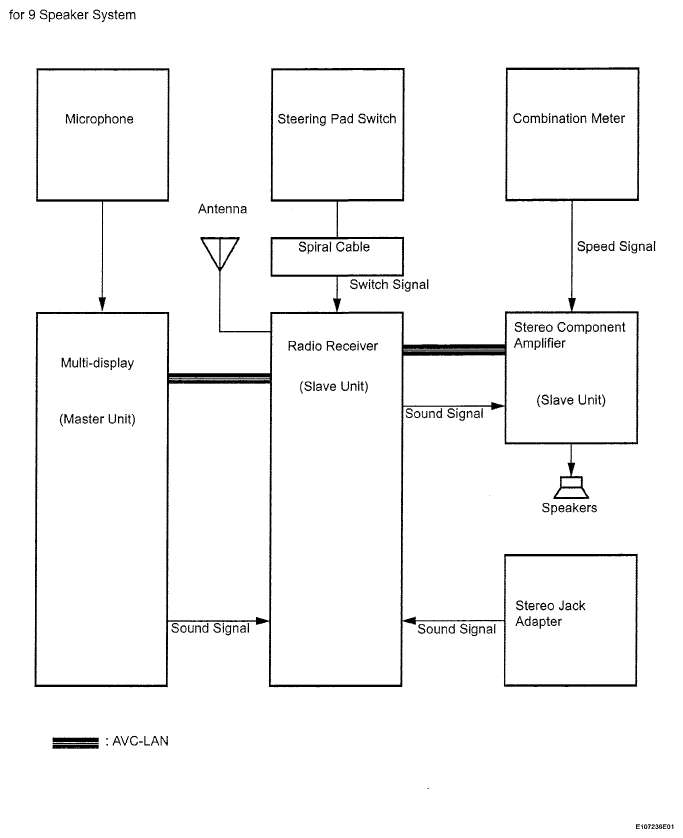

Fig 1: Audio And Visual System Diagram (9 Speaker System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

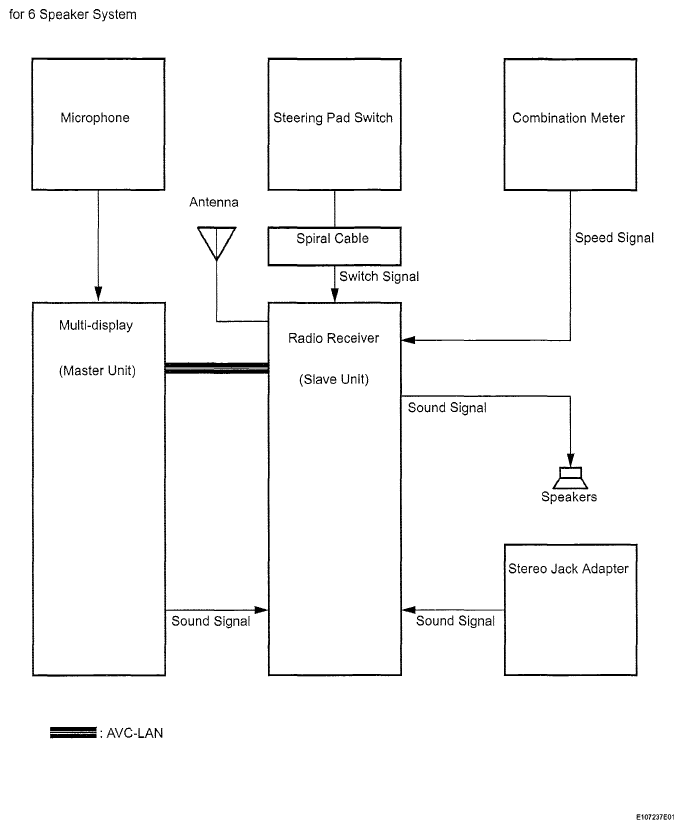

Fig 2: Audio And Visual System Diagram (6 Speaker System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
