Back Door Entry Unlock Function does not Operate: Wiring Diagram

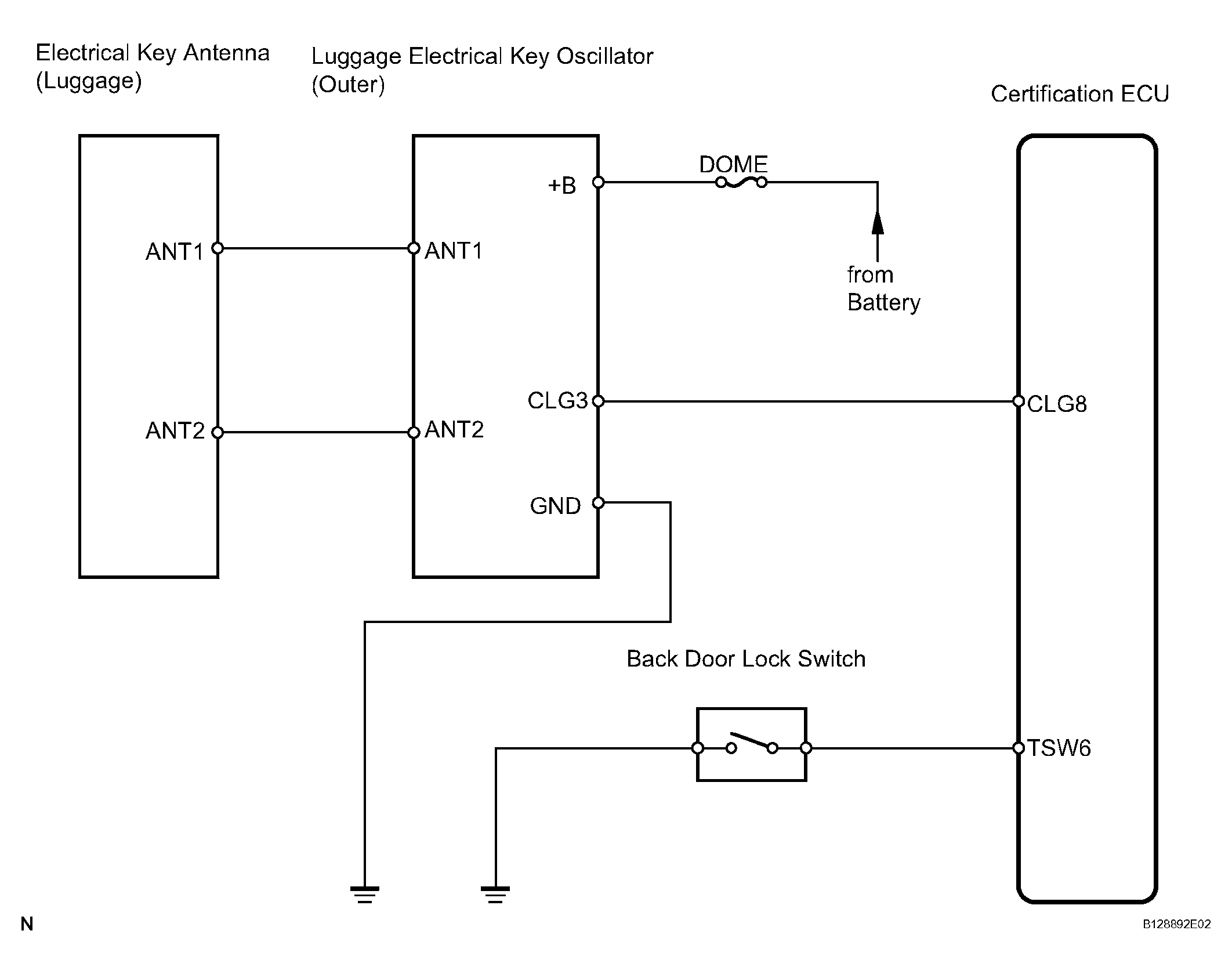

Fig 1: Luggage Compartment Key Oscillator (Outer) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
