Driver Side Door Entry Lock Function does not Operate
›
Wiring Diagram
Driver Side Door Entry Lock Function does not Operate: Wiring Diagram

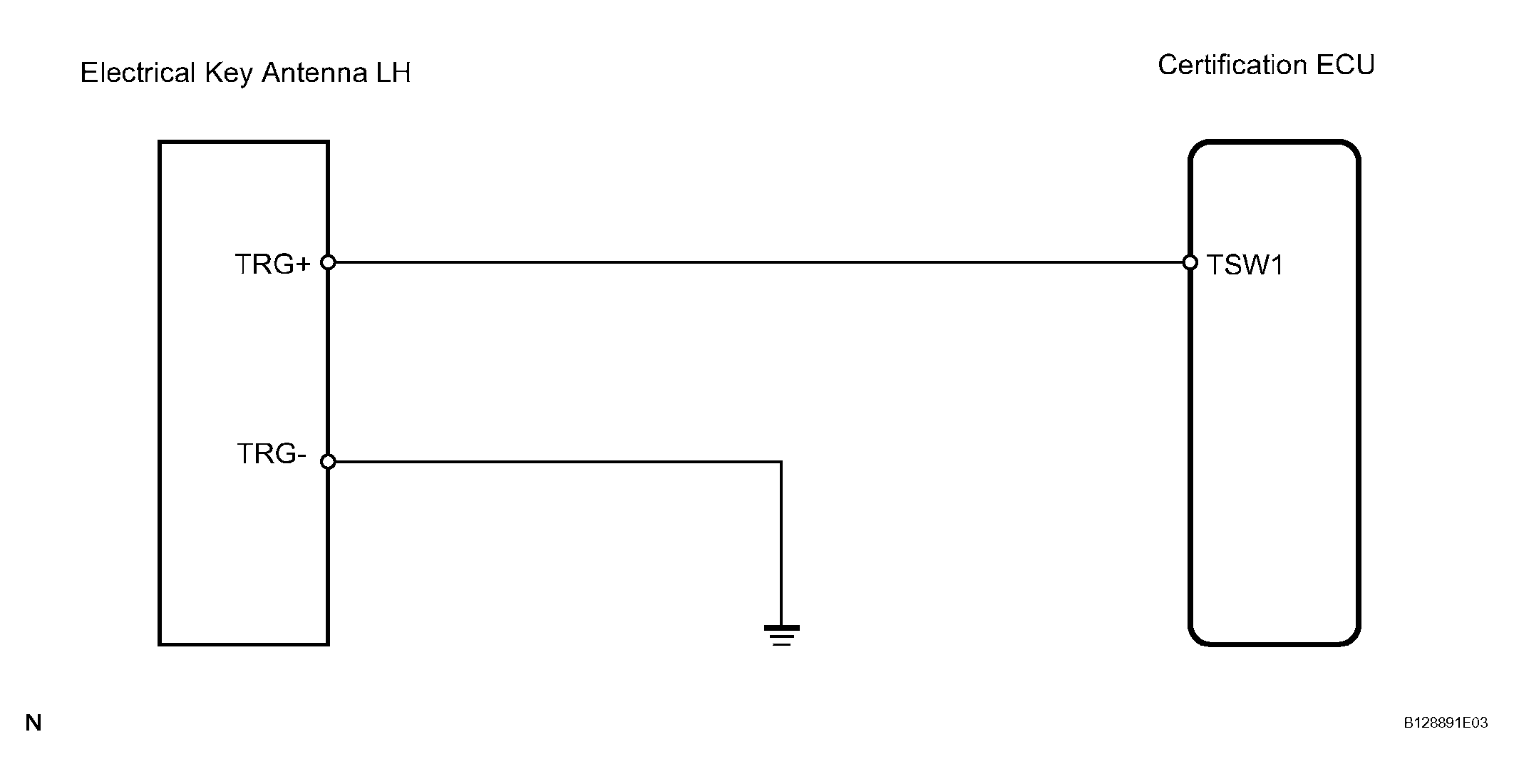

Fig 1: Electrical Key Antenna - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
