Door Lock
›
Smart Key System
›
Driver Side Door Entry Unlock Function does not Operate
›
Wiring Diagram
Driver Side Door Entry Unlock Function does not Operate: Wiring Diagram

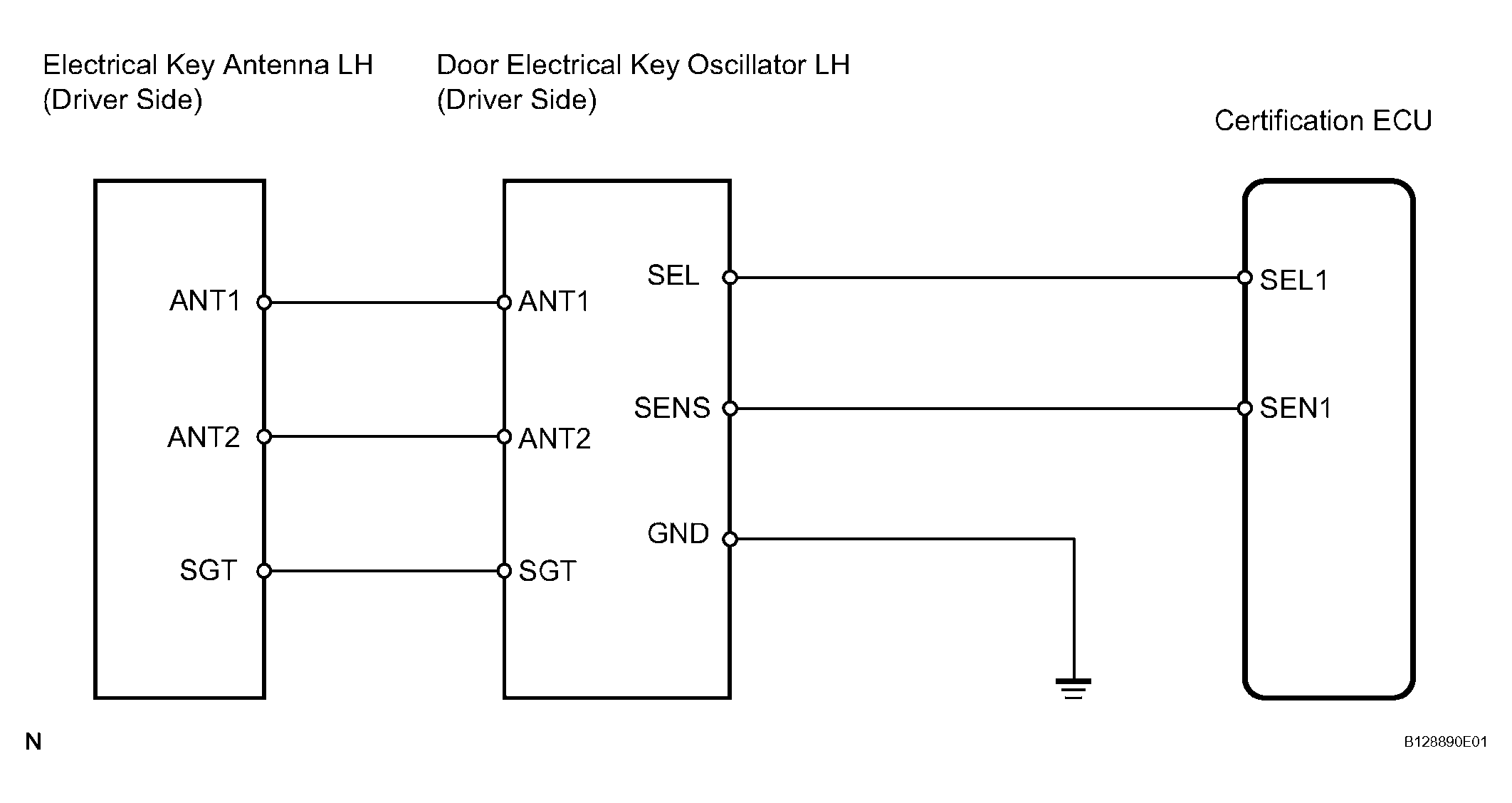

Fig 1: Door Electrical Key Oscillator - Wiring Diagram
