Inspection Procedure

1. Check that the manual door lock function operates normally.

   OK : Manual door lock function operates normally.

NG : GO TO POWER DOOR LOCK CONTROL SYSTEM

OK : GO TO NEXT STEP

1. Check the DATA LIST for proper functioning of the certification ECU.

   Certification ECU

   CERTIFICATION ECU DATA LIST



   Item Normal	Condition	Diagnostic	Note
   P TRIGGER SW	P-door trigger switch / ON or OFF	ON: Lock switch is pushed OFF: Lock switch is not pushed	-

   OK : ON (lock switch is pushed) appears on the screen.

OK : REPLACE CERTIFICATION ECU

NG : GO TO NEXT STEP

1. Disconnect the E9 antenna connector.
2. Disconnect the S11 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   E9-3 (TRG+) - S11-6 (TSW2)	Below 1 Ω
   E9-1 (TRG-) - Body ground	Below 1 Ω
   E9-3 (TRG+) or S11-6 (TSW2) - Body ground	10 kΩ or higher

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

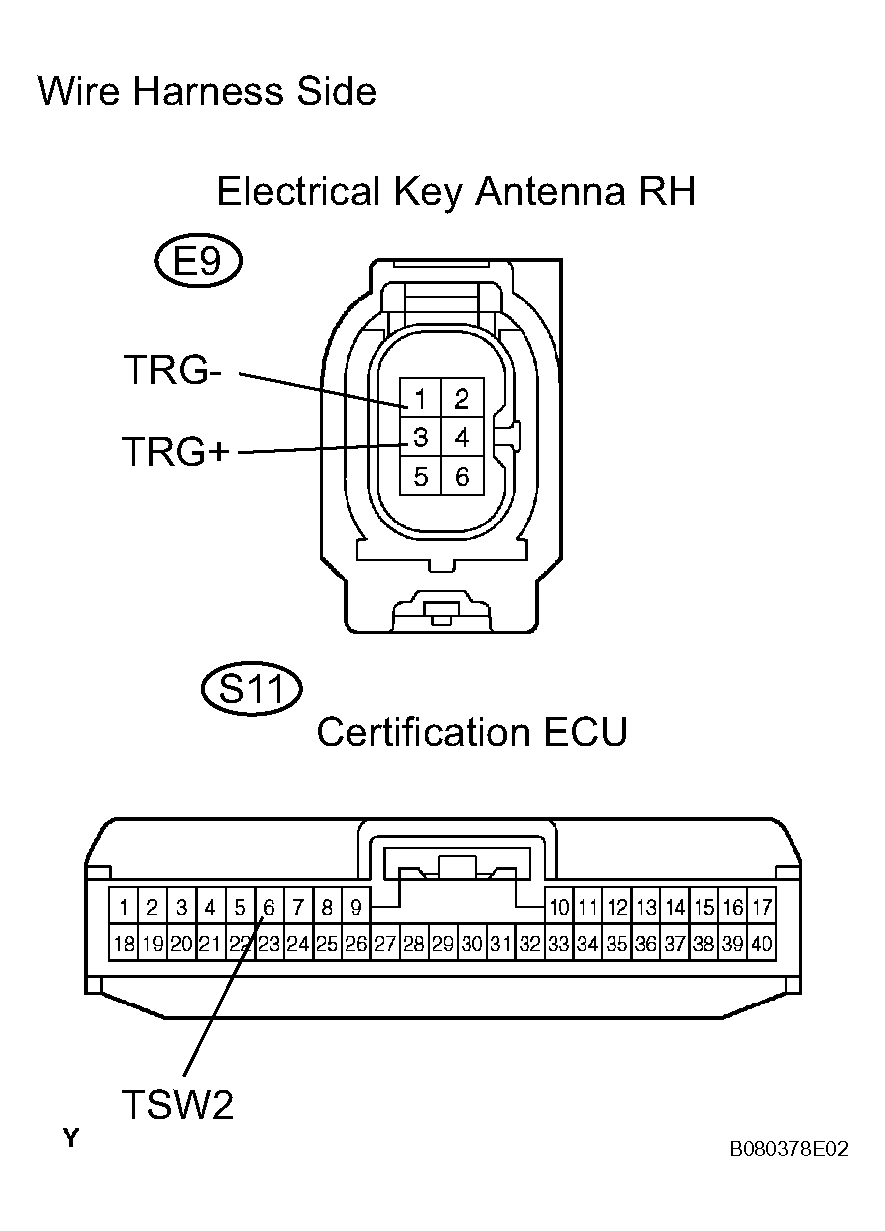

Fig 1: Identifying E9 Antenna And S11 ECU Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Measure the resistance of the outside door handle.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   1 (TRG-) - 3 (TRG+)	Switch pushed	Below 1 Ω
   1 (TRG-) - 3 (TRG+)	Switch not pushed	10 kΩ or higher

NG : REPLACE ELECTRICAL KEY ANTENNA RH

Fig 2: Identifying Electrical Key Antenna Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE CERTIFICATION ECU
