Inspection Procedure

1. Check that the manual door lock and unlock function operates normally.

   OK : Manual door lock and unlock function operates normally.

NG : GO TO POWER DOOR LOCK CONTROL SYSTEM

OK : GO TO NEXT STEP

1. Select the ACTIVE TEST, use the intelligent tester to generate a control command, and then check that the oscillator operates.

   Certification ECU

   CERTIFICATION ECU ACTIVE TEST



   Item	Test Details	Diagnostic Notes
   P TRANSMITTER	Front passenger side transmitter ON / OFF	-

   OK : When key is brought close to door oscillator that is ON, indicator on key illuminates.

OK : REPLACE CERTIFICATION ECU

NG : GO TO NEXT STEP

1. Disconnect the D17 oscillator connector.
2. Disconnect the S11 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   D17-4 (CLG) - S11-14 (CLG2)	Below 1 Ω
   D17-4 (CLG) or S11-14 (CLG2) - Body ground	10 kΩ or higher
   D17-8 (GND) - Body ground	Below 1 Ω

4. Measure the voltage of the wire harness side connector.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   D17-1 (+B) - Body ground	10 to 14 V

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

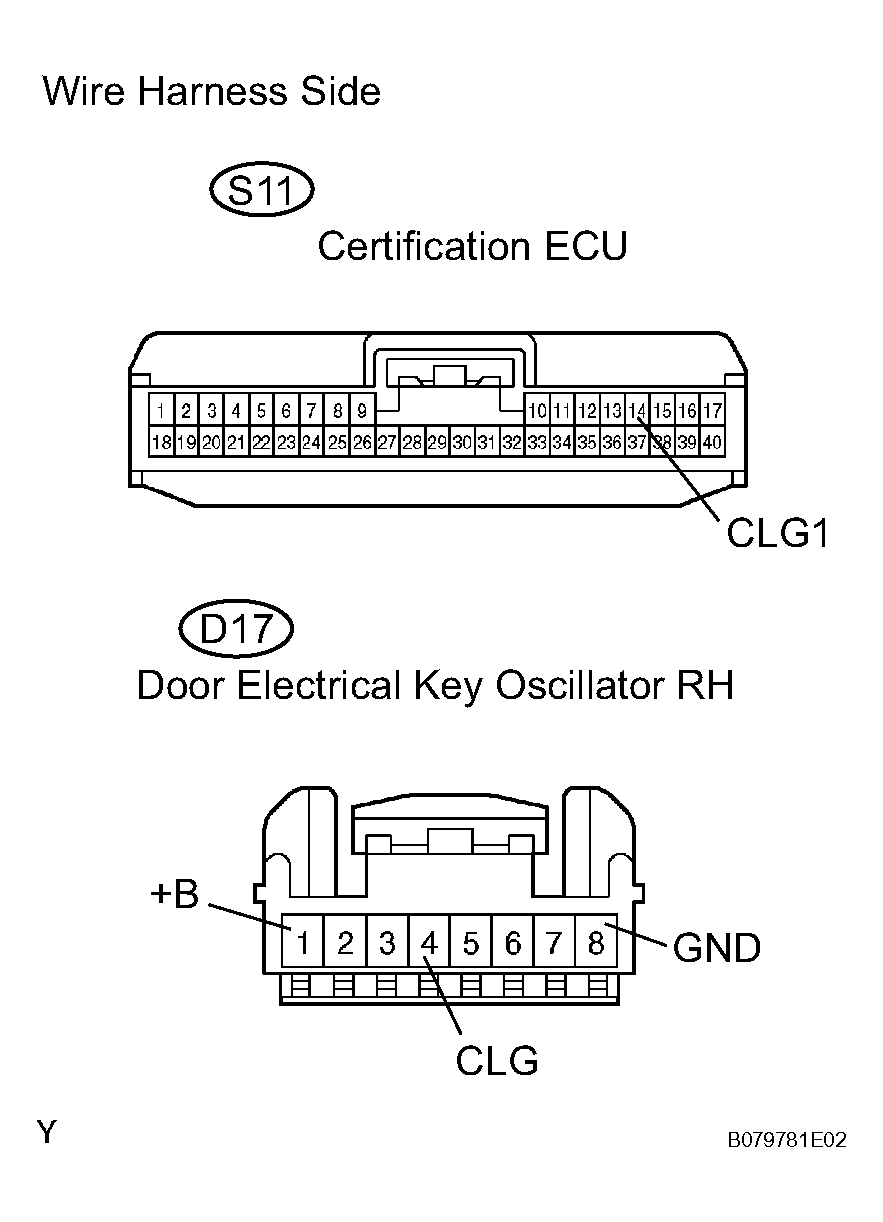

Fig 1: Identifying D17 Oscillator Connector And S11 ECU Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Measure the voltage between the terminals of the connector when the power switch is operated.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D17-4 (CLG) - Body ground	Power switch OFF	Alternating between 5 V and below 1 V
   	Power switch ON (IG)	Below 1 V

NG : REPLACE DOOR ELECTRICAL KEY OSCILLATOR RH

Fig 2: Identifying Door Electrical Key Oscillator Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE CERTIFICATION ECU
