Inspection Procedure

  1. CHECK WIRELESS DOOR LOCK CONTROL FUNCTION
    1. Check the wireless door lock control function by operating the transmitter switch.

      Result:

      RESULT REFERENCE

      Result Proceed to
      Wireless door lock functions are normal but hazard warning lights answer-back does not occur A
      Wireless door lock functions are normal but wireless door lock buzzer answer-back does not occur B
      Doors cannot be locked and unlocked with transmitter C

    B : Go to step   4

    C : GO TO PROBLEM SYMPTOMS TABLE

    A : Go to next step

  2. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (TURN SIGNAL FLASHER RELAY)
    1. Select the ACTIVE TEST, use the intelligent tester to generate a control command, and then check that the hazard warning lights flash.

      Main body ECU:

      MAIN BODY ECU ACTIVE TEST

      Item Test Details Diagnostic Note
      HAZARD Turn signal flasher relay ON / OFF -

      OK : Turn signal flasher relay turns ON / OFF.

    OK : REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY (MAIN BODY ECU)

    NG : GO TO NEXT STEP

  3. CHECK HAZARD WARNING LIGHT
    1. Check that the hazard warning lights flash continuously when the hazard warning signal switch is pressed.

      OK : Hazard warning lights flash continuously.

    NG : GO TO LIGHTING SYSTEM

    OK : REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY (MAIN BODY ECU)

  4. INSPECT WIRELESS DOOR LOCK BUZZER
    1. Measure the resistance between terminals 1 and 2 of the buzzer.

      Standard resistance: Approximately 1 kΩ

      NOTE:
      • The buzzer circuit is built into the main body ECU, not into the buzzer itself.
      • When battery voltage is directly applied to the buzzer, the buzzer does not sound.

    NG : REPLACE WIRELESS DOOR LOCK BUZZER

    Fig 1: Identifying Wireless Door Lock Buzzer Connector Terminal
    G04476037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  5. CHECK WIRE HARNESS (WIRELESS DOOR LOCK BUZZER - MAIN BODY ECU AND BODY GROUND)
    1. Disconnect the W6 buzzer connector.
    2. Disconnect the B6 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      W6-1 - B6-13 (BUZ) Below 1 Ω
      W6-2 - Body ground
      W6-1 - Body ground 10 kΩ or higher

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

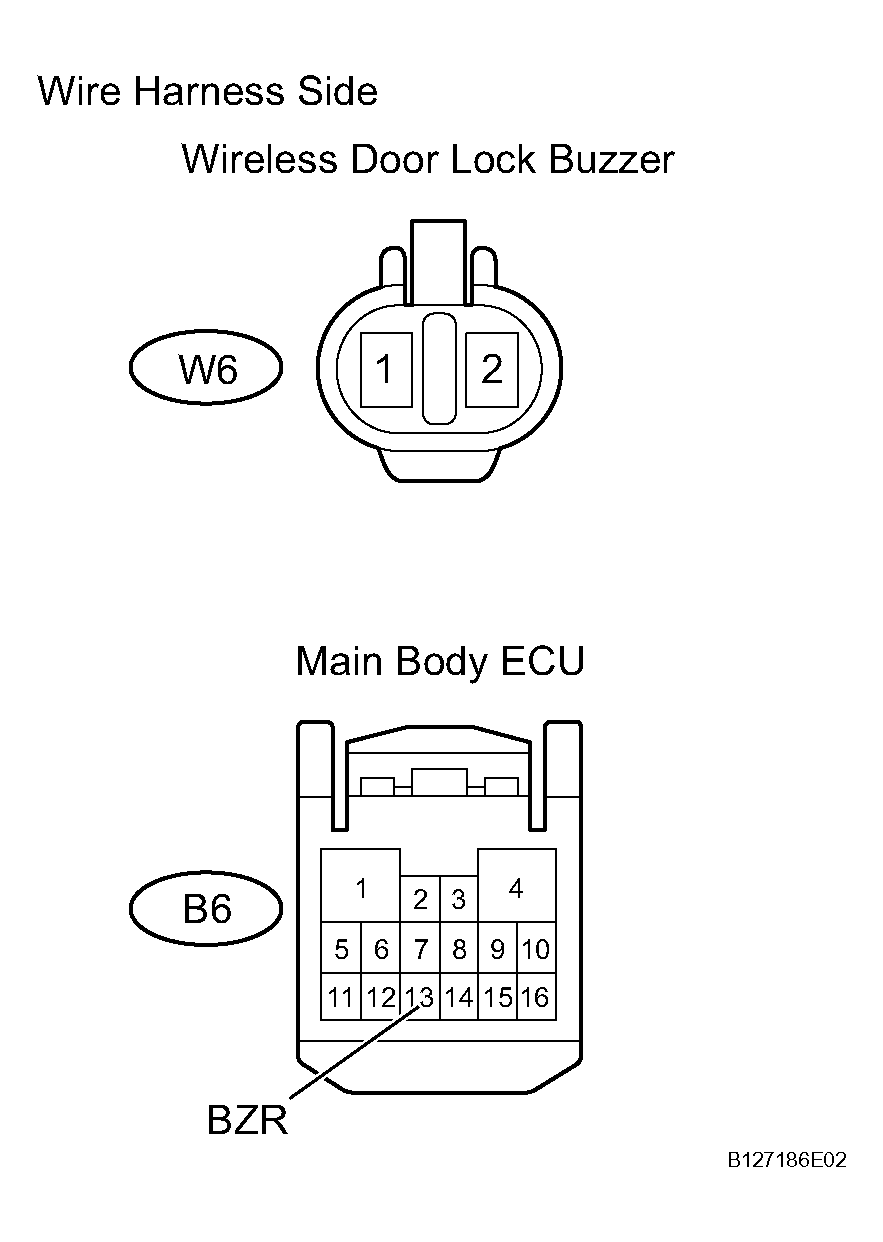

    Fig 2: Identifying Wireless Door Lock Buzzer - Main Body ECU Connector Terminal
    G04476038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY (MAIN BODY ECU)
