WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System)
›
Only Wireless Door Lock Control Function does not Operate
›
Wiring Diagram
Only Wireless Door Lock Control Function does not Operate: Wiring Diagram

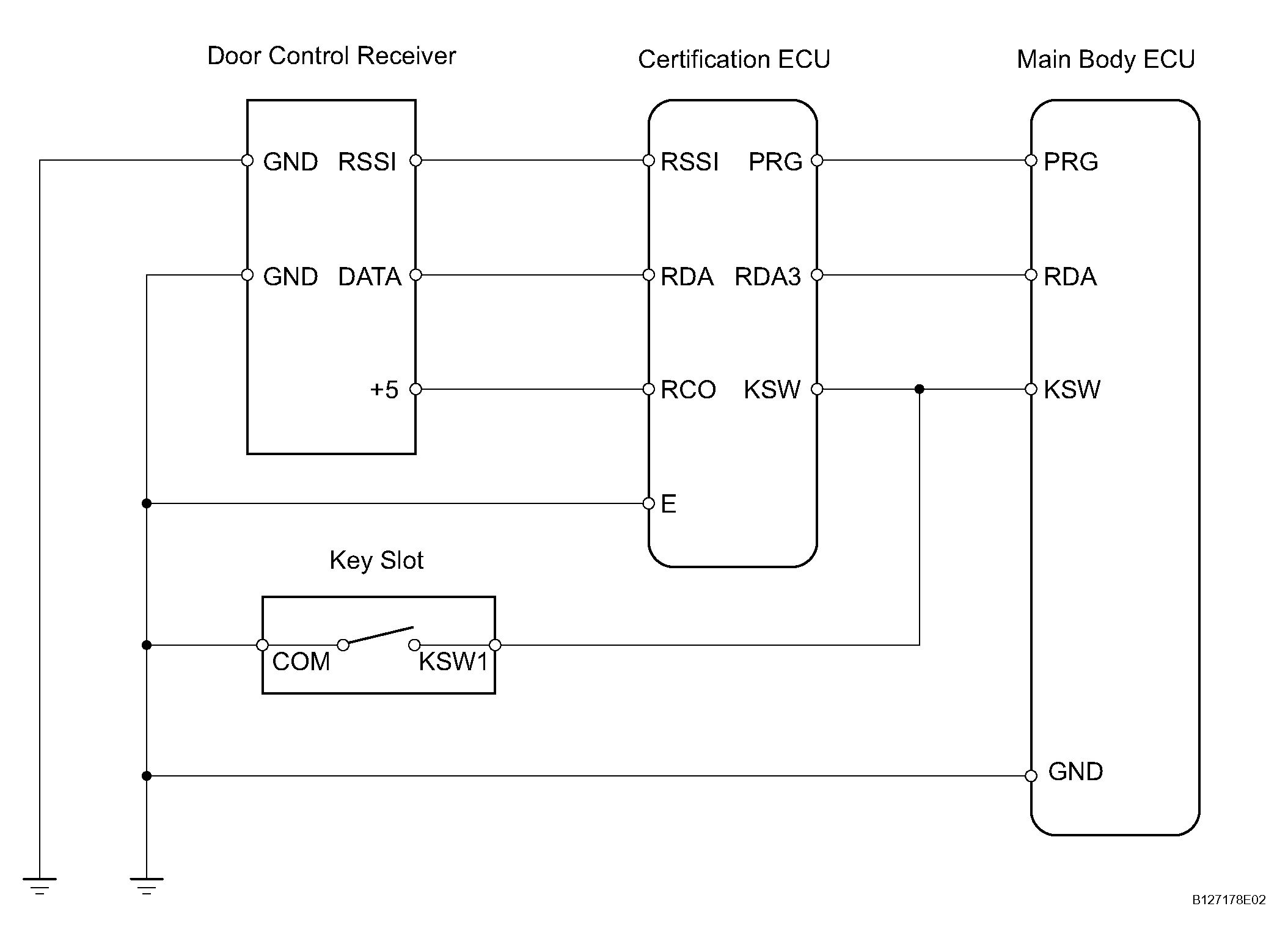

Fig 1: Door Lock Control Receiver - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
