Inspection Procedure

  1. CHECK WIRELESS DOOR LOCK CONTROL FUNCTION
    1. Check the wireless door lock control functions (see OPERATION CHECK  ).

      OK : Each function of wireless door lock control system operates normally using transmitter switches.

    OK : NORMAL

    NG : GO TO NEXT STEP

  2. CHECK THAT TRANSMITTER LED LIGHT UP
    1. Check that the transmitter's LED illuminates 3 times when the switch is pressed 3 times.

      OK : Transmitter's LED illuminates 3 times when switch is pressed 3 times.

    NG : Go to step   4

    OK : GO TO NEXT STEP

  3. CHECK WIRELESS DOOR LOCK CONTROL FUNCTION (STANDARD OPERATION)
    1. Check standard UNLOCK/LOCK switch operation.
      NOTE: Standardized test procedures: Press the transmitter switch for 1 second, directing the transmitter to the driver side door outside handle from a distance of 1 m (3.28 ft.). The transmitter should be pointed directly at the handle, i.e. a 90° angle to vehicle body.

      OK : Doors can be locked and unlocked with transmitter.

    NG : Go to step   5

    OK : REPLACE DOOR CONTROL TRANSMITTER

  4. CHECK TRANSMITTER BATTERY (OPERATION)
    1. Temporarily replace the transmitter battery with a new or normally functioning one.
    2. Check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.

      OK : Doors can be locked and unlocked with transmitter switch.

    NG : REPLACE DOOR CONTROL TRANSMITTER

    OK : END (TRANSMITTER BATTERY IS DEFECTIVE)

  5. SWITCH TO SELF-DIAGNOSTIC MODE
    1. Switch to self diagnostic mode using the intelligent tester.
      1. Connect the intelligent tester (with CAN VIM) to the DLC3.
      2. Turn the power switch ON (IG) and push the intelligent tester main switch ON.

        HINT:

        Please refer to the intelligent tester operator's manual for further details.

        Fig 1: Flash Pattern Of Room Light
        G04476060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Switch to self diagnostic mode by operating the key.
      1. Put the vehicle under the vehicle's initial condition (see OPERATION CHECK  ), insert the key into the key slot and remove it.
      2. Within 5 seconds of removing the key (above step), insert the key into the key slot. Then turn the power switch ON (IG) and OFF.
      3. Within 30 seconds of switching the power switch OFF (step above), perform the following 9 times:. Turn the power switch ON (IG) and OFF*
        NOTE: If the change to self diagnostic mode has failed, the system will return to normal mode.

        HINT:

        • Turning the power switch ON (IG) after step * has been completed will end self-diagnostic mode.
        • Do not lock or unlock doors during the self-diagnostic mode.
    3. Check that the system has switched to self diagnostic mode by checking the flashes of the room light (dome light or key slot light). Compare the flash patterns of the room light to the timing chart on the illustration.

      OK : Flash pattern of room light should be the same as that shown in timing chart on illustration.

    NG : Go to step   9

    OK : GO TO NEXT STEP

  6. CHECK BY SELF-DIAGNOSTIC MODE
    1. Inspect the diagnosis outputs when the door control transmitter switch is held down. The diagnosis outputs can be checked by flash patterns of the room light.

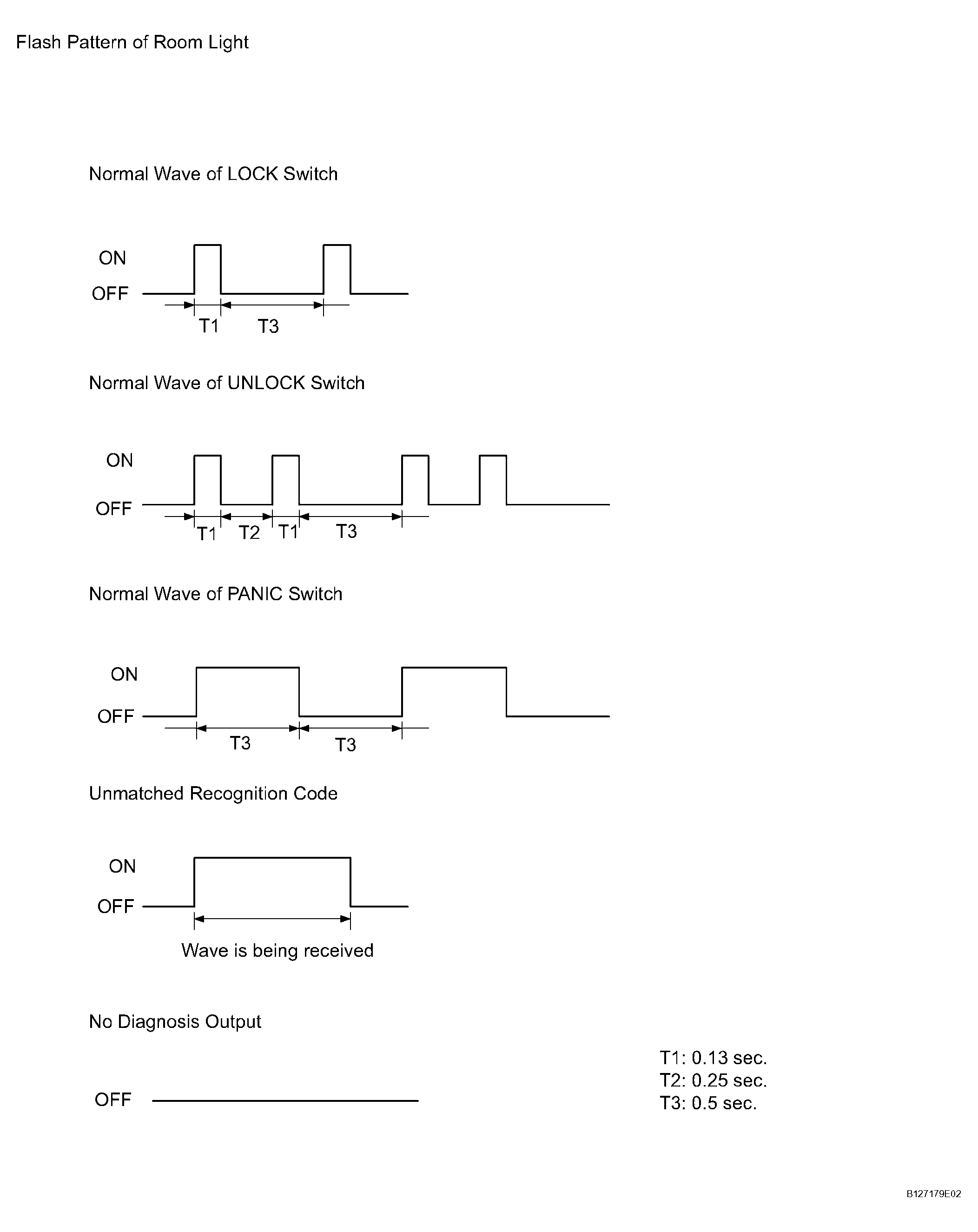

      Fig 2: Flash Pattern Of Room Light
      G04476061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result:

      RESULT REFERENCE

      Result Proceed to
      Unmatched recognition code is output A
      Normal waves (patterns of room light) for LOCK, UNLOCK and PANIC switches are output B
      No diagnosis outputs are present C

    B : REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY (MAIN BODY ECU)

    C : Go to step   8

    A : Go to next step

  7. REGISTER RECOGNITION CODE
    1. Check that the system can switch to rewrite mode or add mode and recognition code can be registered.

      OK : System can switch to rewrite mode or add mode and recognition code can be registered.

    NG : Go to step   15

    OK : END

  8. CHECK DOOR CONTROL RECEIVER (RESPONSE)
    1. Temporarily replace the door control receiver with a new or normally functioning one.
    2. Check that an unmatching recognition code is output when the door lock control transmitter switch is held down.

      OK : Unmatching recognition code is output.

    NG : Go to step   12

    OK : REPLACE DOOR CONTROL TRANSMITTER

  9. CONFIRM INPUT METHOD OF SELF-DIAGNOSTIC MODE

    Result:

    RESULT REFERENCE

    Result Proceed to
    Method for changing system self diagnostic mode works A
    Method for changing system self diagnostic mode does not work B

    B : Go to step   5

    A : Go to next step

  10. INSPECT KEY SLOT
    1. Measure the resistance of the halfway switch.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      2 - 4 No key is in key slot 10 kΩ or higher
      Key is in key slot Below 1 Ω

    NG : REPLACE KEY SLOT

    Fig 3: Identifying Key Slot Connector Terminal
    G04476062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  11. CHECK WIRE HARNESS (KEY SLOT - DRIVER SIDE JUNCTION BLOCK AND BODY GROUND)
    1. Disconnect the K2 slot connector.
    2. Disconnect the 1E junction block connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      K2-4 (KSW1) - 1E-26 (KSW) Below 1 Ω
      K2-2 (COM) - Body ground

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

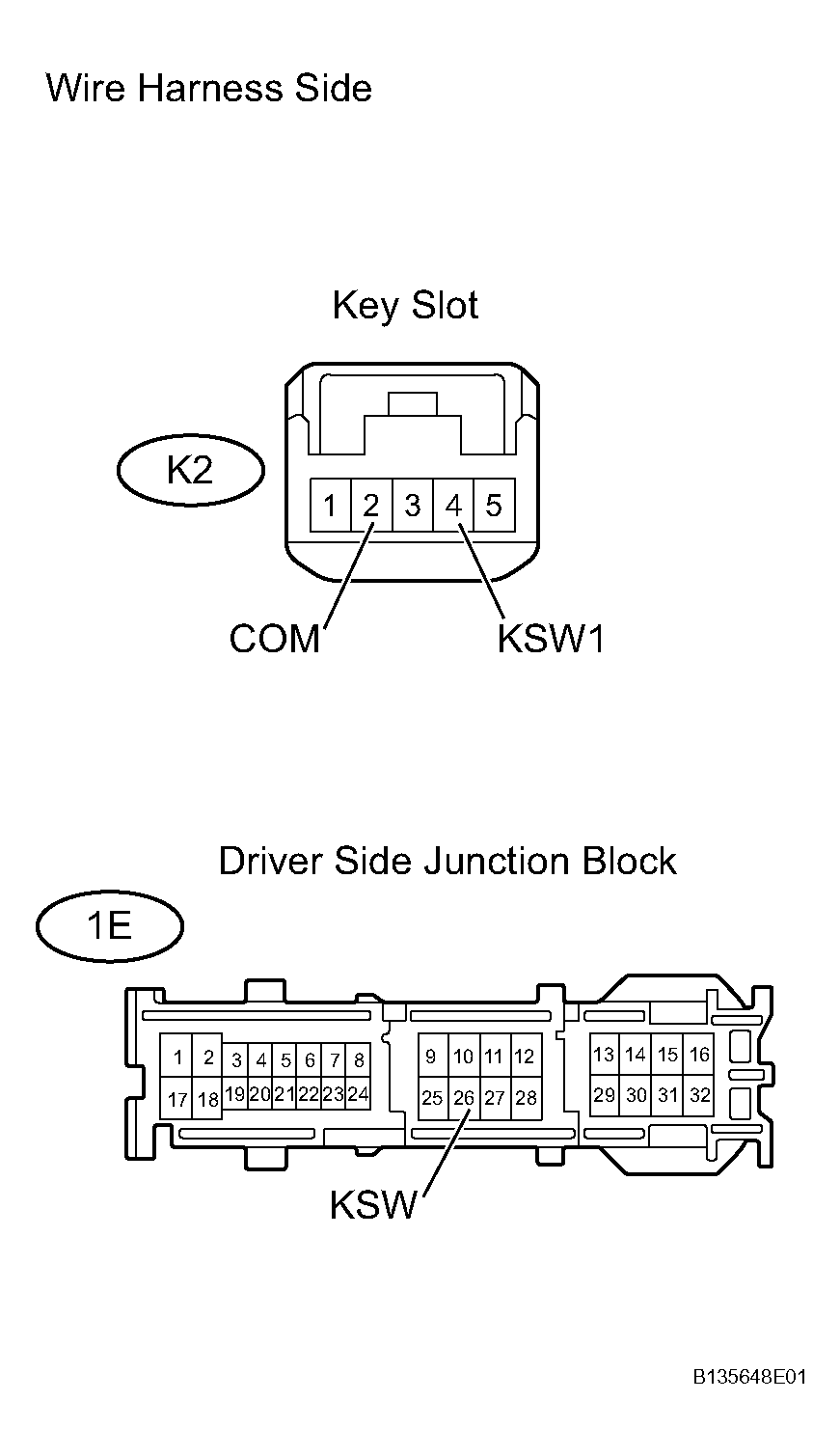

    Fig 4: Identifying K2 Slot And 1E Junction Block Connector Terminal
    G04476063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  12. CHECK WIRE HARNESS (DOOR CONTROL RECEIVER - BATTERY AND BODY GROUND)
    1. Disconnect the D4 receiver connector.
    2. Measure the resistance and voltage of the wire harness side connector.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      D4-1 (GND) - Body ground Below 1 Ω

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      D4-5 (+B) - Body ground 10 to 14 V

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    Fig 5: Identifying D4 Receiver Connector Terminal
    G04476064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  13. CHECK WIRE HARNESS (DOOR CONTROL RECEIVER - MAIN BODY ECU)
    1. Disconnect the D4 receiver connector.
    2. Disconnect the B7 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      D4-2 (RDA) - B7-23 (RDA) Below 1 Ω
      D4-3 (PRG) - B7-24 (PRG)
      D4-2 (RDA) or B7-23 (RDA) - Body ground 10 kΩ or higher
      D4-3 (PRG) or B7-24 (PRG) - Body ground

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

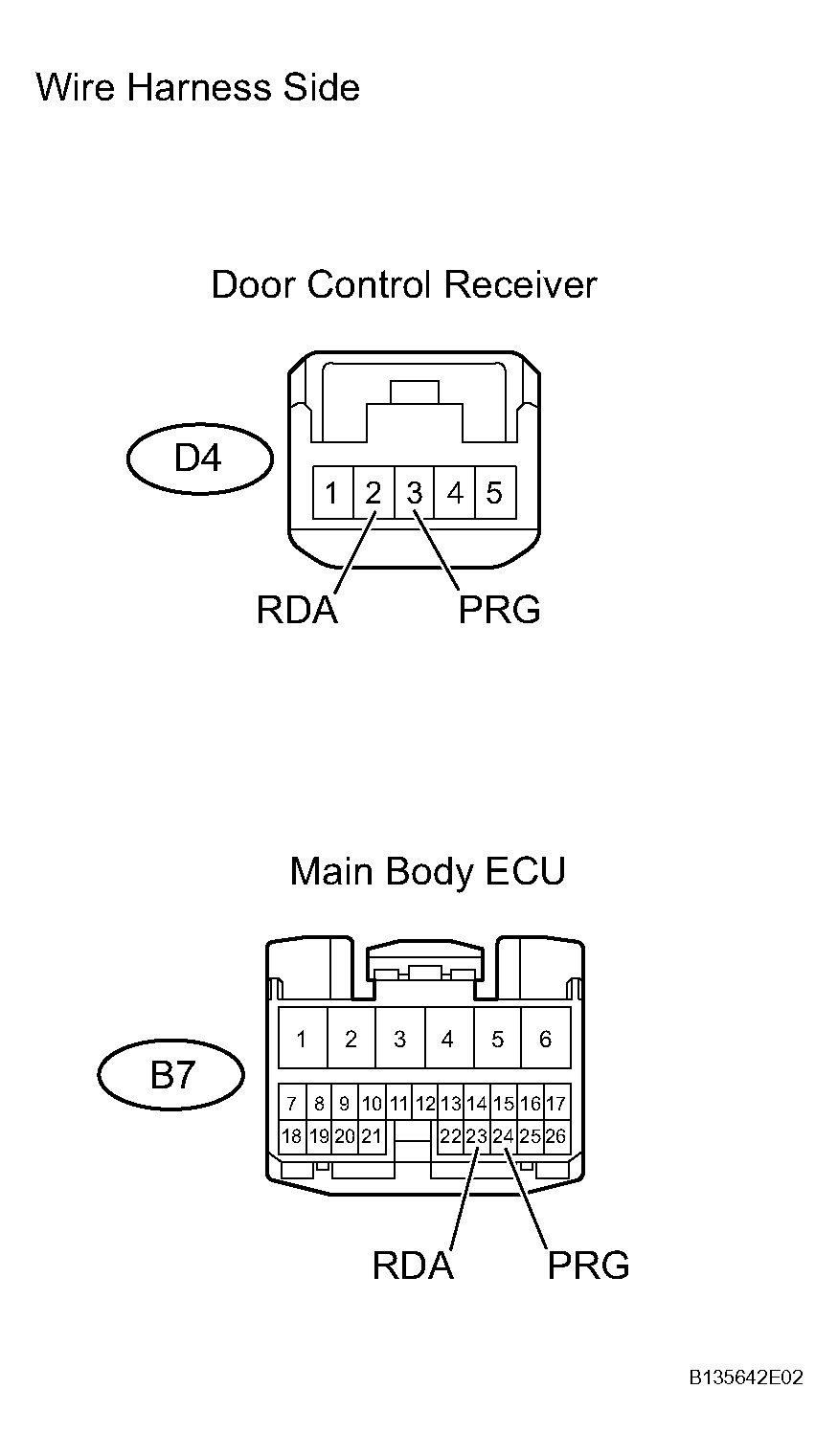

    Fig 6: Identifying D4 Receiver Connector And B7 ECU Connector Terminal
    G04476065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  14. CHECK DOOR CONTROL RECEIVER (OUTPUT)
    1. Reconnect the D4 receiver connector.
    2. Measure the voltage of the connector.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      D4-2 (RDA) - Body ground Transmitter switch OFF (power switch OFF and all doors closed) Below 1 V
      Transmitter switch ON (power switch OFF and all doors closed) Alternating between 6 to 7 V and below 1 V

    OK : REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY (MAIN BODY ECU)

    Fig 7: Identifying Door Control Receiver Connector Terminal
    G04476066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : GO TO NEXT STEP

  15. CHECK DOOR CONTROL TRANSMITTER (OPERATION)
    1. Temporarily replace the door control receiver with a new or normally functioning one.
    2. Check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.

      OK : Doors can be locked and unlocked with transmitter.

    NG : REPLACE DOOR CONTROL RECEIVER

    OK : END (DOOR CONTROL TRANSMITTER IS DEFECTIVE)
