WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System)
›
Only Wireless Control Function is Inoperative
›
Wiring Diagram
Only Wireless Control Function is Inoperative: Wiring Diagram

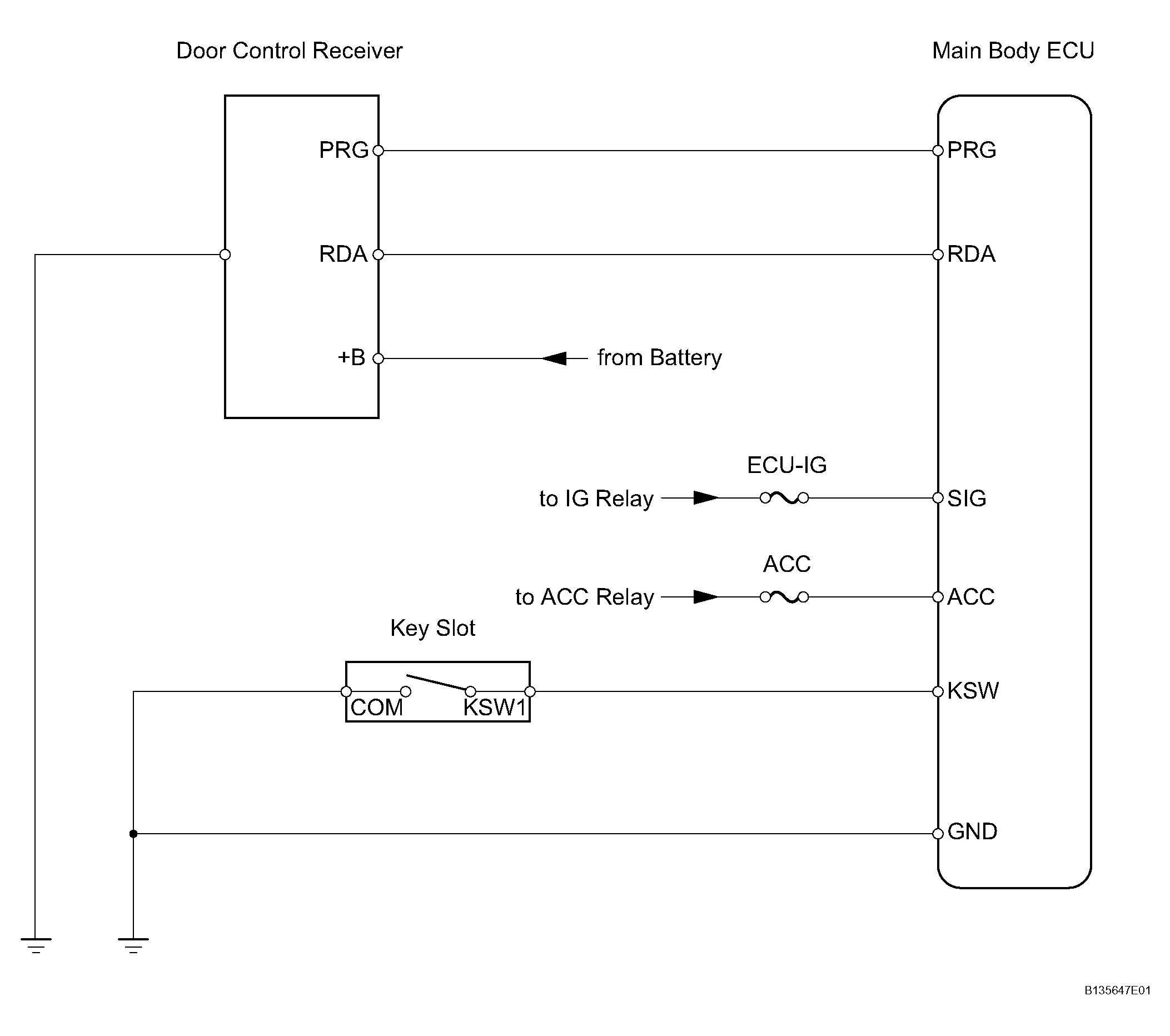

Fig 1: Door Control Receiver - Wiring Diagram
