Fuel Lid Lock Control: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT SEAT ASSEMBLY LH
    1. Remove the seat (see REMOVAL ).
  3. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  4. REMOVE REAR SIDE SEATBACK ASSEMBLY LH (See  REMOVAL  )
  5. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  6. REMOVE REAR DOOR SCUFF PLATE LH (See  REMOVAL  )
  7. REMOVE CENTER PILLAR LOWER GARNISH LH (See  REMOVAL  )
  8. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (See  REMOVAL  )
  9. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH (See  REMOVAL  )
  10. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
    1. Remove the screw while holding the lever.
    2. Disconnect the cable and remove the lever.
      Fig 1: Removing Fuel Lid Lock Open Lever Sub-Assembly
      G04477261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

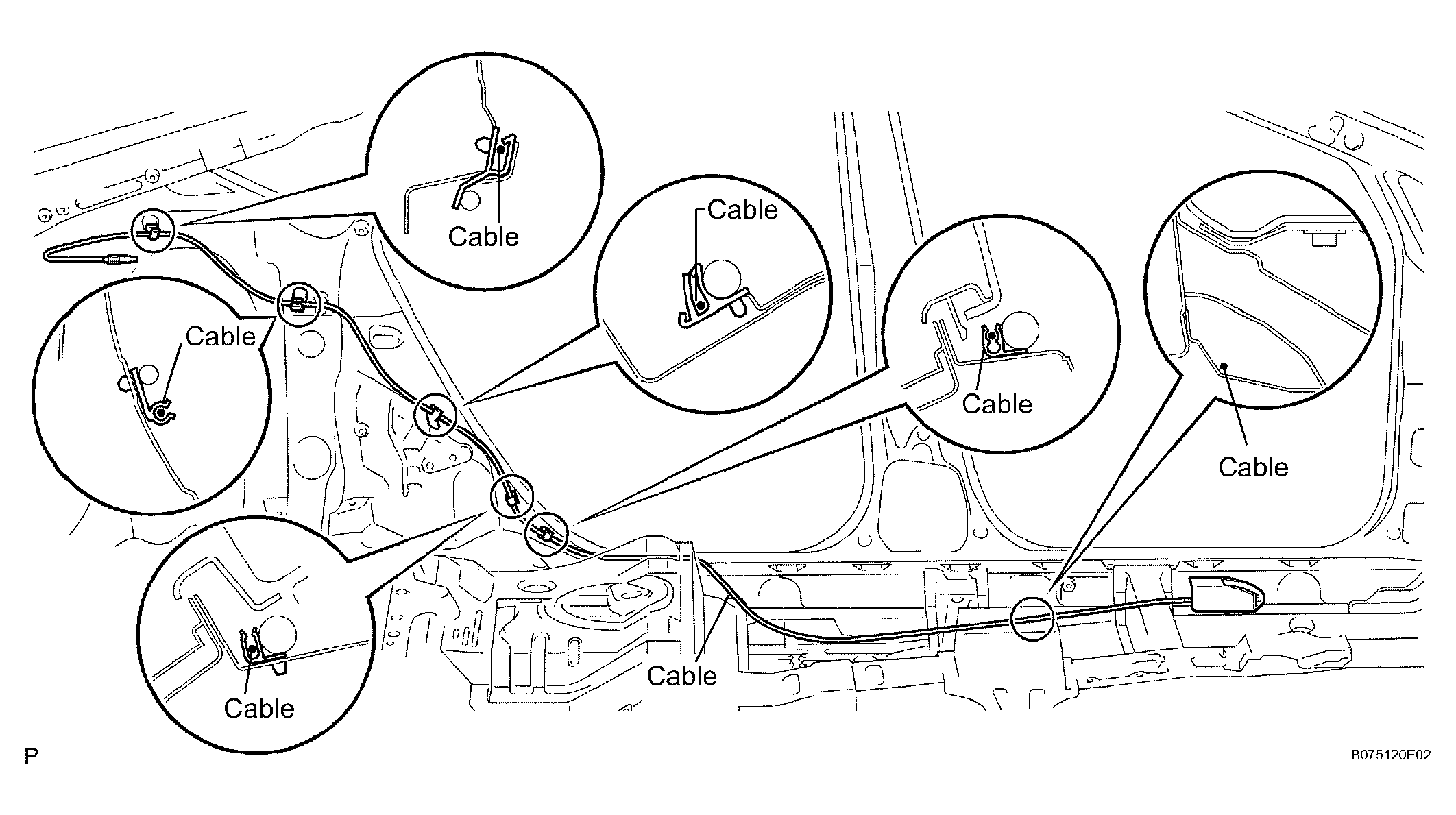

    1. Disconnect the cable from the clamps at the location shown in Fig 2.
      Fig 2: Disconnecting Cable From Clamps
      G04477262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

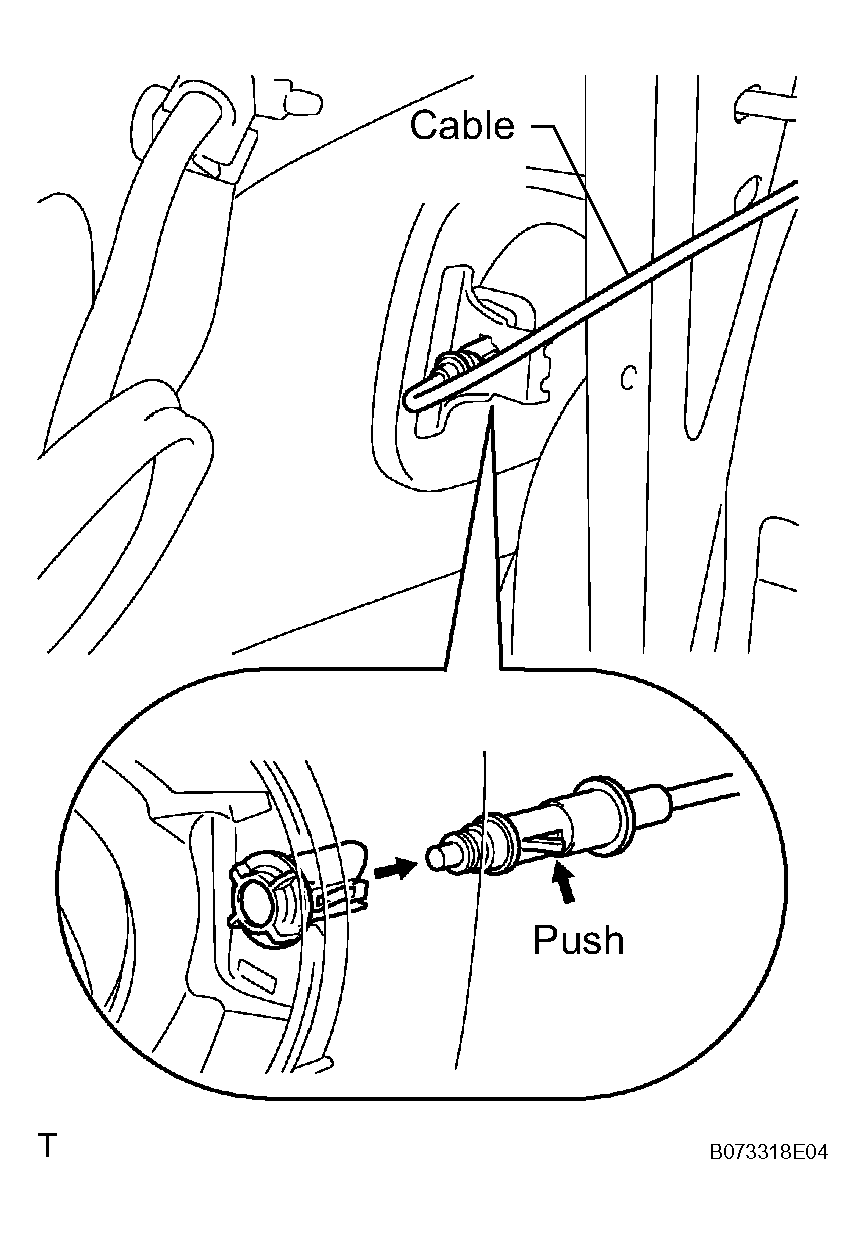

    2. Push the claw and pull out the cable.
      Fig 3: Pulling Out Cable
      G04477263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

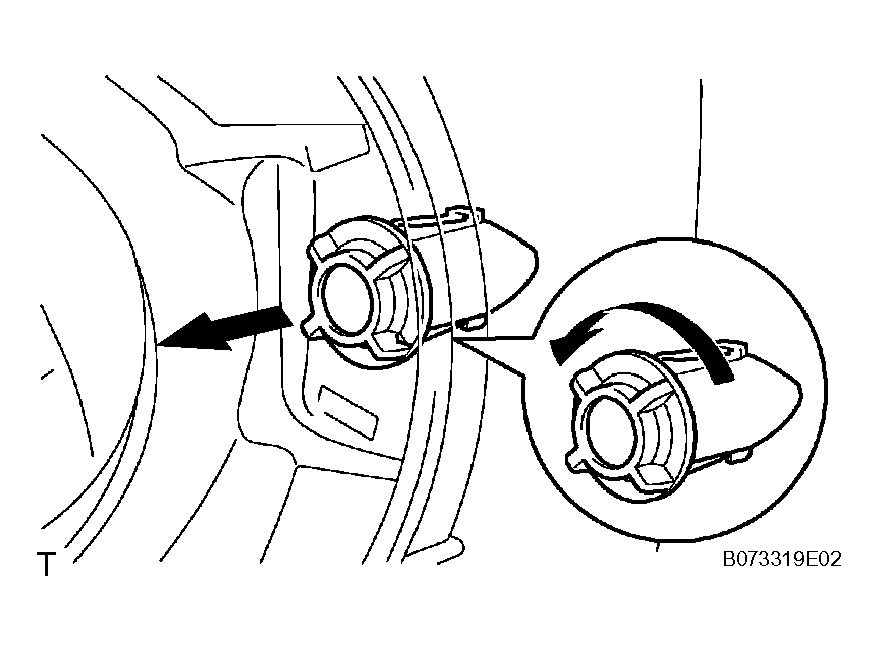

    1. Turn the lock retainer counterclockwise and remove the lock retainer as shown in Fig 4.
      Fig 4: Removing Fuel Filler Opening Lid Lock Retainer
      G04477264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
