Back Window Fix Glass
›
Components
Back Window Fix Glass: Components

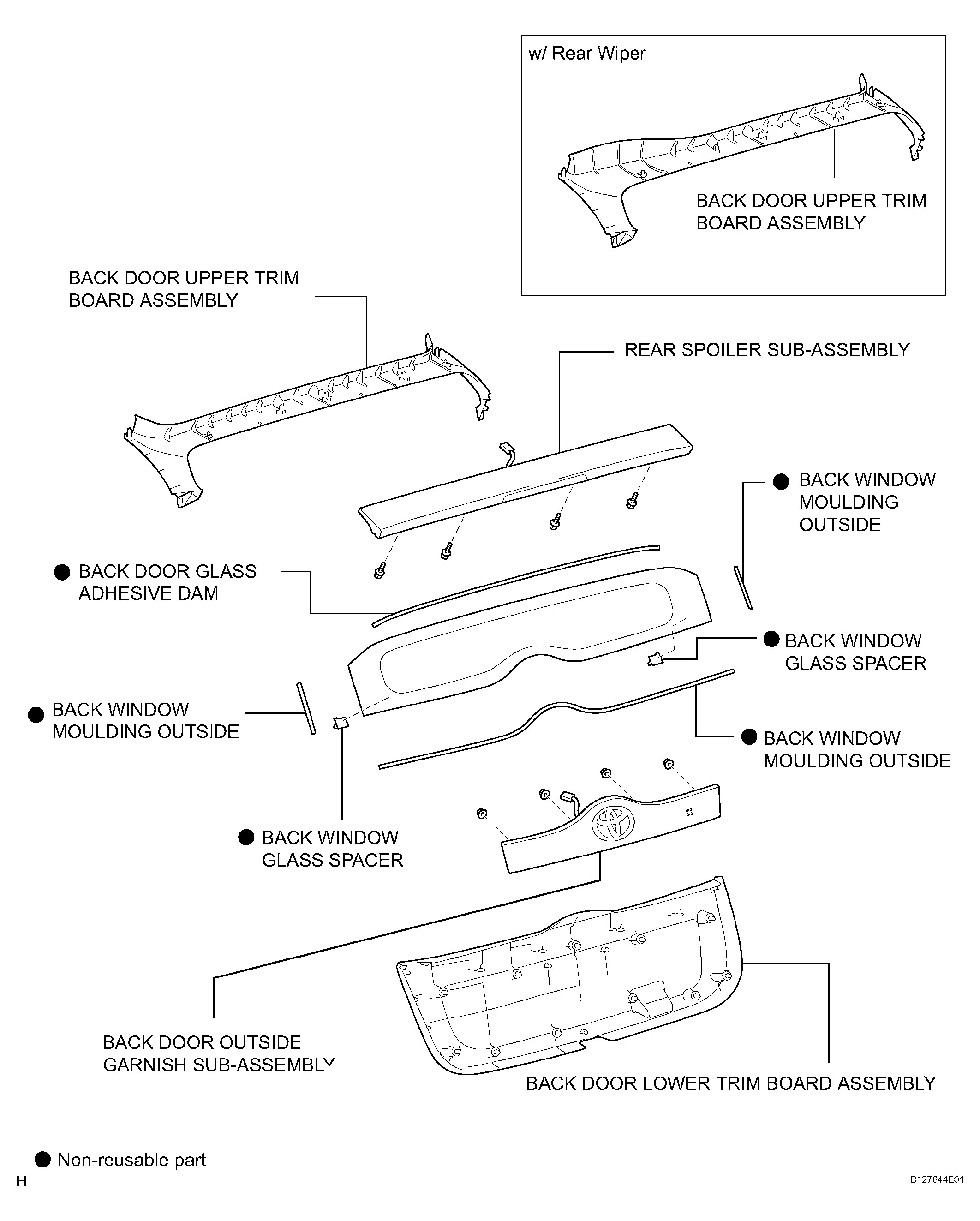

Fig 1: Identifying Back Window Fix Glass Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
