Power Window Control System
›
Manual Up / Down Function does not Operate on Rear RH Only
›
Wiring Diagram
Manual Up / Down Function does not Operate on Rear RH Only: Wiring Diagram

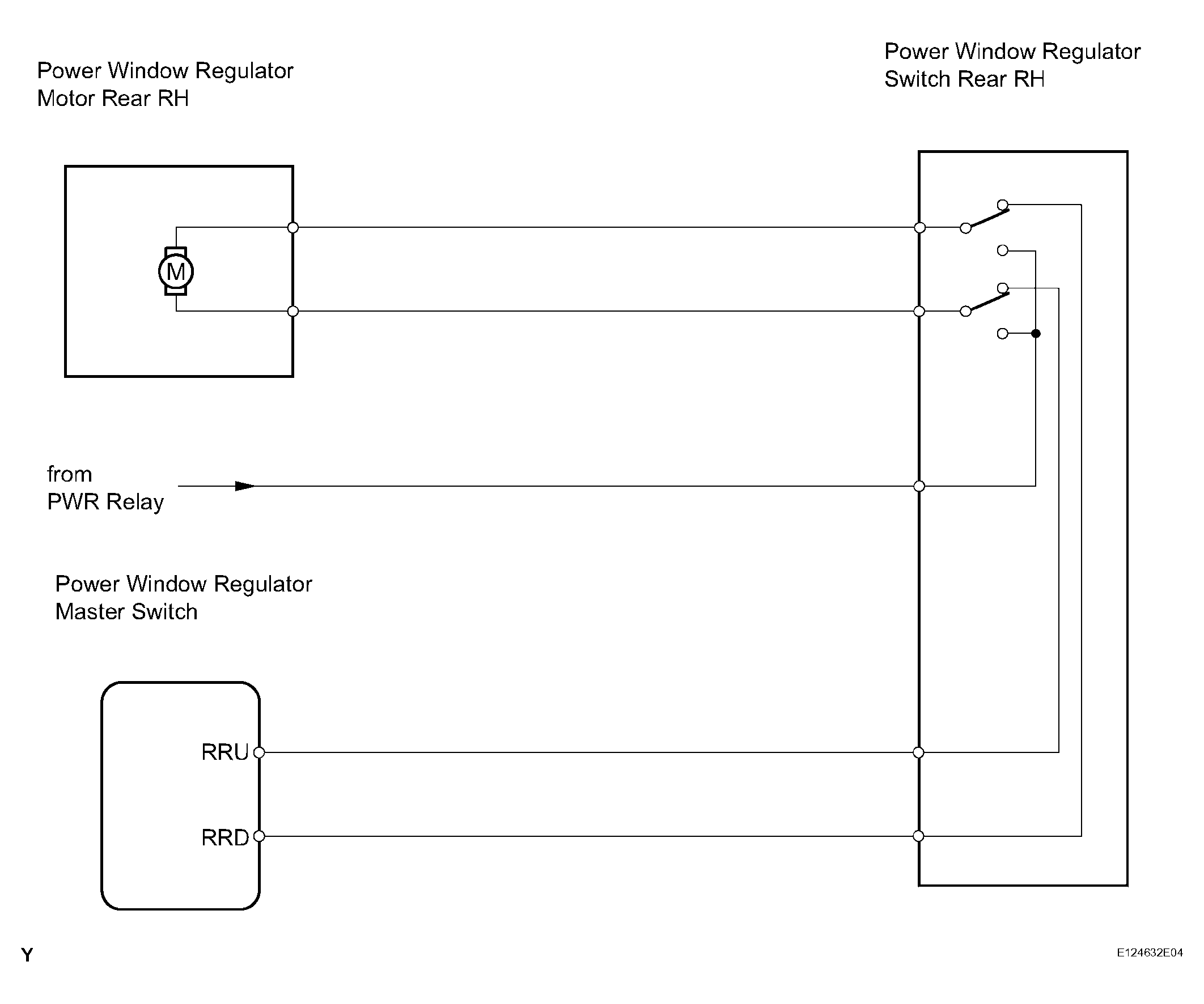

Fig 1: Manual Up/Down Function Not Operate On Rear RH Only - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
