Power Window Control System
›
Parts Location
Parts Location

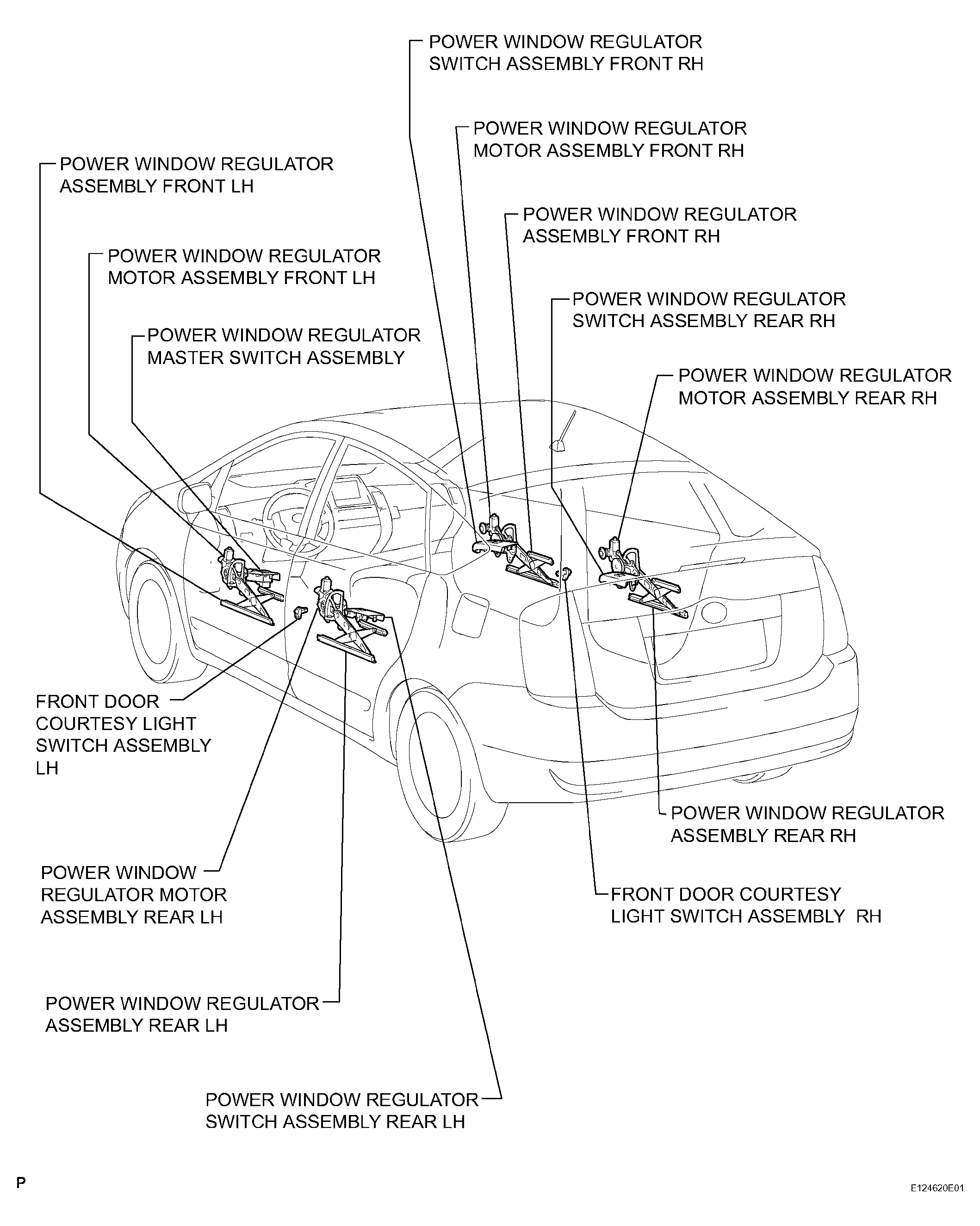

Fig 1: Locating Power Window Control System Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

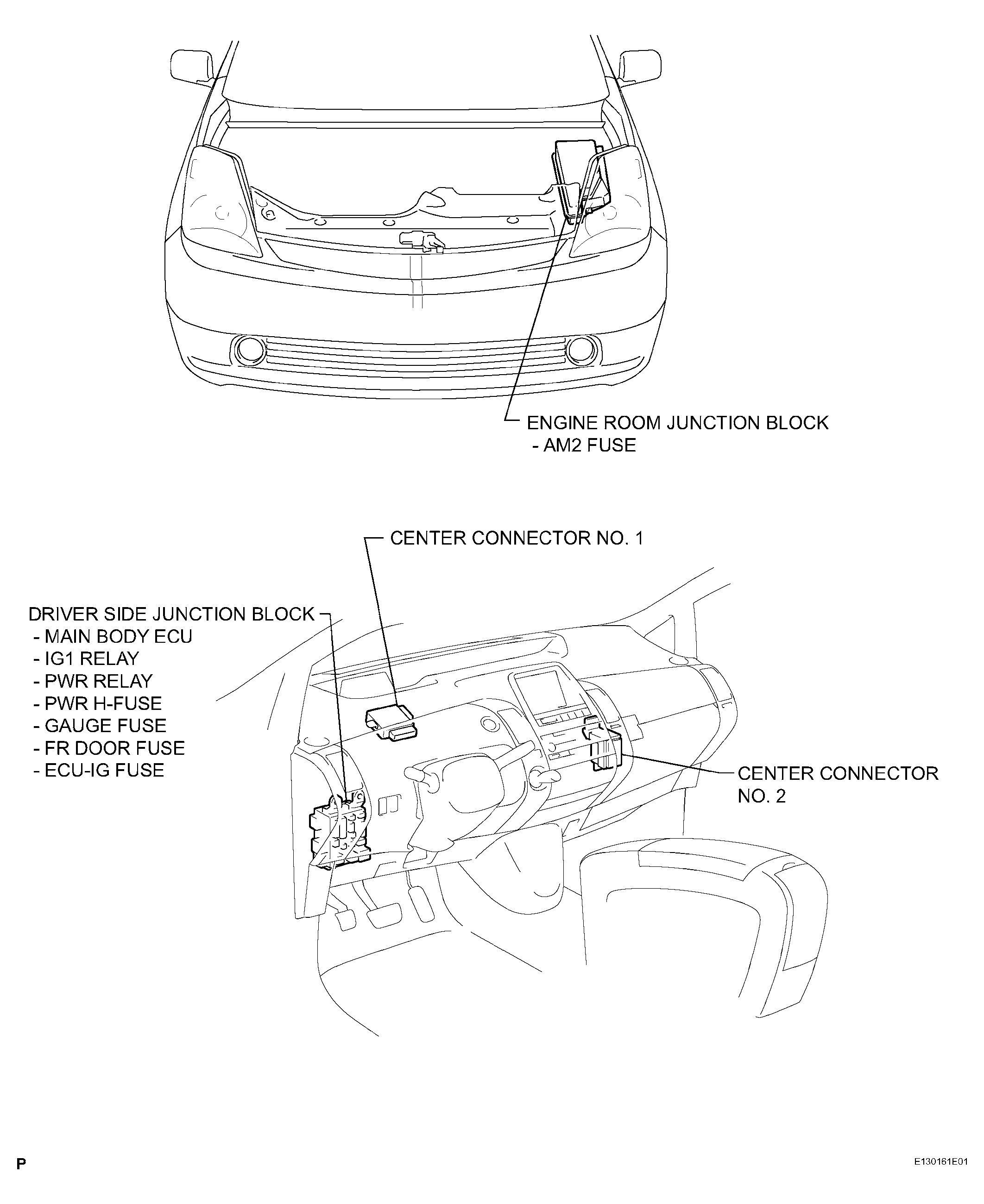

Fig 2: Locating Power Window Control System Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
