Automatic Glare-Resistant EC Mirror
›
Notes
Automatic Glare-Resistant EC Mirror: Notes

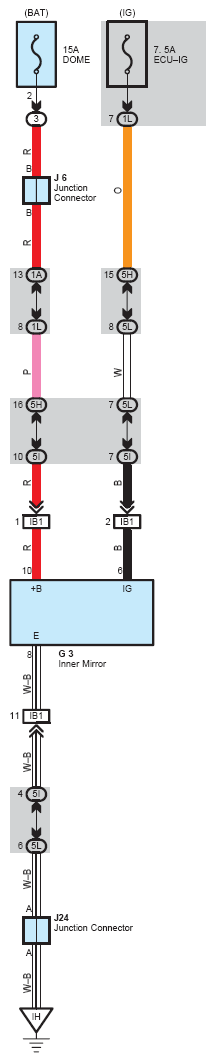

Fig 1: Automatic glare-resistant ec mirror system wiring diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
