Headlight Beam Level Control: Notes

Fig 1: Headlight beam level control system wiring diagram (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

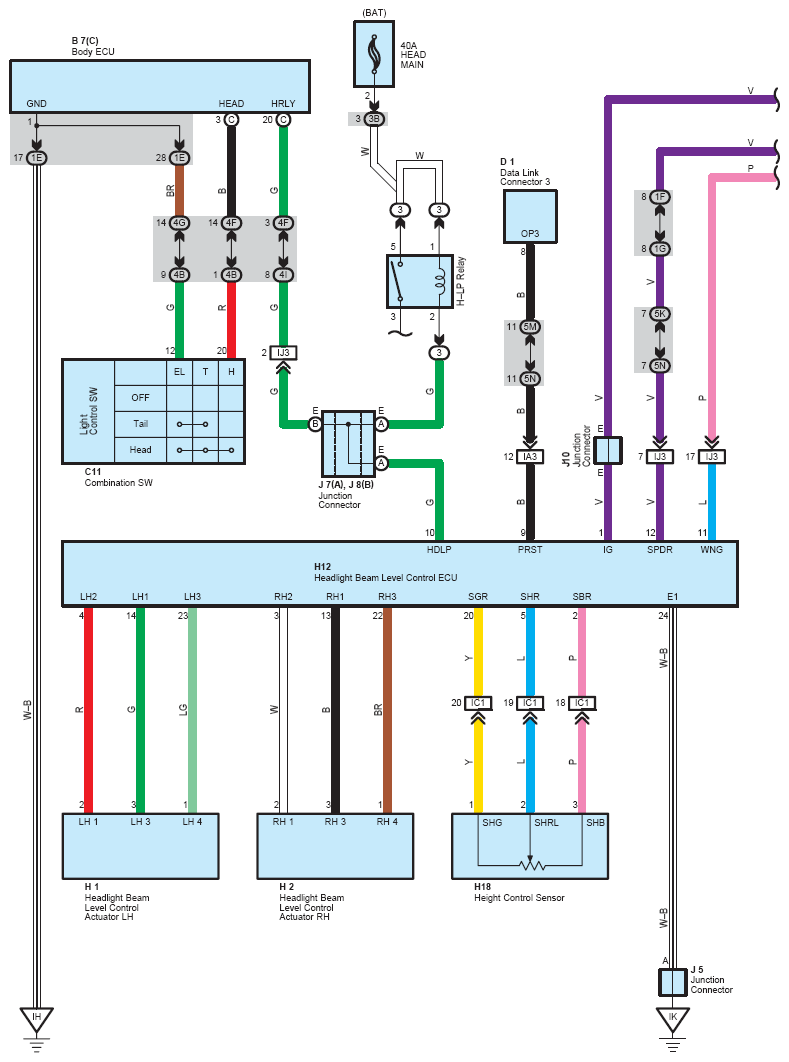

Fig 2: Headlight beam level control system wiring diagram (2 of 2)
