OEM System Circuits: Horn: Notes

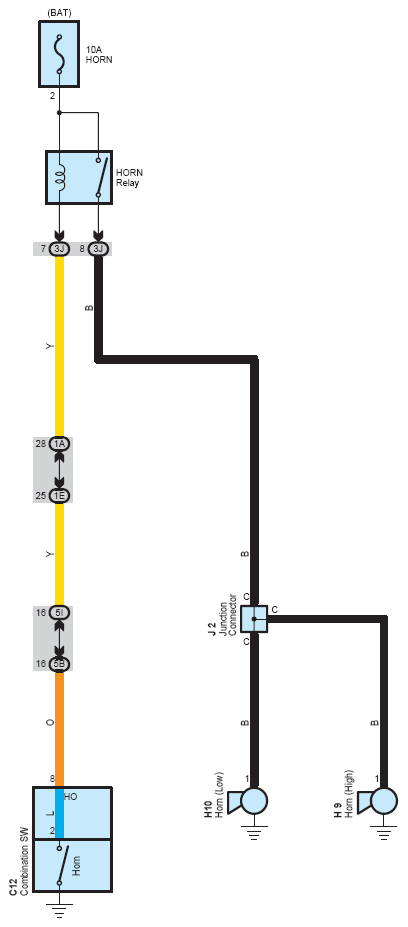

Fig 1: Horn system wiring diagram

G08866151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
