OEM System Circuits: Ignition: Notes

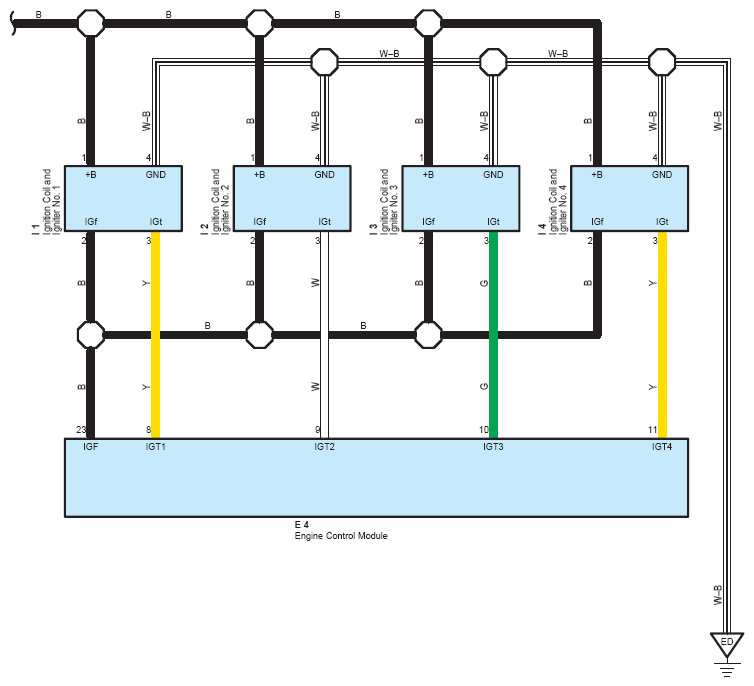

Fig 1: Ignition system wiring diagram (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

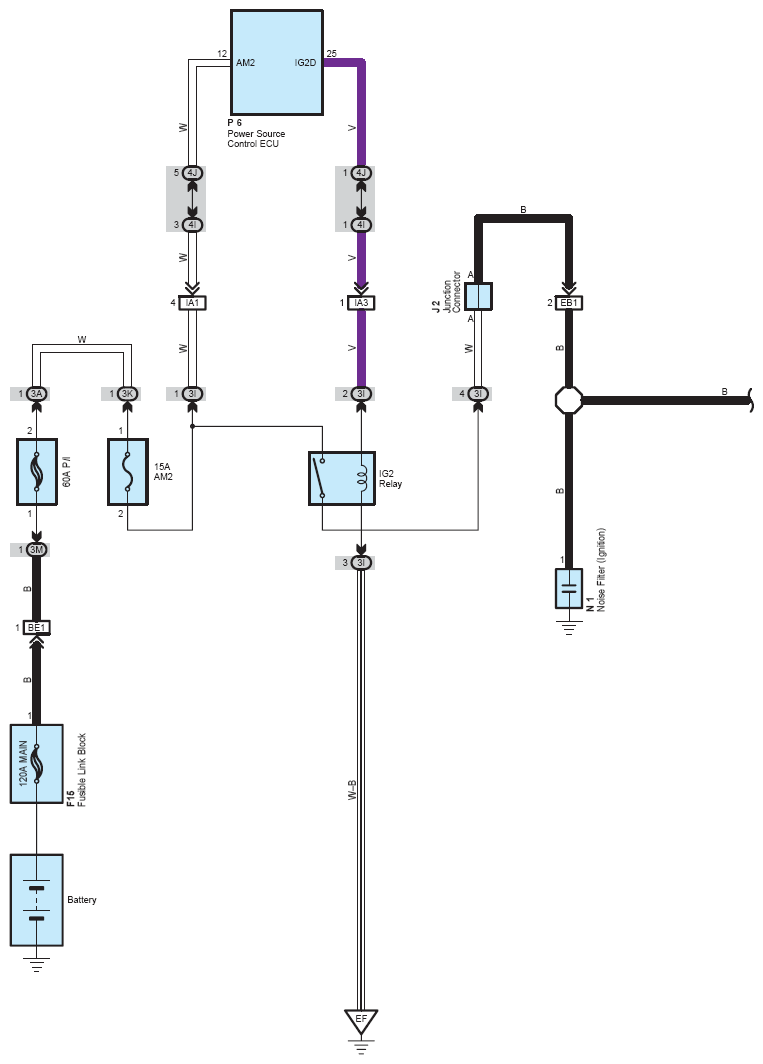

Fig 2: Ignition system wiring diagram (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
