Luggage Compartment Door Opener: Notes

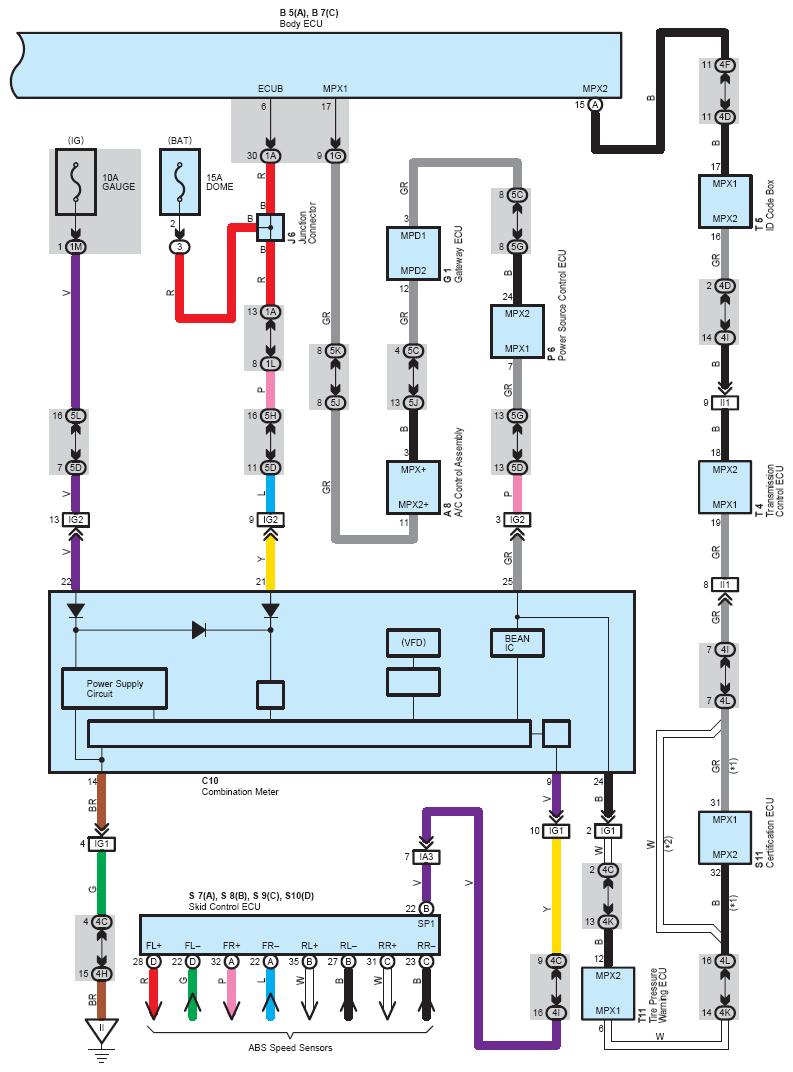

Fig 1: Luggage compartment door opener system wiring diagram (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

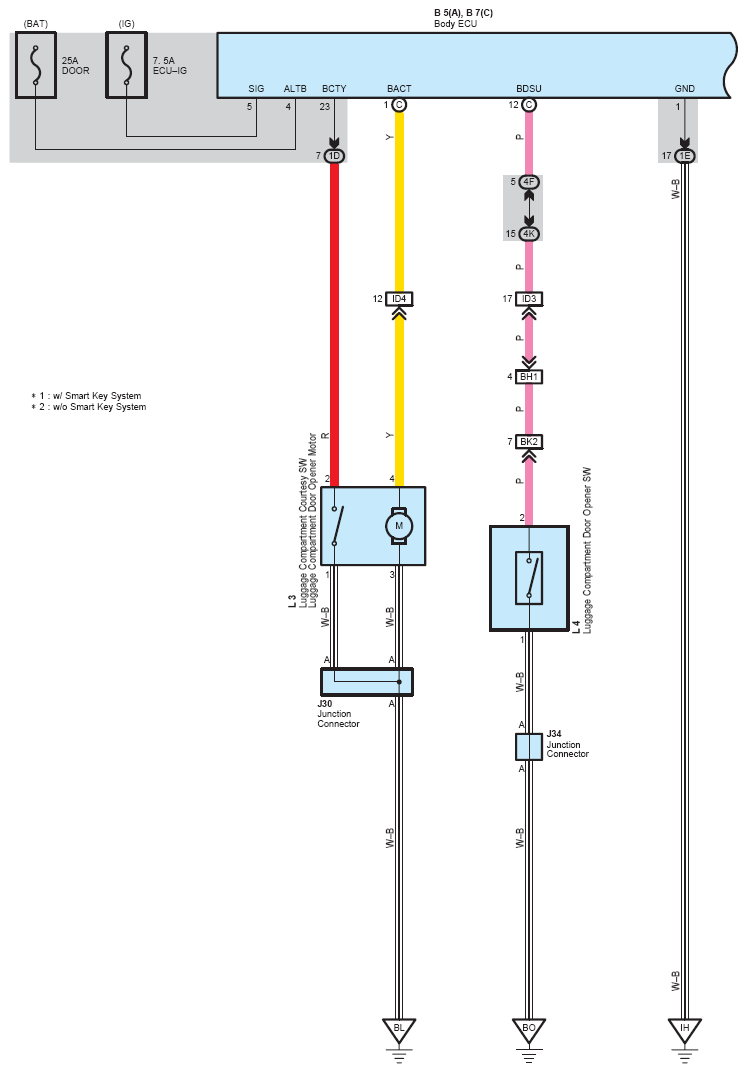

Fig 2: Luggage compartment door opener system wiring diagram (2 of 2)
