Multiplex Communication System - Bean Bus: Notes

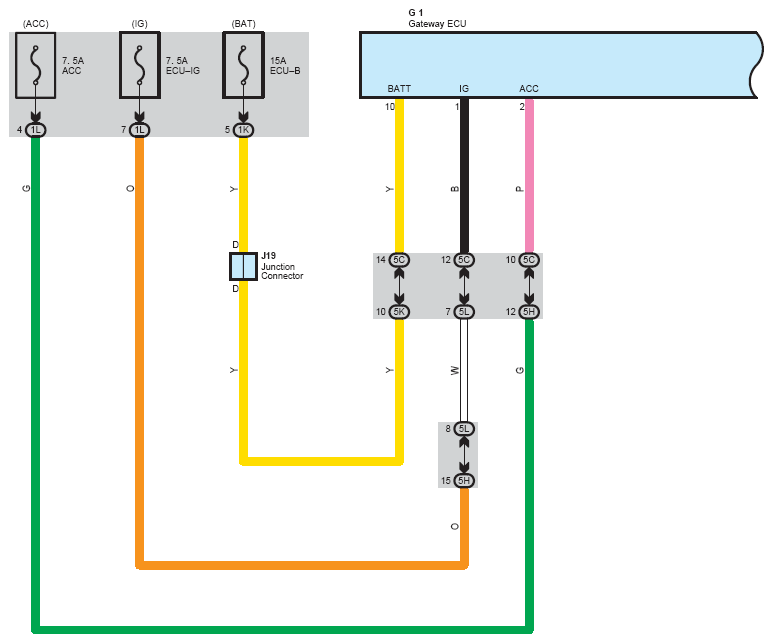

Fig 1: Multiplex communication system - bean bus system wiring diagram (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

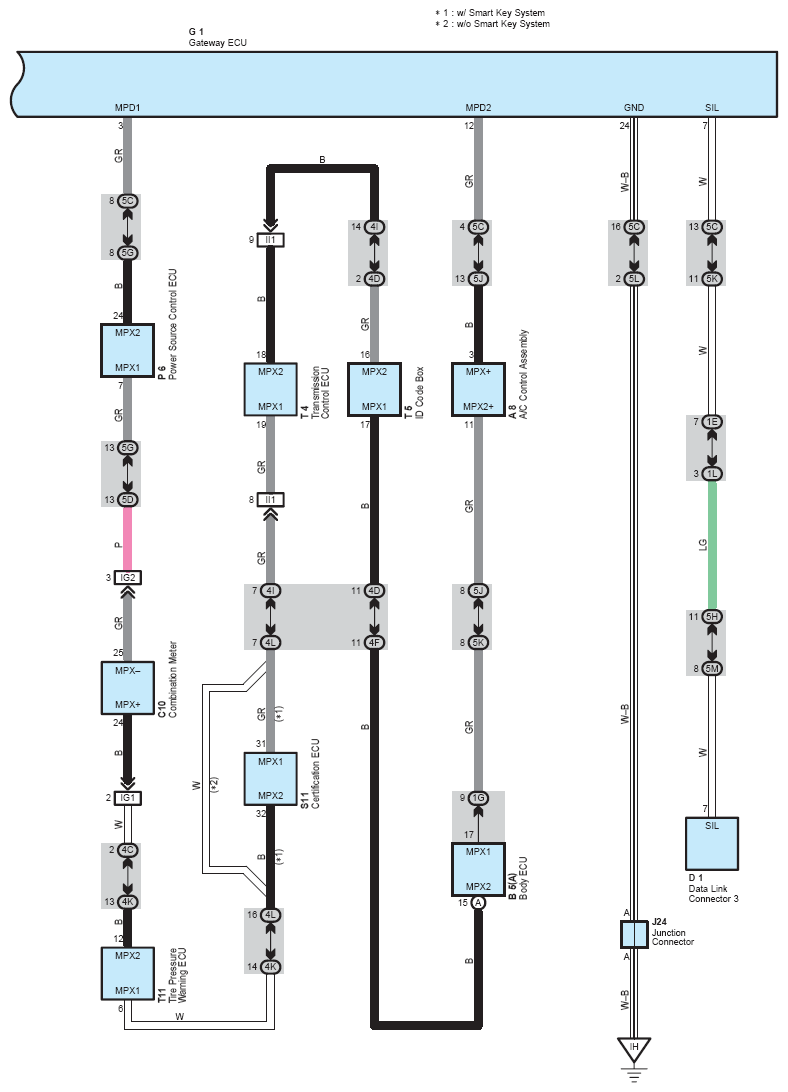

Fig 2: Multiplex communication system - bean bus system wiring diagram (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
