2007
›
Prius Base
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Multiplex Communication System - Can Bus
›
Notes
Multiplex Communication System - Can Bus: Notes

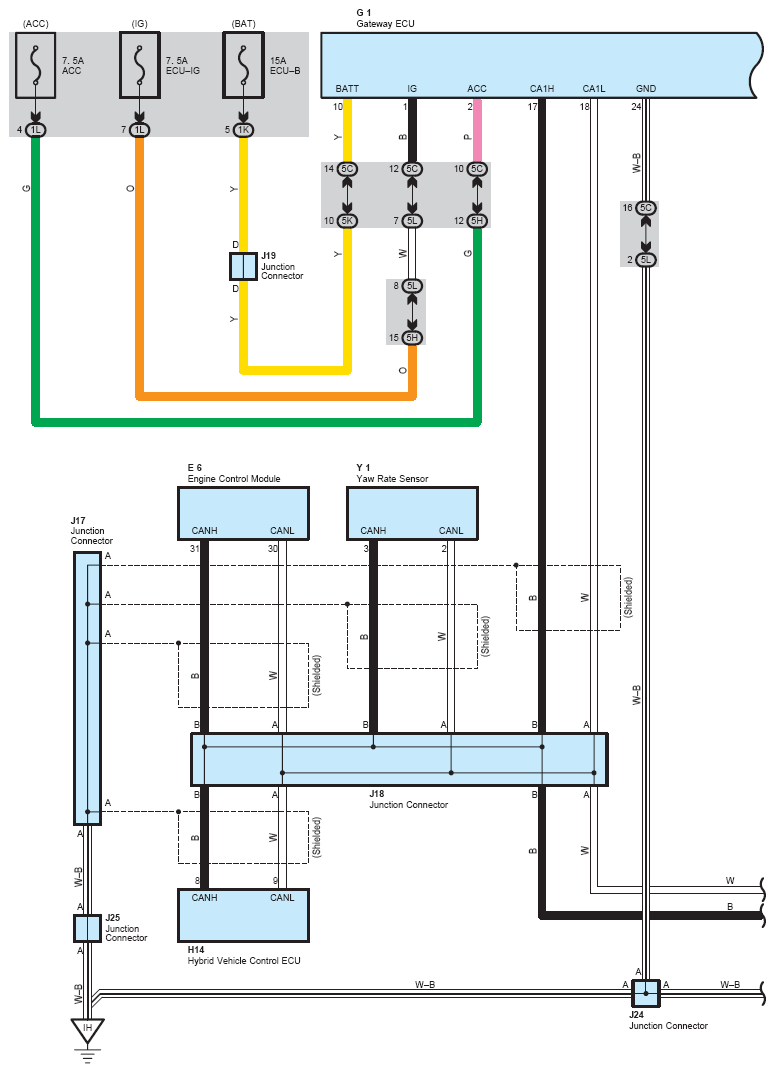

Fig 1: Multiplex communication system - can bus system wiring diagram (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

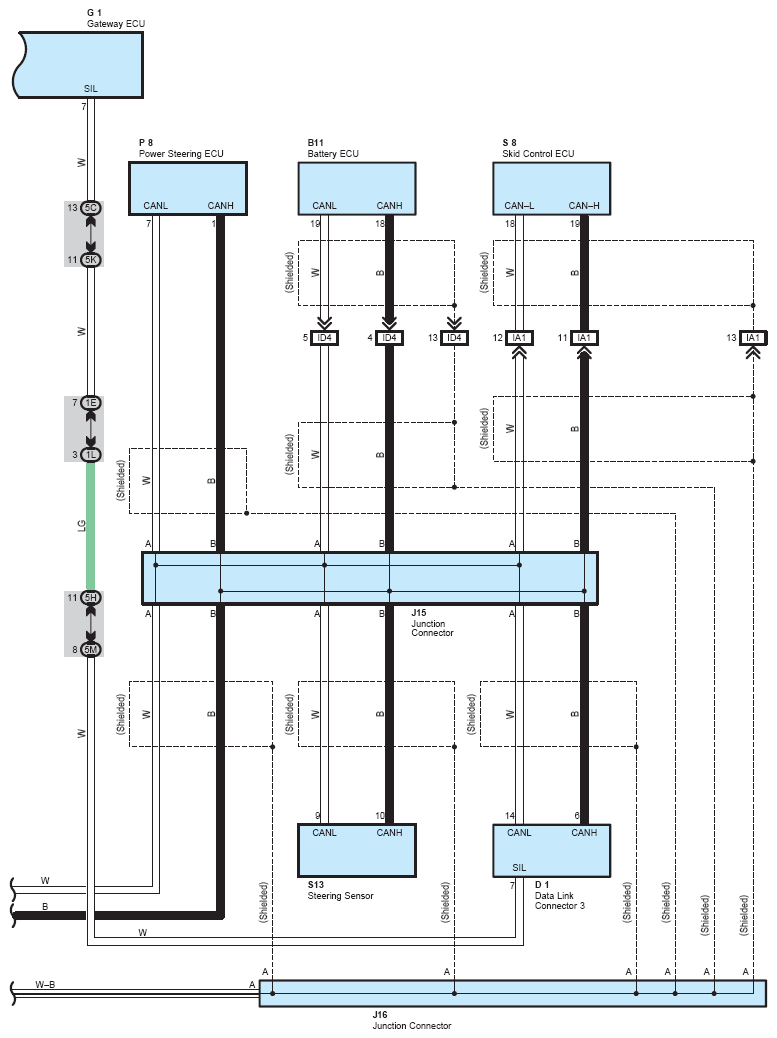

Fig 2: Multiplex communication system - can bus system wiring diagram (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
