Power Outlet: Notes

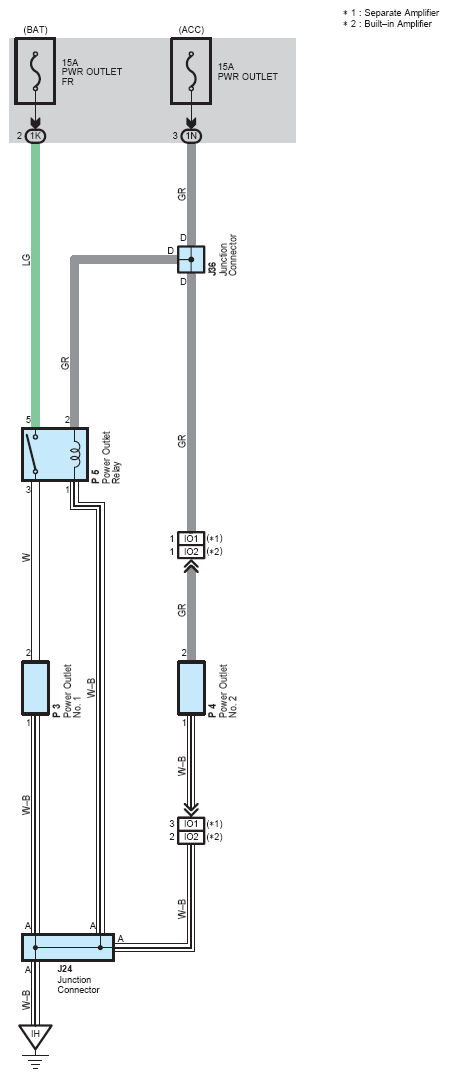

Fig 1: Power outlet system wiring diagram
G08866153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
