Power Window: Notes

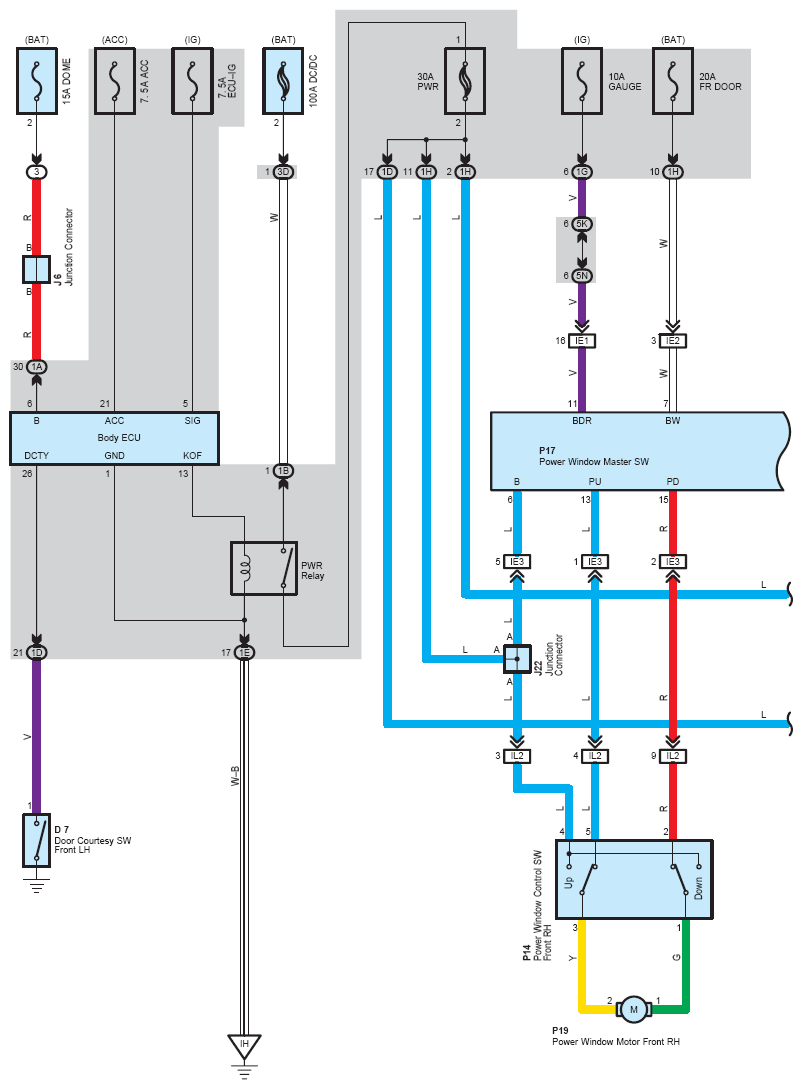

Fig 1: Power window system wiring diagram (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

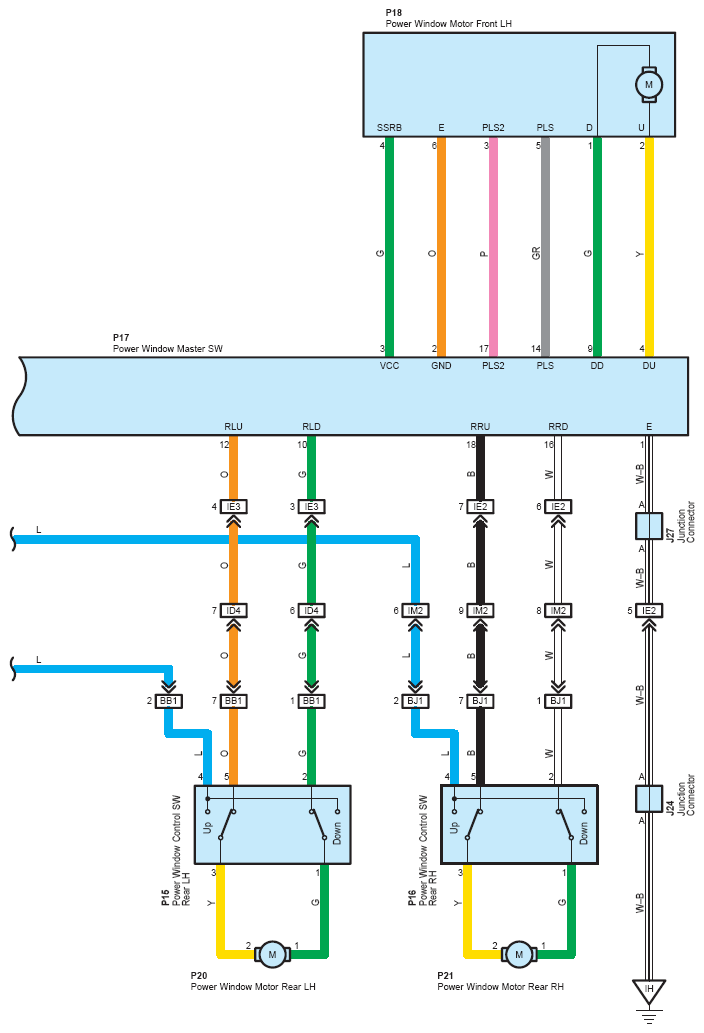

Fig 2: Power window system wiring diagram (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
