Radiator Fan And Condenser Fan: Notes

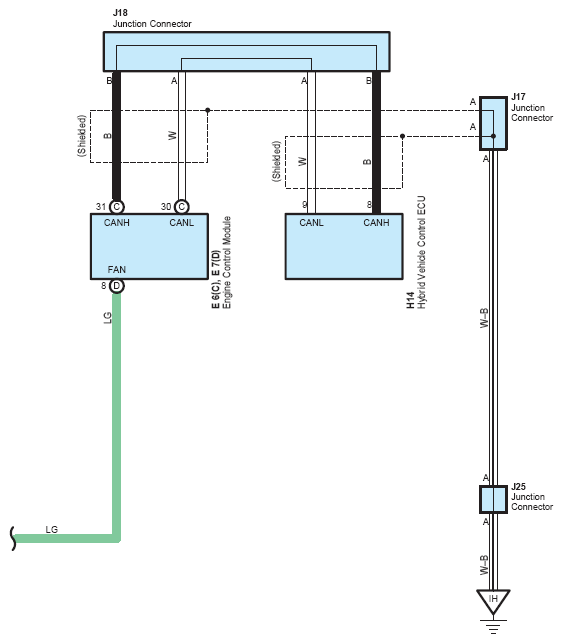

Fig 1: Radiator fan and condenser fan system wiring diagram (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

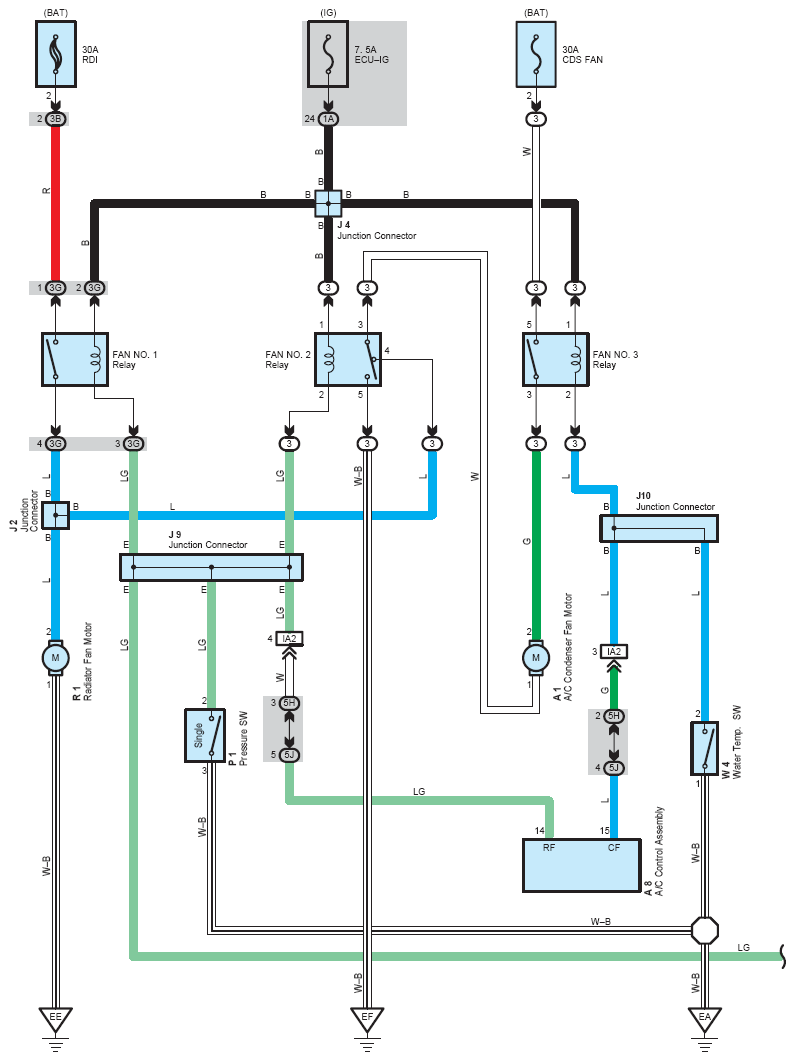

Fig 2: Radiator fan and condenser fan system wiring diagram (2 of 2)
