Remote Control Mirror: Notes

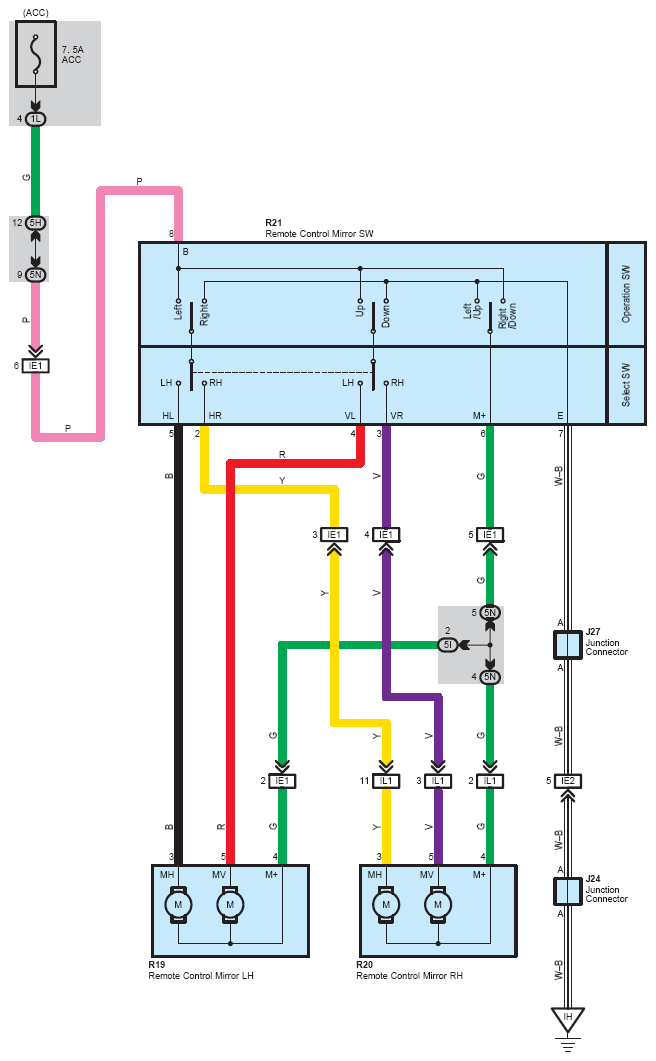

Fig 1: Remote control mirror system wiring diagram

G08866154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
