Seat Belt Warning: Notes

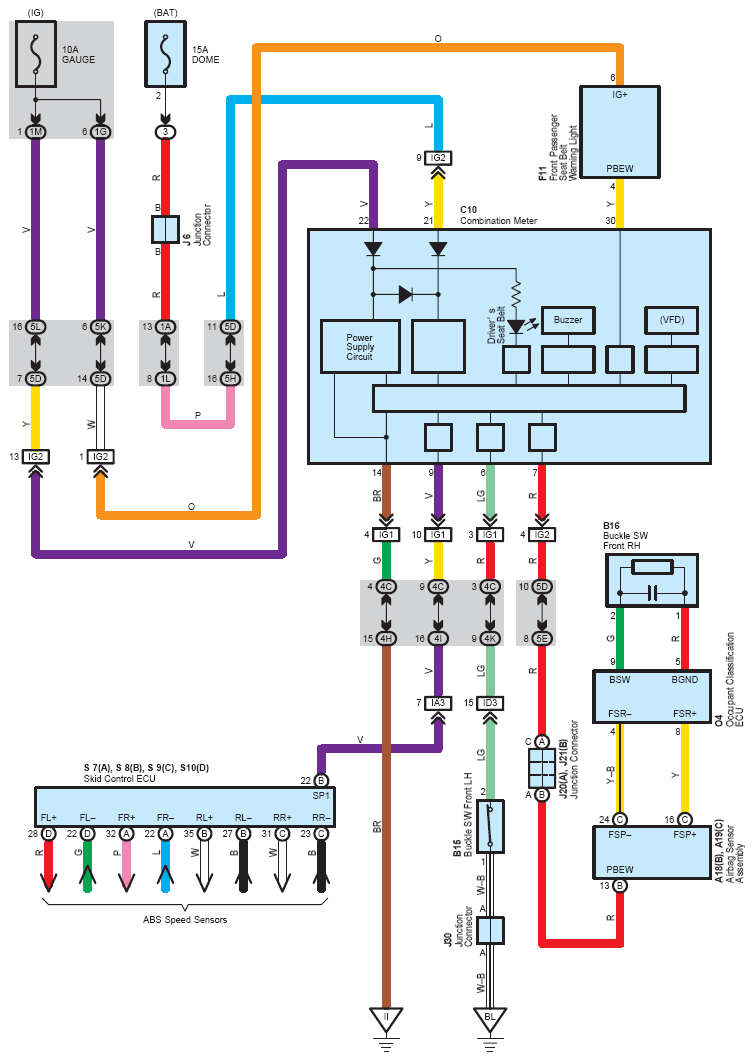

Fig 1: Seat belt warning system wiring diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
