Stop Light: Notes

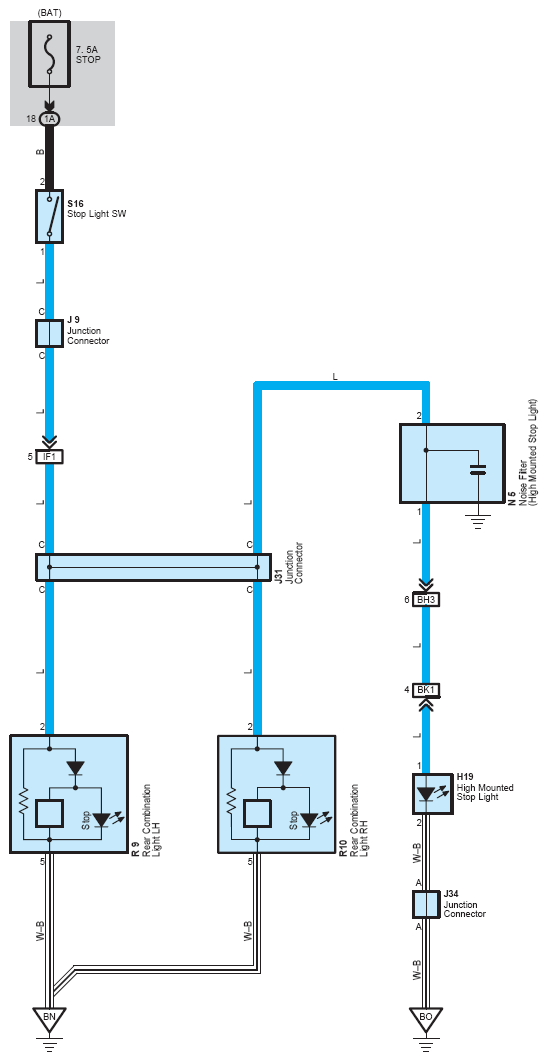

Fig 1: Stop light system wiring diagram
G08866068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
