Tire Pressure Warning System
›
Notes
Tire Pressure Warning System: Notes

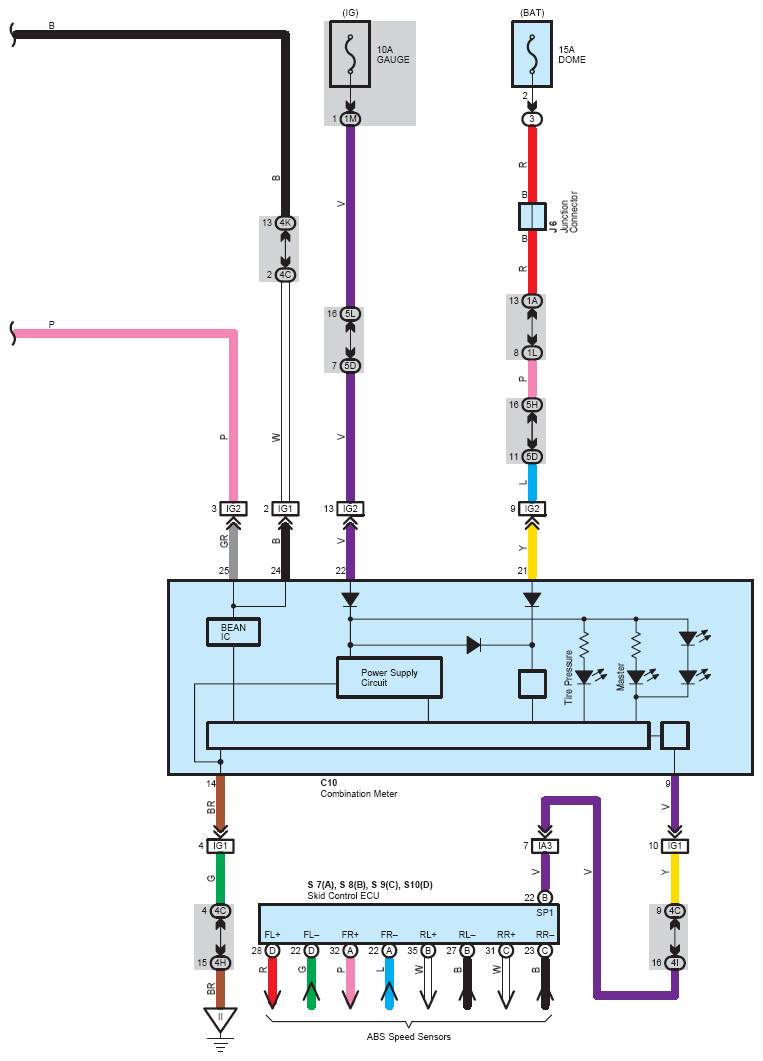

Fig 1: Tire pressure warning system wiring diagram (1 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

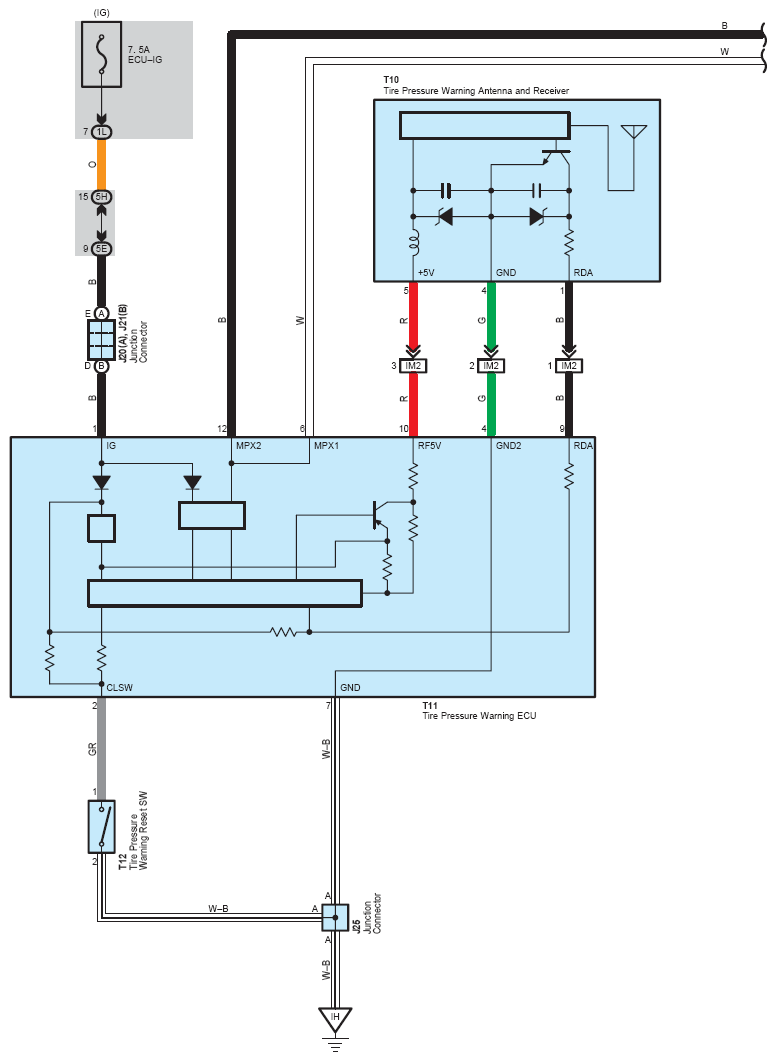

Fig 2: Tire pressure warning system wiring diagram (2 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

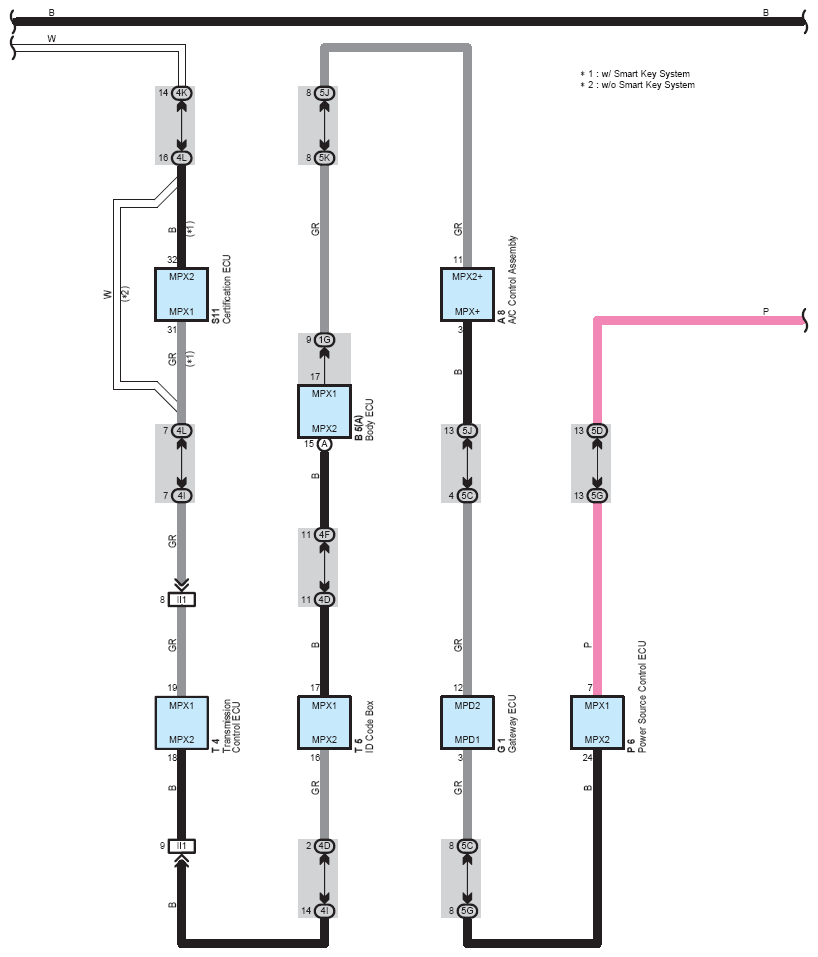

Fig 3: Tire pressure warning system wiring diagram (3 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
