Rear Console Box: Removal

REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
1. Pull the console panel sub-assembly upper upwards and disengage the 2 claws.
2. Detach the 4 clips and remove the console panel.

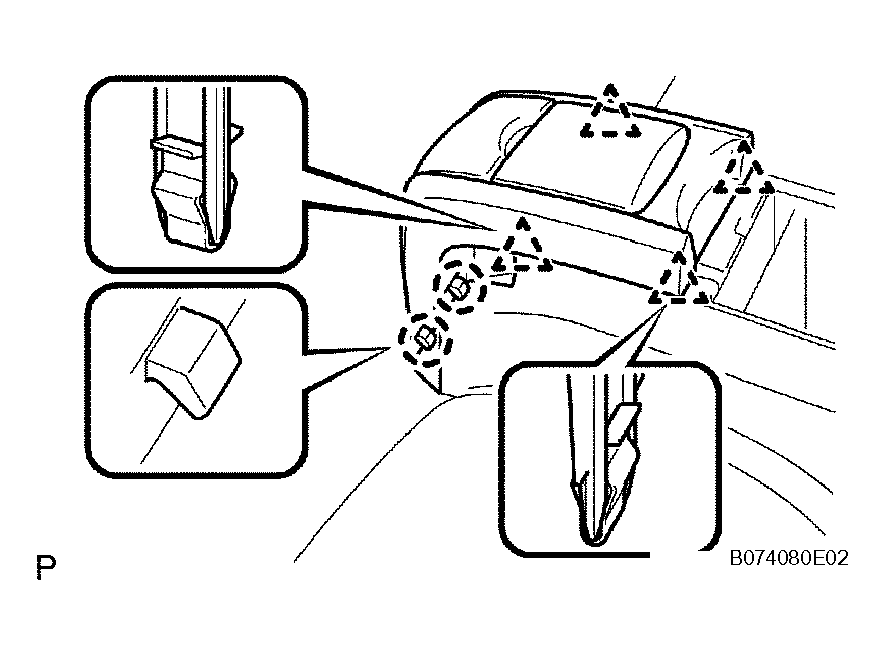

  Fig 1: Detaching Clips And Removing Console Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 screws and instrument panel cup holder.

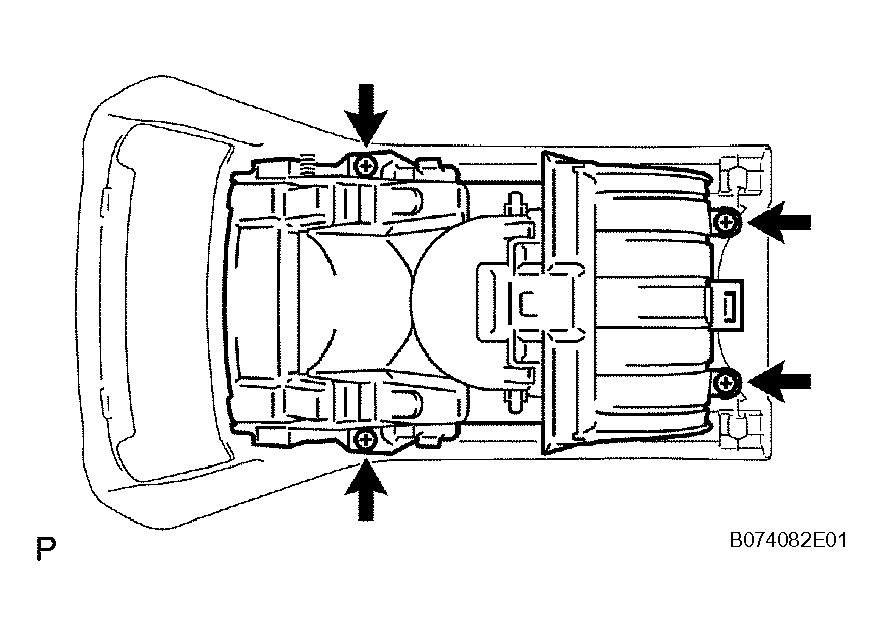

  Fig 2: Removing Screws And Instrument Panel Cup Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE BOX POCKET
REMOVE CONSOLE BOX CARPET
REMOVE CONSOLE REAR END PANEL SUBASSEMBLY
1. Pull up the console rear end panel sub-assembly in the direction indicated by the arrow to detach the 6 clips, and remove the console rear end panel.

  Fig 3: Detaching Clips And Removing Console Rear End Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 screws and rear console box cup holder.

  Fig 4: Removing Screws And Rear Console Box Cup Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
1. Remove the 2 screws, 2 bolts and console box.

  Fig 5: Removing Screws, Bolts And Console Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
