Key Slot: Installation

INSTALL KEY SLOT
1. Install the key slot with the 2 screws.
INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
1. Connect the connector.
2. Attach the claw and 5 clips to install the instrument panel register.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

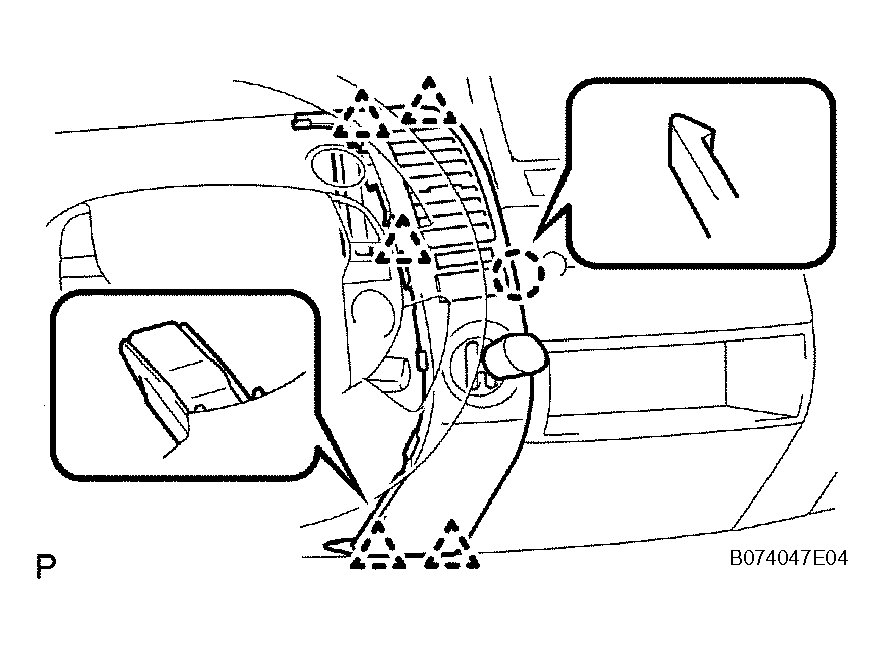

  Fig 1: Attaching Claw And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
