Diagnosis System

DESCRIPTION
1. Smart key system data and its Diagnosis Trouble Codes (DTCs) can be read through the Data Link Connector 3 (DLC3). When the system seems to be malfunctioning, use the intelligent tester to check for malfunctions and perform repairs.

CHECK DLC3

HINT:

The vehicle uses the ISO 15765-4 communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.

Fig 1: Checking DLC3 Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TERMINAL CONDITION SPECIFICATION

Symbol	Terminal No.	Name	Reference terminal	Result	Condition
SIL	7	Bus "+" line	5 - Signal ground	Pulse generation	During transmission
CG	4	Chassis ground	Body ground	Below 1 Ω	Always
SG	5	Signal ground	Body ground	Below 1 Ω	Always
BAT	16	Battery positive	Body ground	11 to 14 V	Always

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

HINT:

Connect the cable of the intelligent tester (with CAN VIM) to the DLC3, turn the power switch ON (IG) and attempt to use the intelligent tester. If the display informs that a communication error has occurred, there is a problem either with the vehicle or with the tester.

If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
If communication is still not possible when the tester is connected to another vehicle, the problem is probably in the tester itself. Consult the Service Department listed in the tester's instruction manual.

INSPECT BATTERY VOLTAGE
Standard voltage: 11 to 14 V

If the voltage is below 11 V, replace the battery before proceeding.

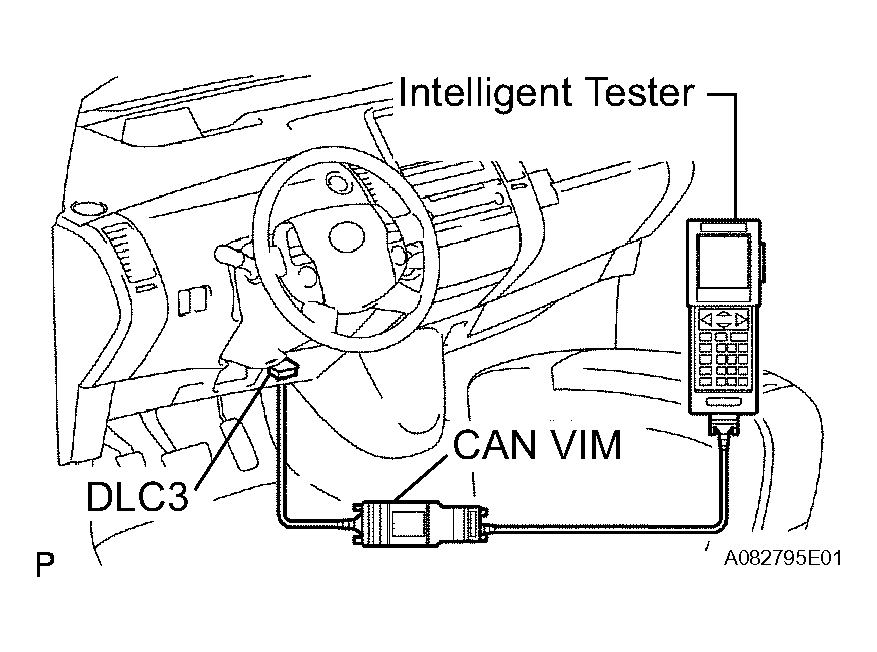

Fig 2: Connecting Intelligent Tester (With CAN VIM) To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
