DTC P0446 Evaporative Emission Control System Vent Control Circuit: Wiring Diagram

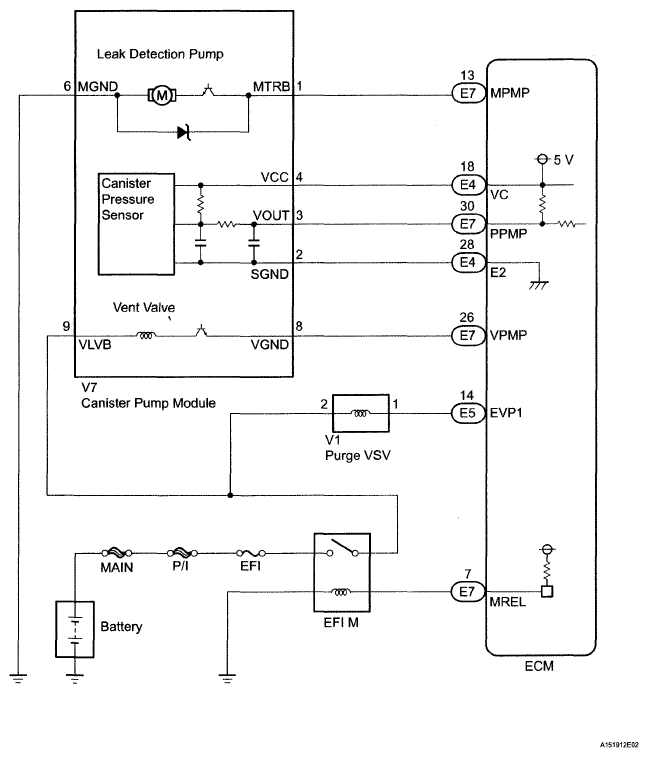

Fig 1: Leak Detection Pump - Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

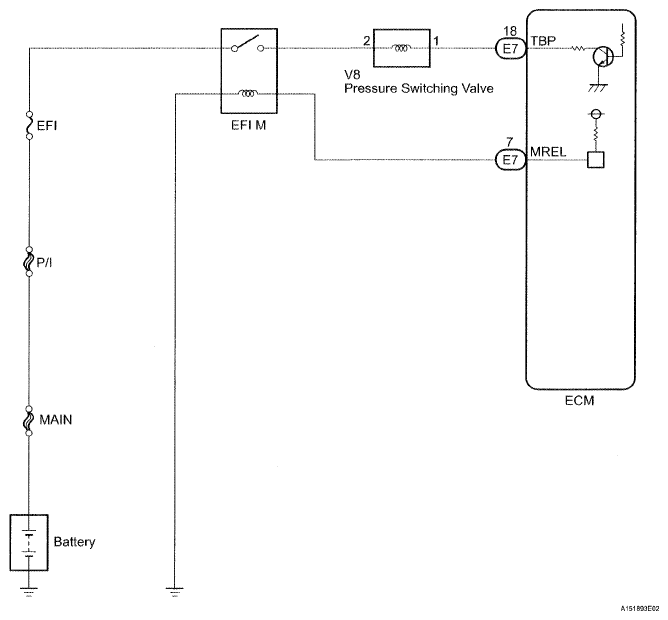

Fig 2: Leak Detection Pump - Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
