Toyota
›
2007
›
Prius Base
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
SFI System
›
Parts Location
Parts Location

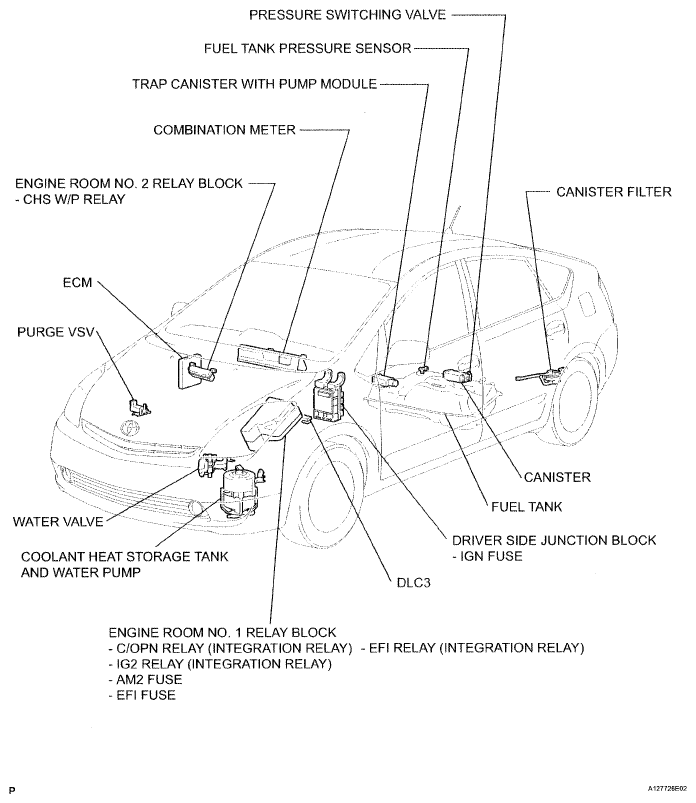

Fig 1: Identifying Engine Control System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Engine Control System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
