Ignition Coil: Components

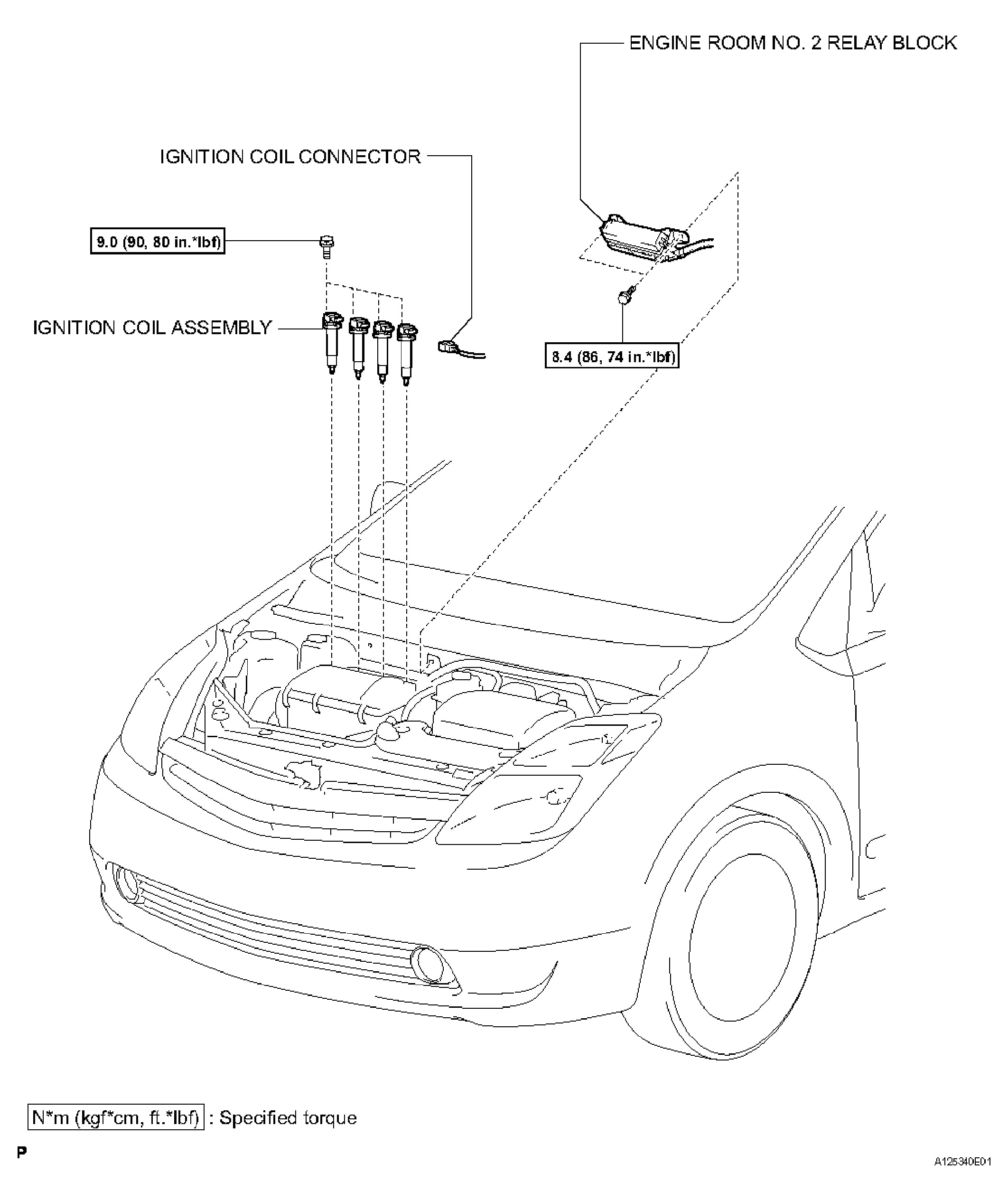

Fig 1: Ignition Coil Replacement Components -- With Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
