How To Determine Nut Strength

Nut Type

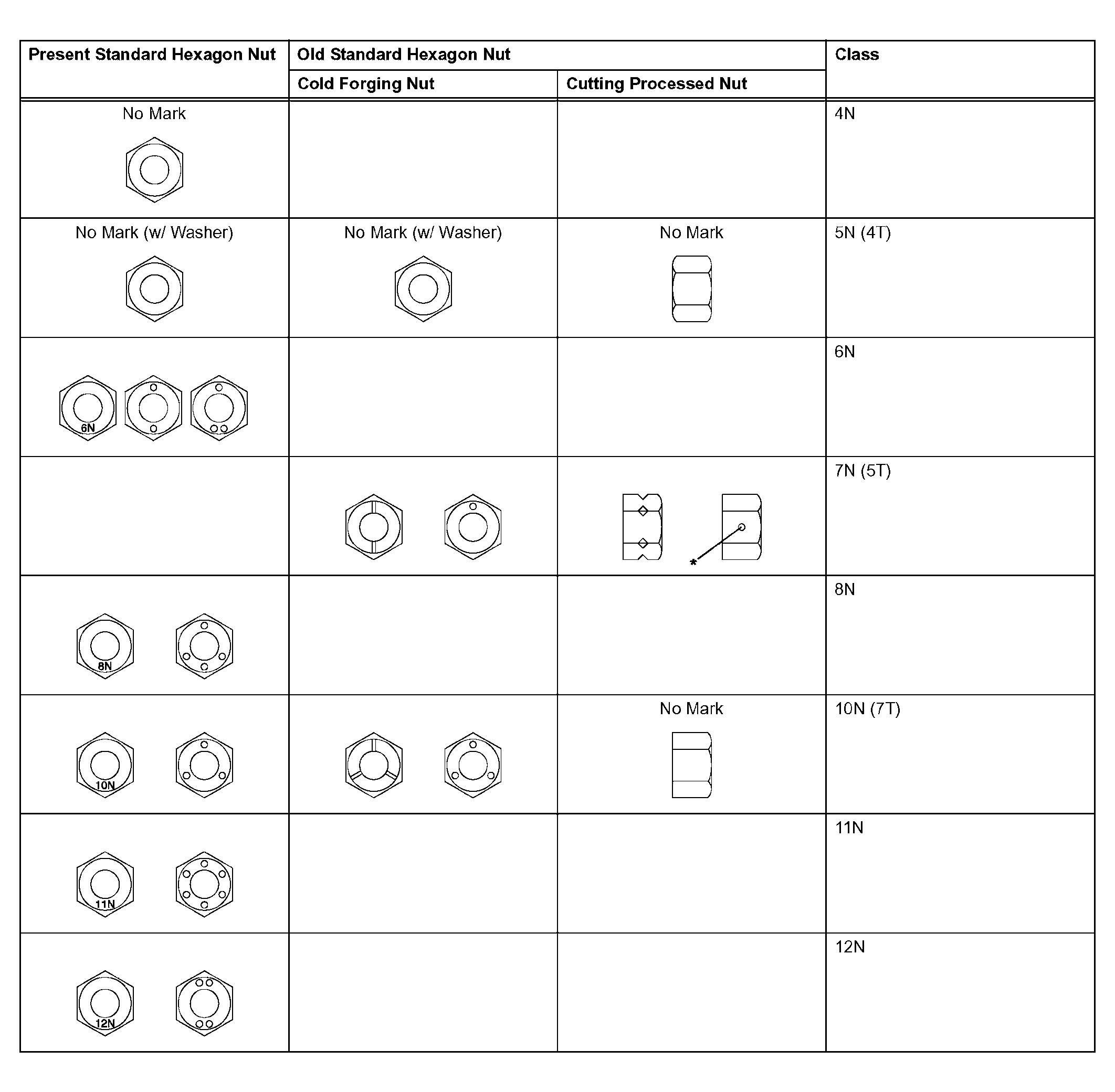

Fig 1: Present Standard Hexagon Nut Reference Chart

G04471825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*: Nut with 1 or more marks on one side surface of the nut.
Use the nut with the same number of the nut strength classification or greater than the bolt strength classification number when tightening parts with a bolt and nut.

Example:

Bolt = 4T
Nut = 4N or more
