Check Mode Procedure

LIST OF OPERATION METHODS
By operating each of the A/C control switches as shown in the diagram below, it is possible to enter the diagnostic check mode.

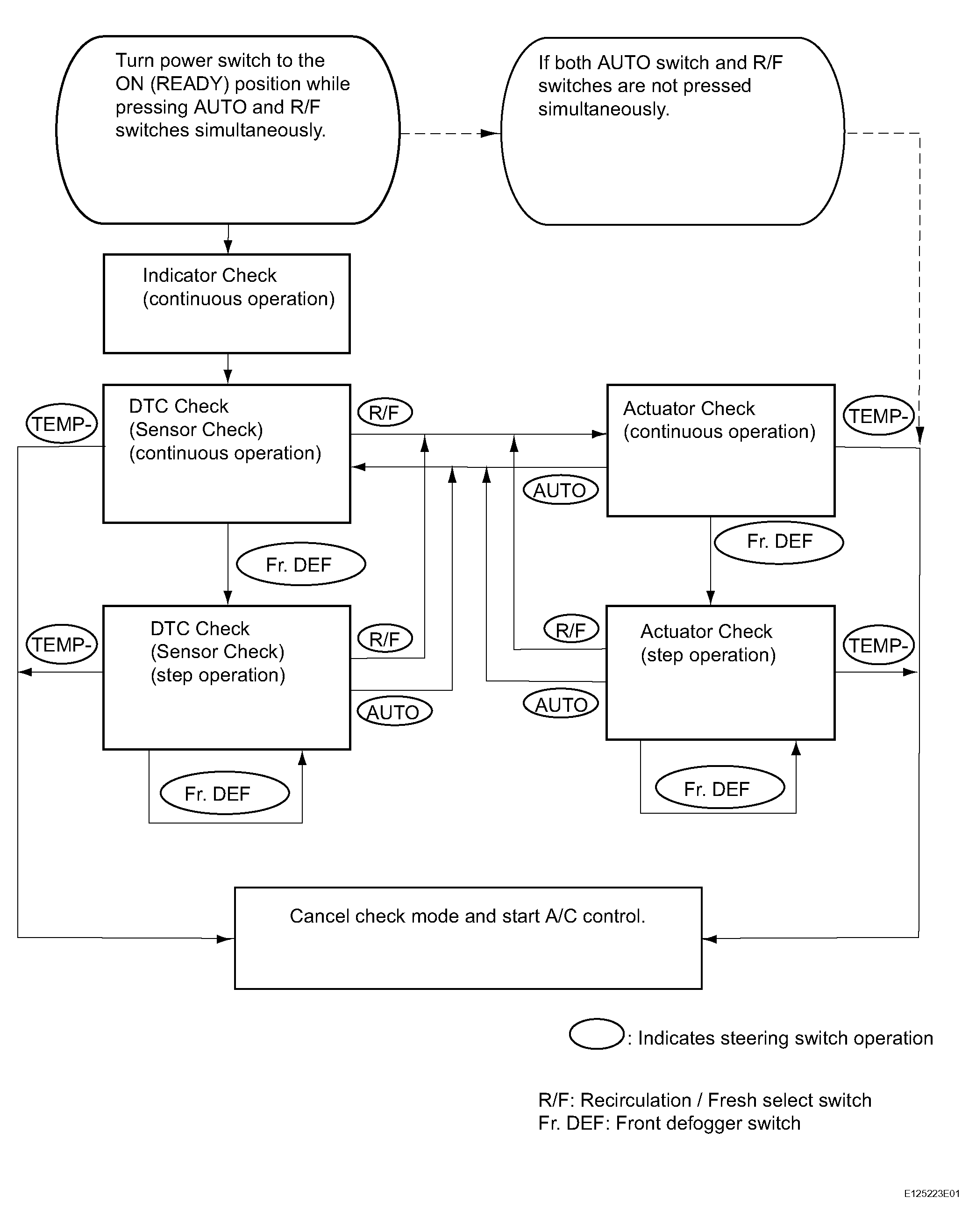

Fig 1: A/C Control Switches Operation Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INDICATOR CHECK
1. Turn the power switch OFF.
2. While pressing both the AUTO and R/F (Recirculation/ Fresh) switches on the steering switch, turn the power switch from OFF to ON (READY).

  Fig 2: Identifying AUTO And R/F (Recirculation/Fresh) Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. The indicator check is automatically performed when activating panel diagnosis. Check that all indicators and setting displays come on and go off 4 times at 1 second intervals.
  Check that the buzzer sounds when the indicators come on.

  HINT:

  The sensor check is automatically started when the indicator check is completed.
4. Push the "TEMP DOWN (-)" switch to finish panel diagnosis.

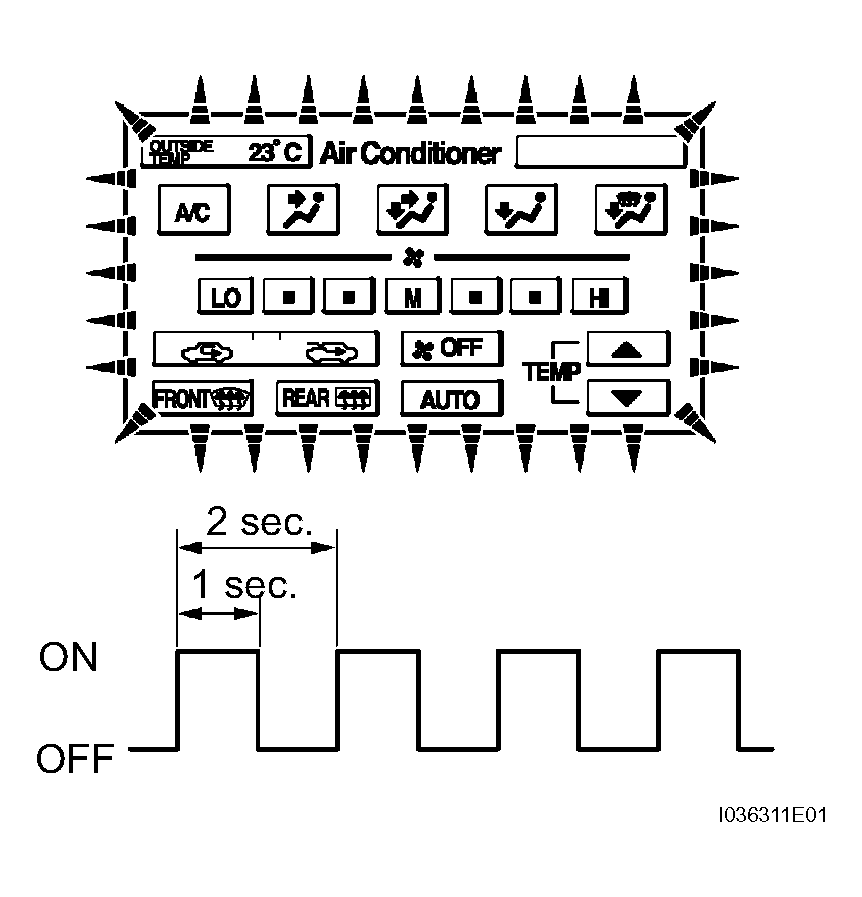

  Fig 3: Identifying Blinking Pattern
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
