Air Conditioning: Condenser: Components

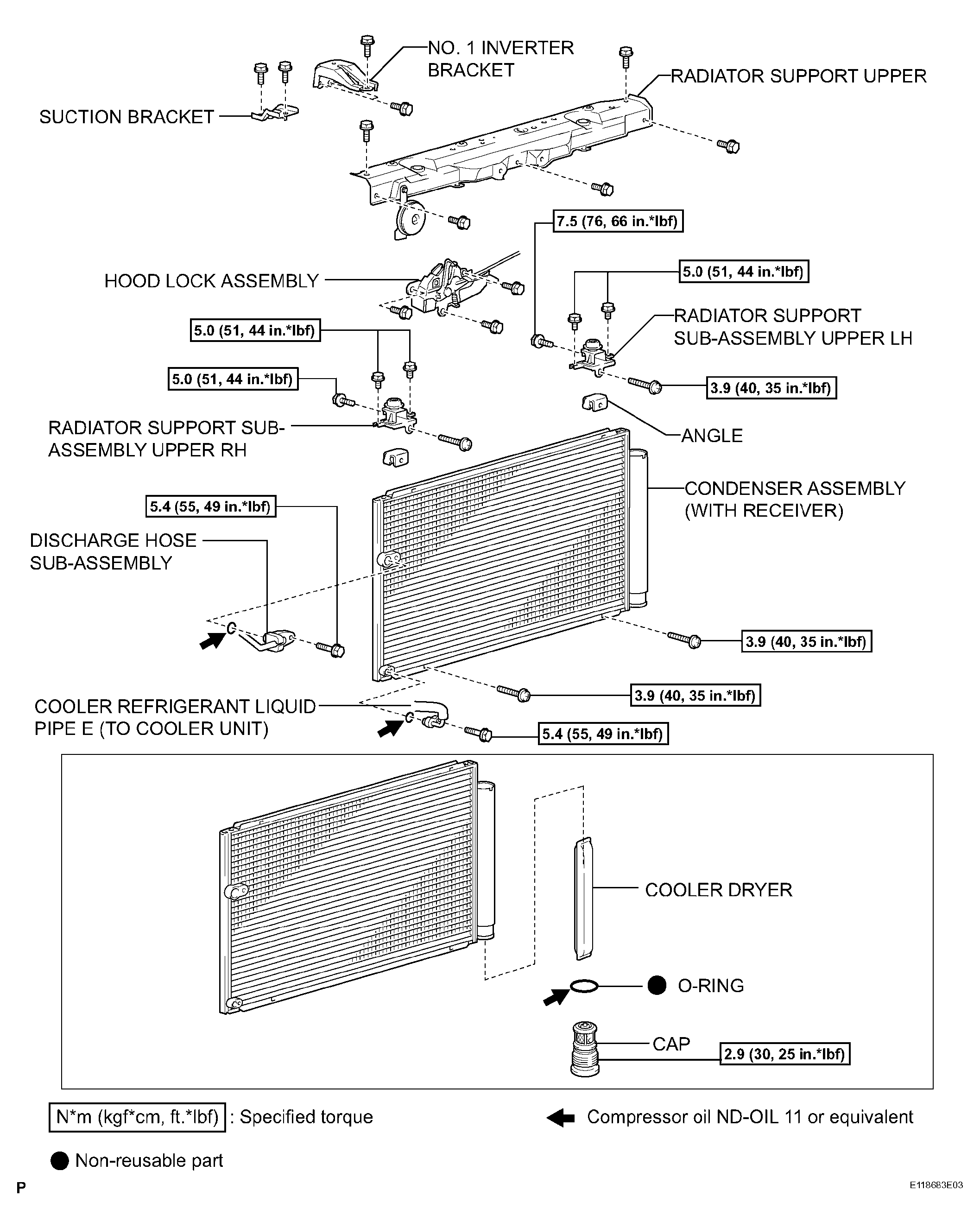

Fig 1: Identifying Condenser Components
G04475216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
