Air Conditioning: Condenser: Reassembly

INSTALL COOLER DRYER

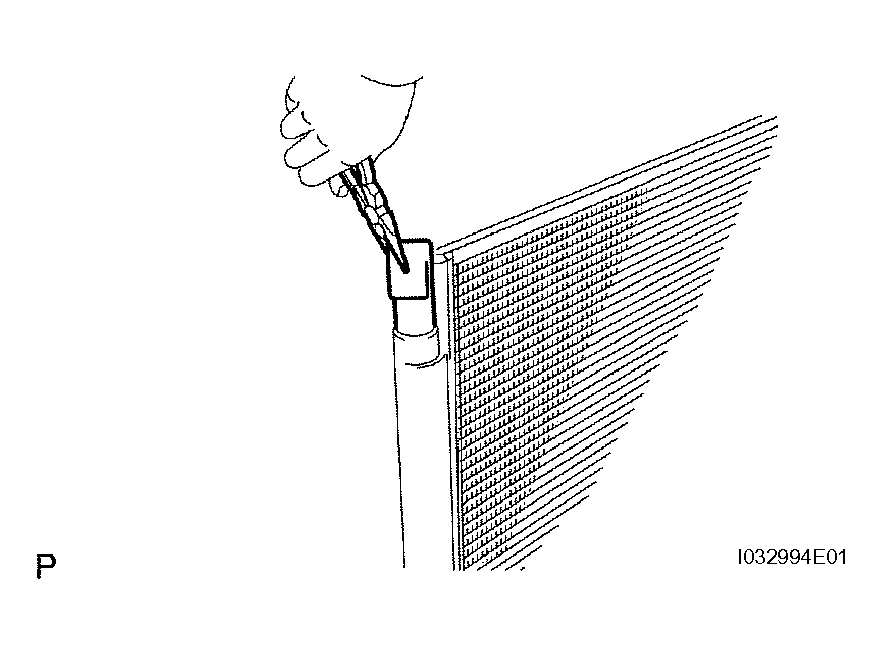

1. Using pliers, install the cooler dryer to the modulator.
2. Install a new O-ring to the cap.

  Fig 1: Installing Cooler Dryer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Sufficiently apply compressor oil (ND-OIL 11) to the O-ring and cap fitting surface.
  Compressor oil: ND-OIL 11 or equivalent
  NOTE:
  - Do not use any compressor oil other than ND-OIL 11.
  - If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.

    Fig 2: Identifying O-Ring And Cap Fitting Surface
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

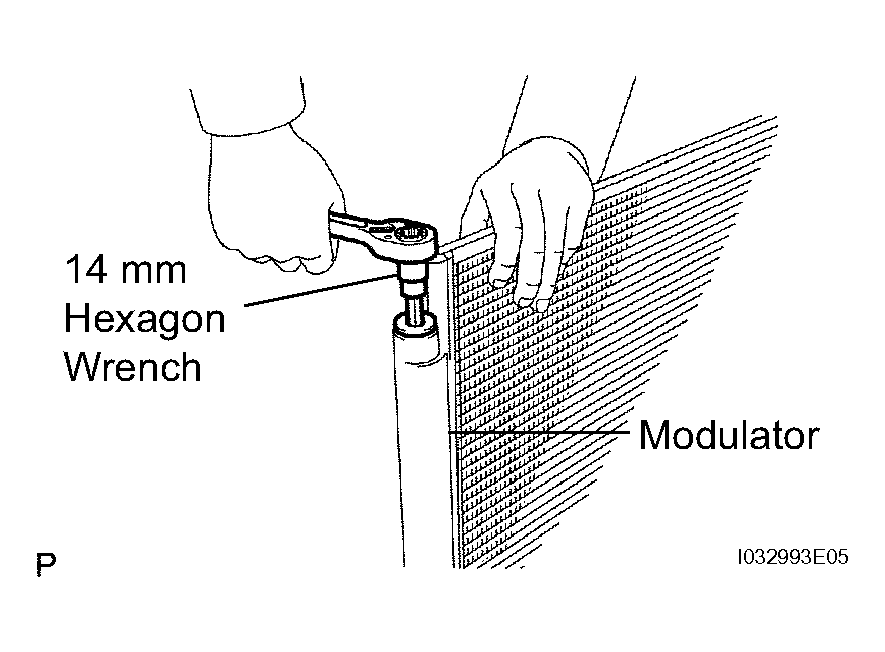

4. Using a 14 mm hexagon wrench, install the cap to the modulator.
  Torque: 2.9 N*m (30 kgf*cm, 25 in.*lbf)

  Fig 3: Installing Cap To Modulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
