Refrigerant Line: Components

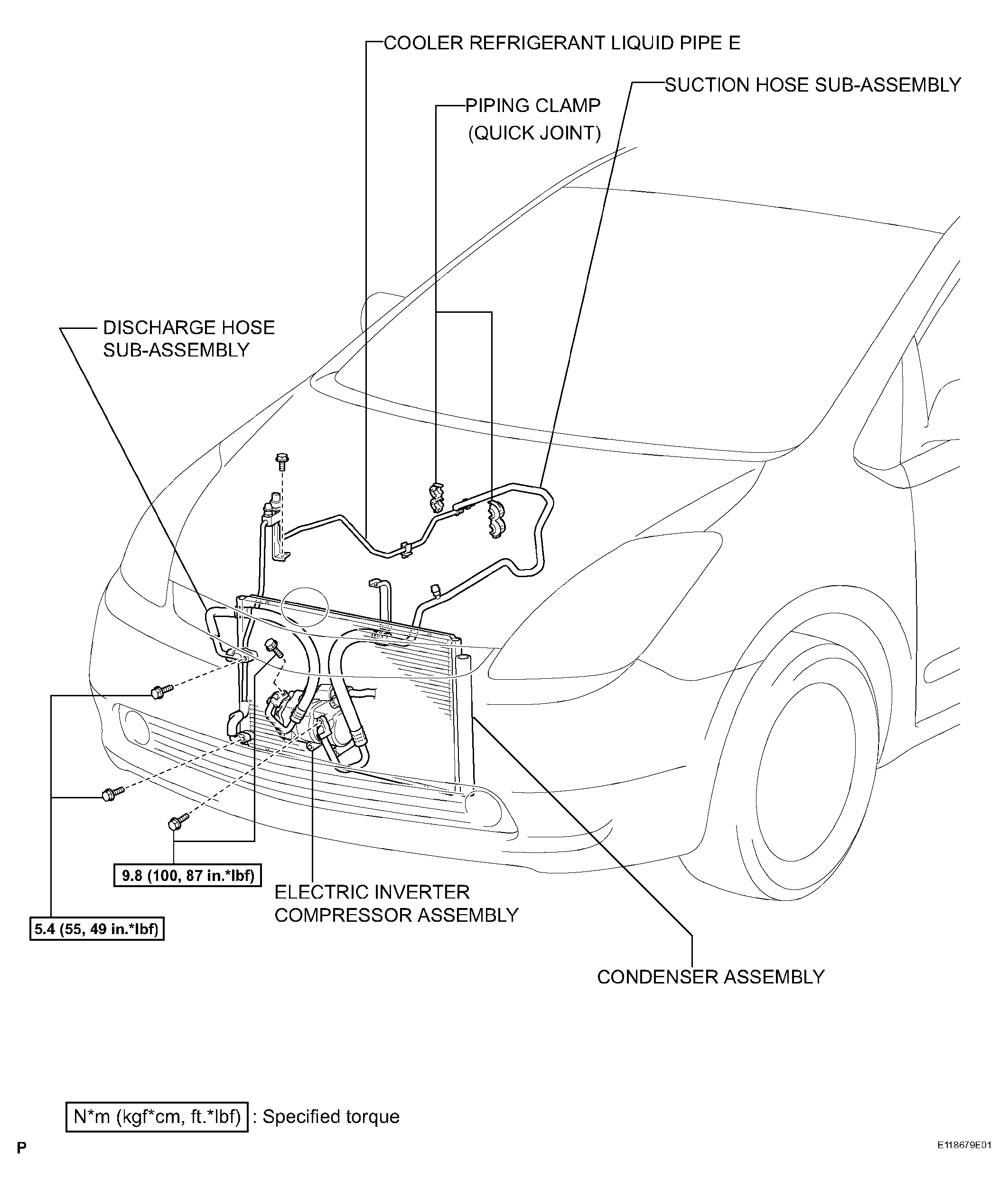

Fig 1: Identifying Refrigerant Line Components
G04475130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
