Rear Axle Beam: Components

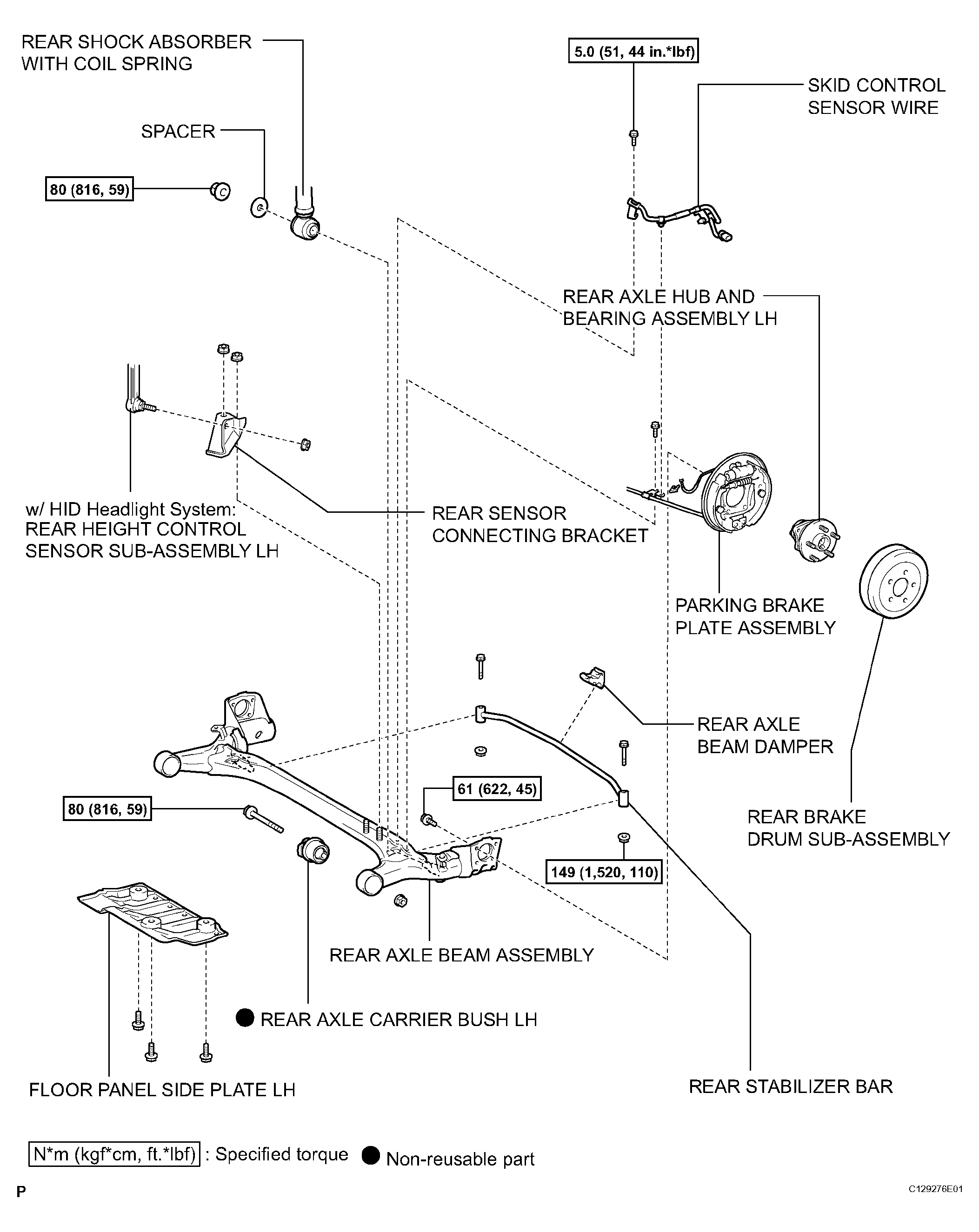

Fig 1: Rear Axle Beam Replacement Components -- With Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
