Rear Wiper And Washer: Notes

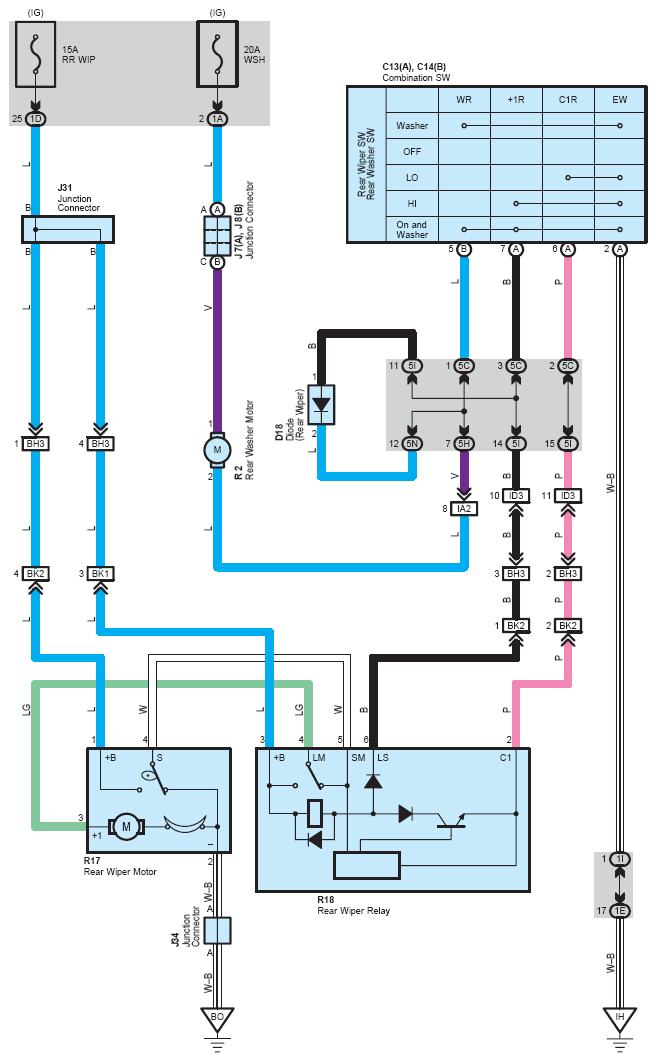

Fig 1: Rear wiper and washer system wiring diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
