Toyota
›
2007
›
Prius Touring
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Turn Signal And Hazard Warning Light
›
Notes
Turn Signal And Hazard Warning Light: Notes

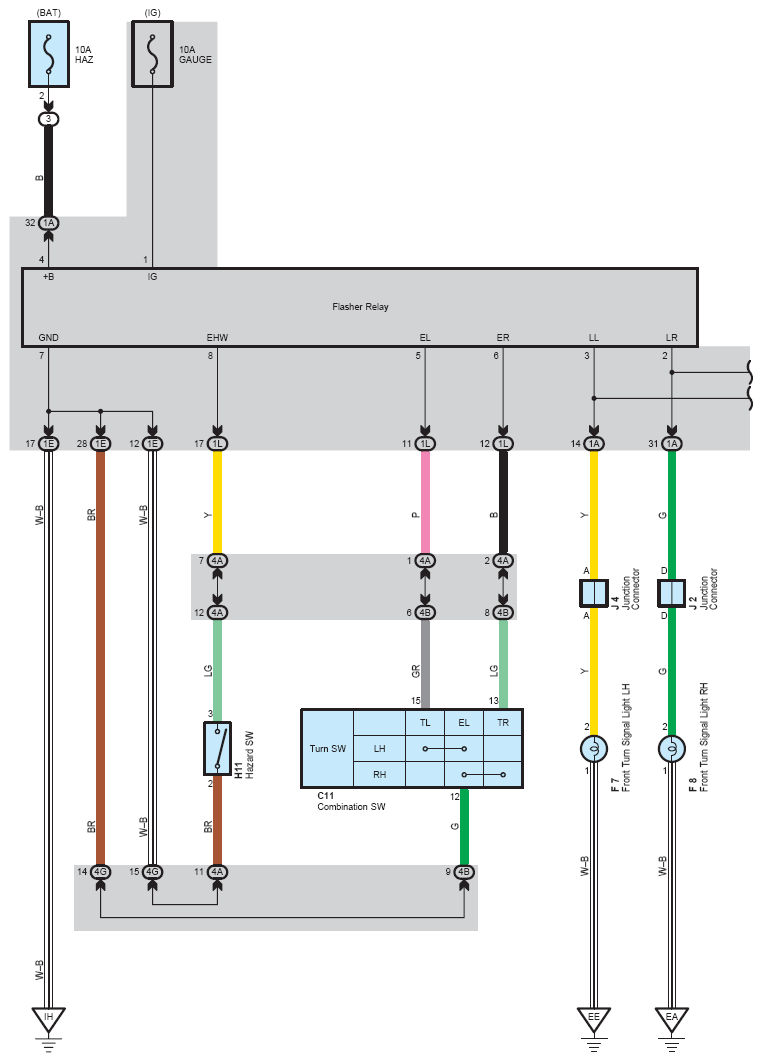

Fig 1: Turn signal and hazard warning light system wiring diagram (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

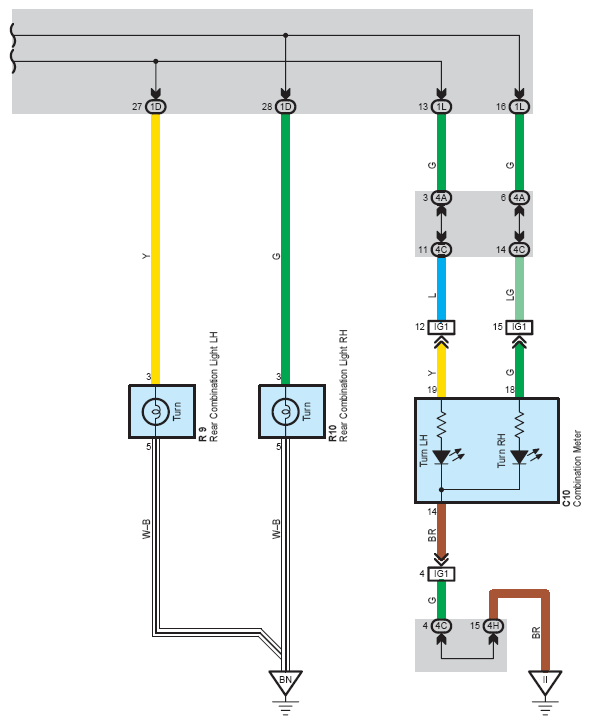

Fig 2: Turn signal and hazard warning light system wiring diagram (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
