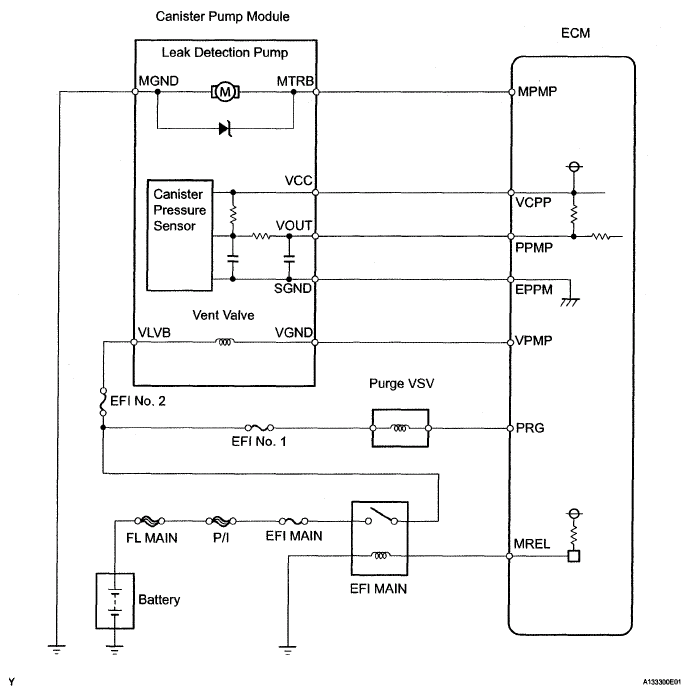

EVAP System: Wiring Diagram
Fig 1: A/F Sensor Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
