Toyota
›
2007
›
RAV4 Base, 2.4 D, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (2AZ-FE)
›
SFI System
›
VC Output Circuit
›
Wiring Diagram
VC Output Circuit: Wiring Diagram

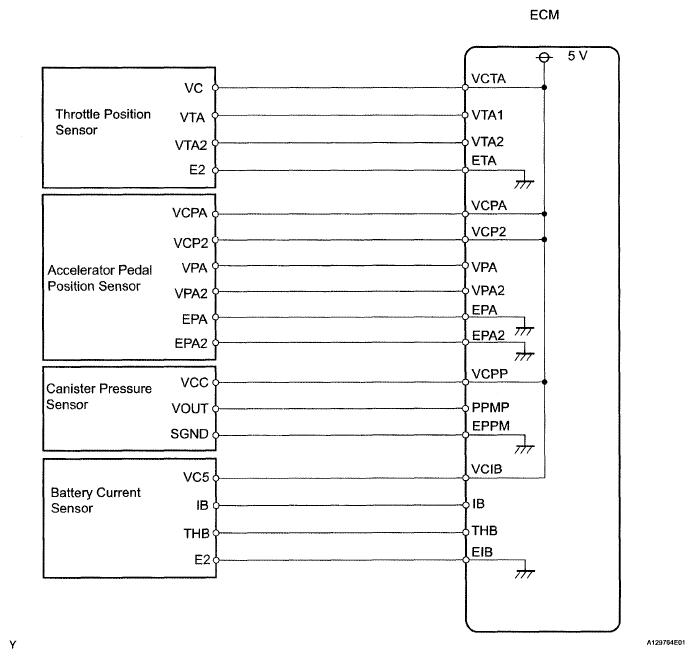

Fig 1: VC Output Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
