Automatic Transaxle Assembly: Components

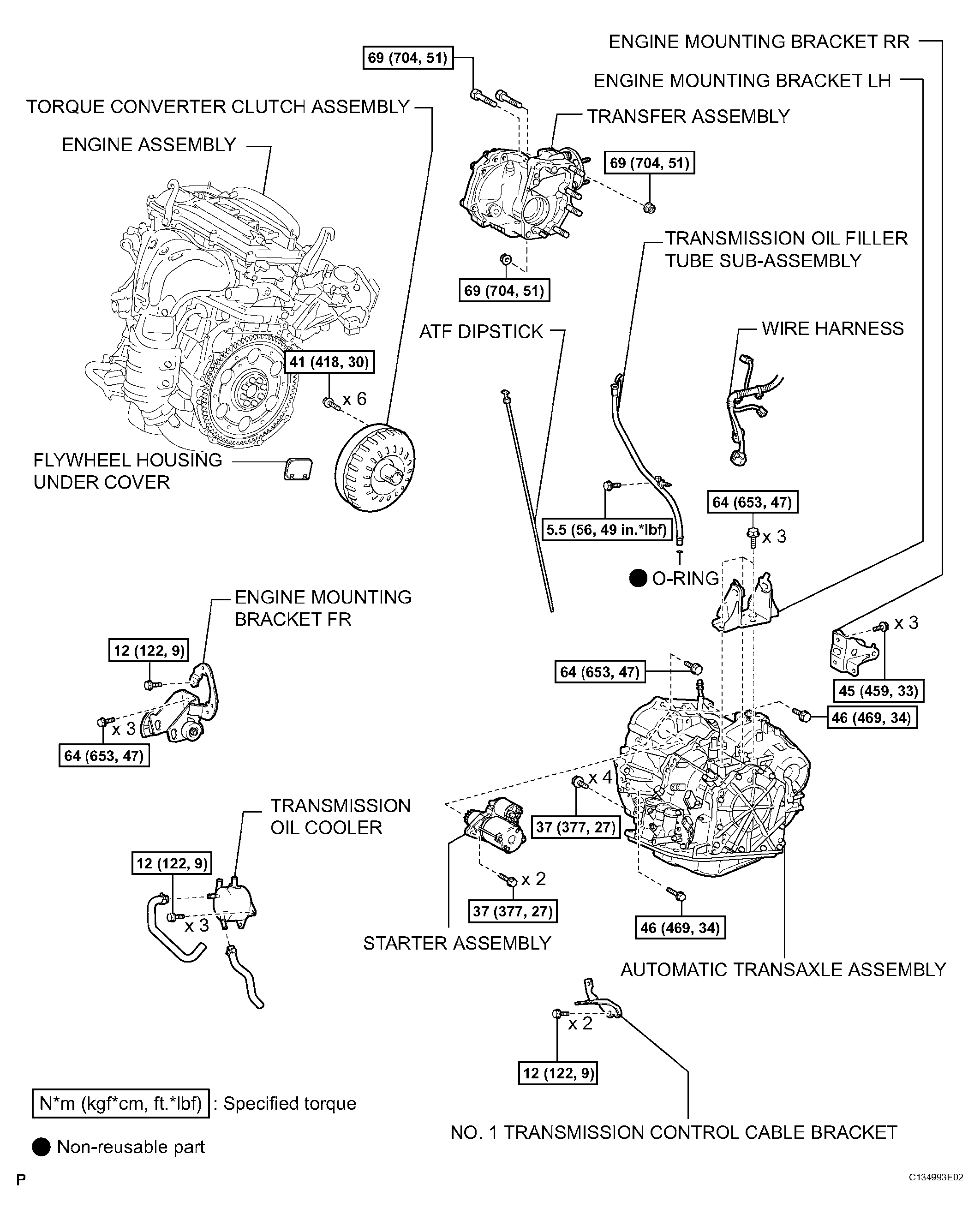

Fig 1: Identifying Automatic Transaxle Assembly Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
