Automatic Transaxle Unit: Components

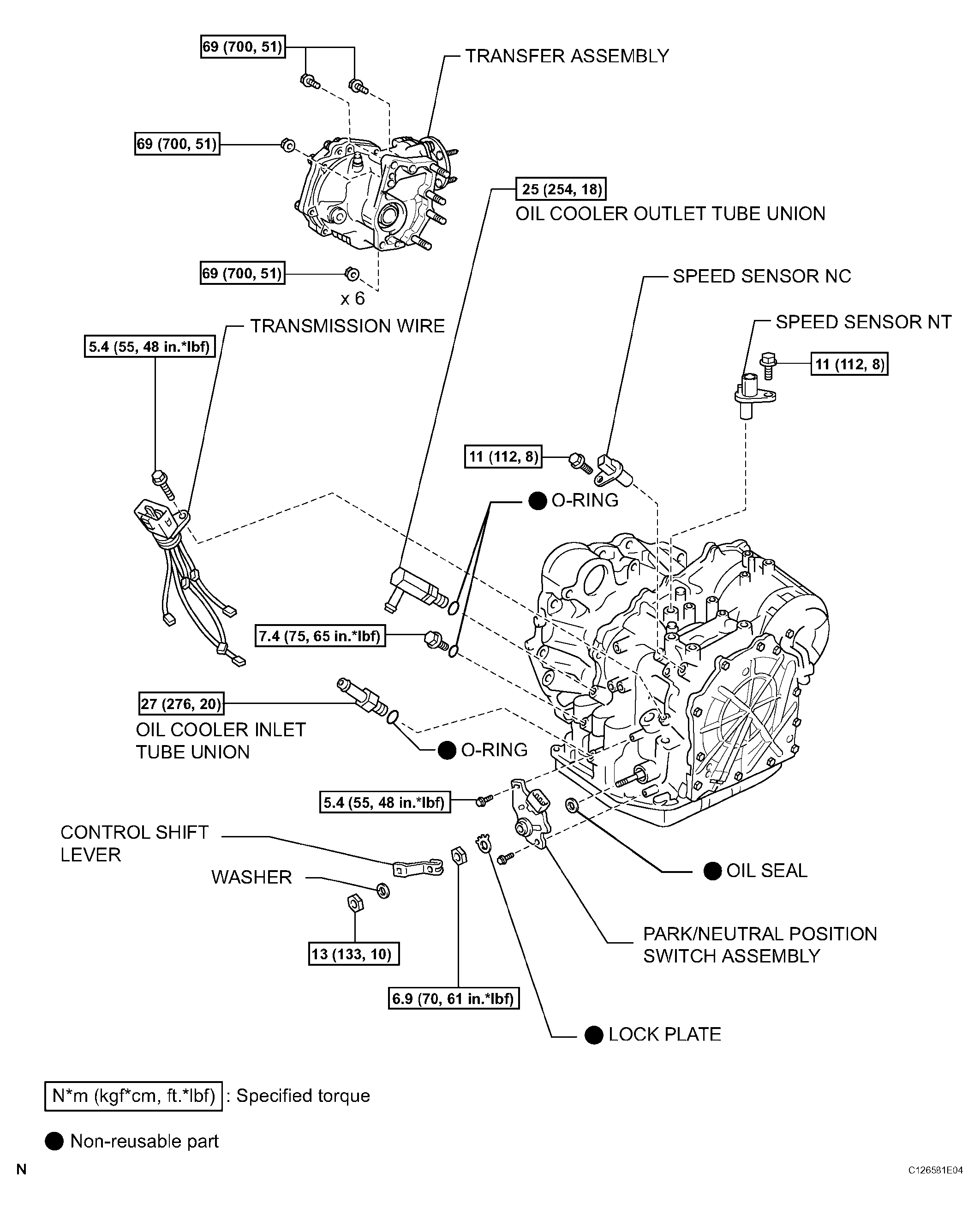

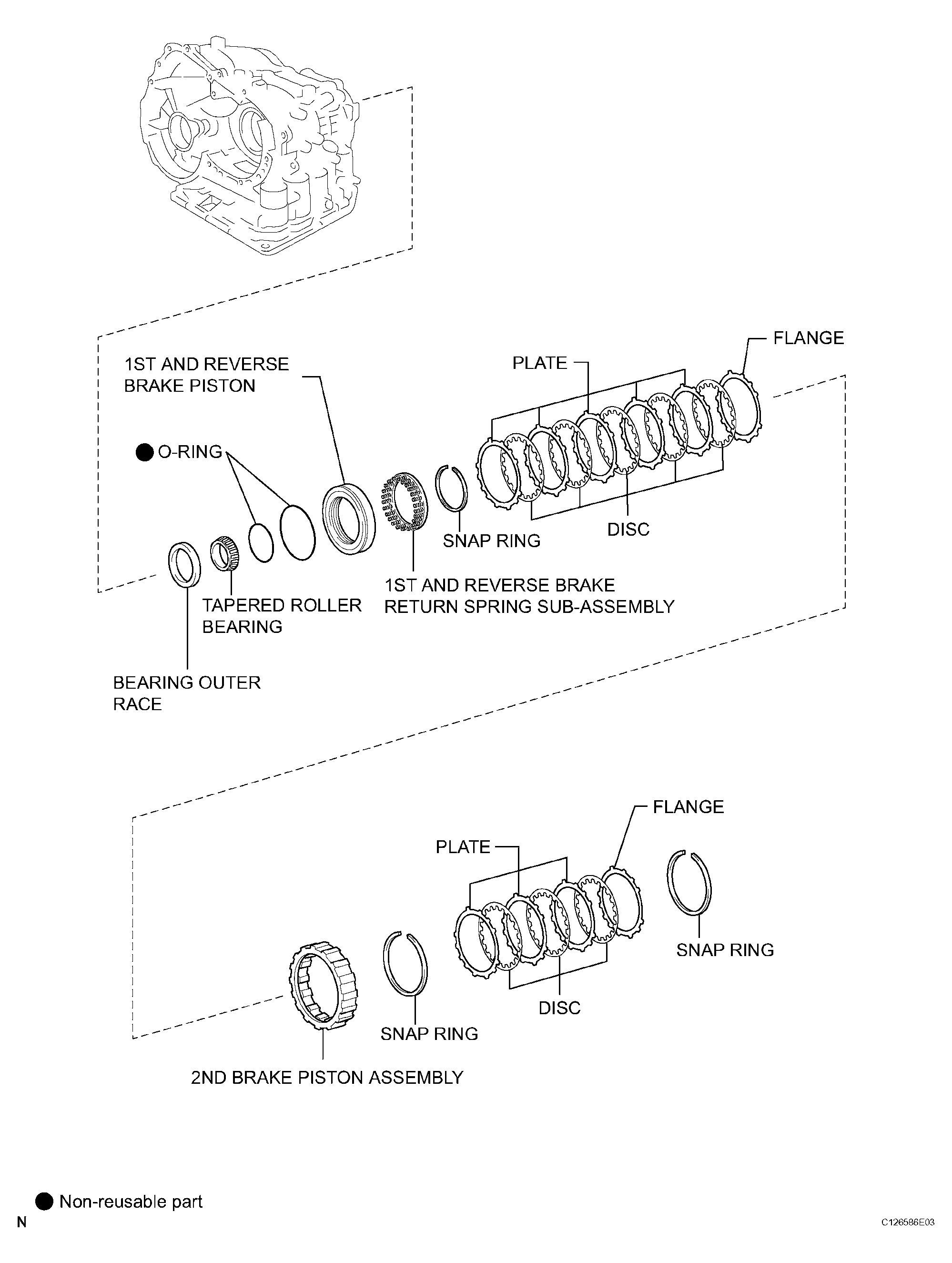

Fig 1: Identifying Automatic Transaxle Unit Components (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

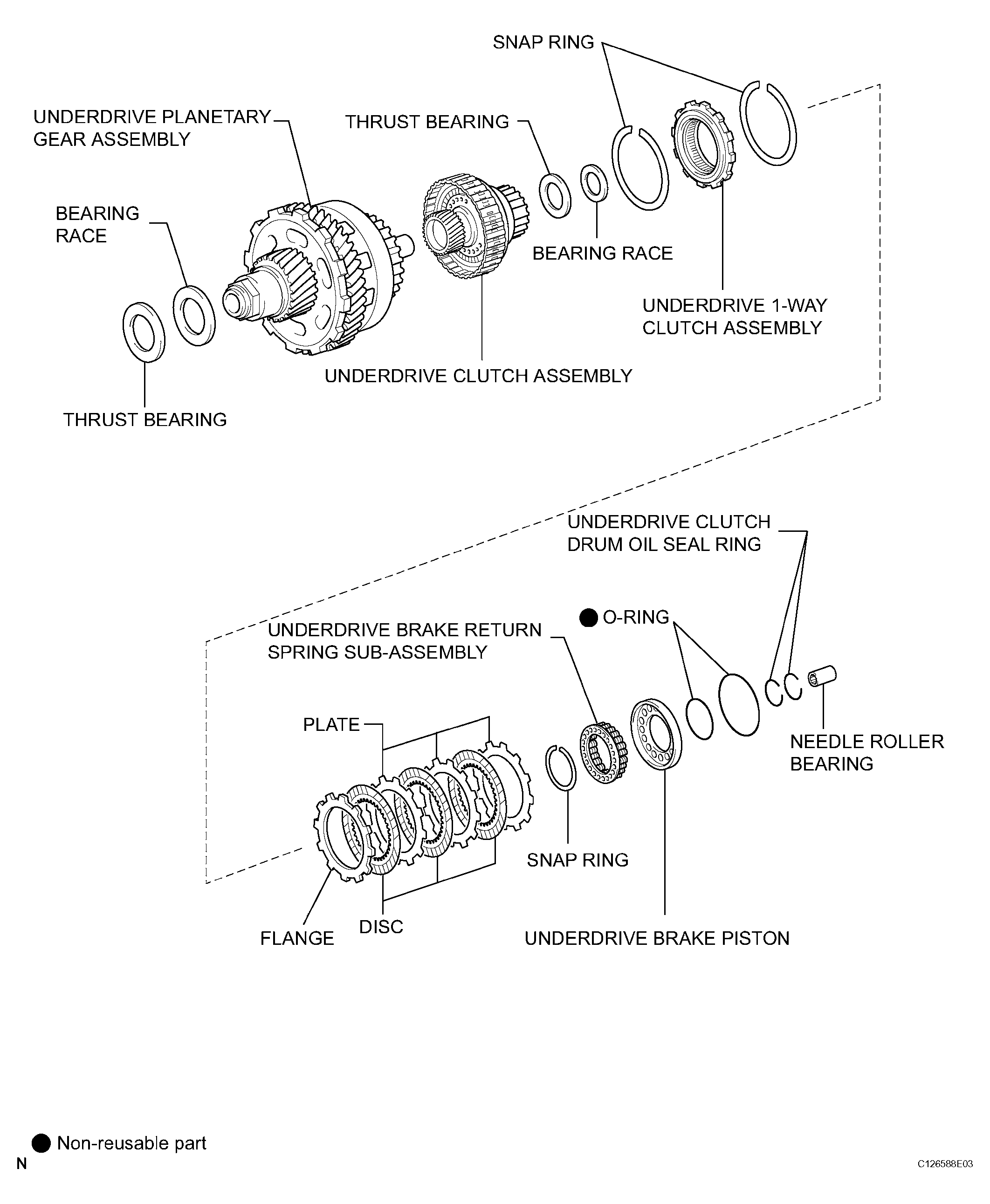

Fig 2: Identifying Automatic Transaxle Unit Components (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

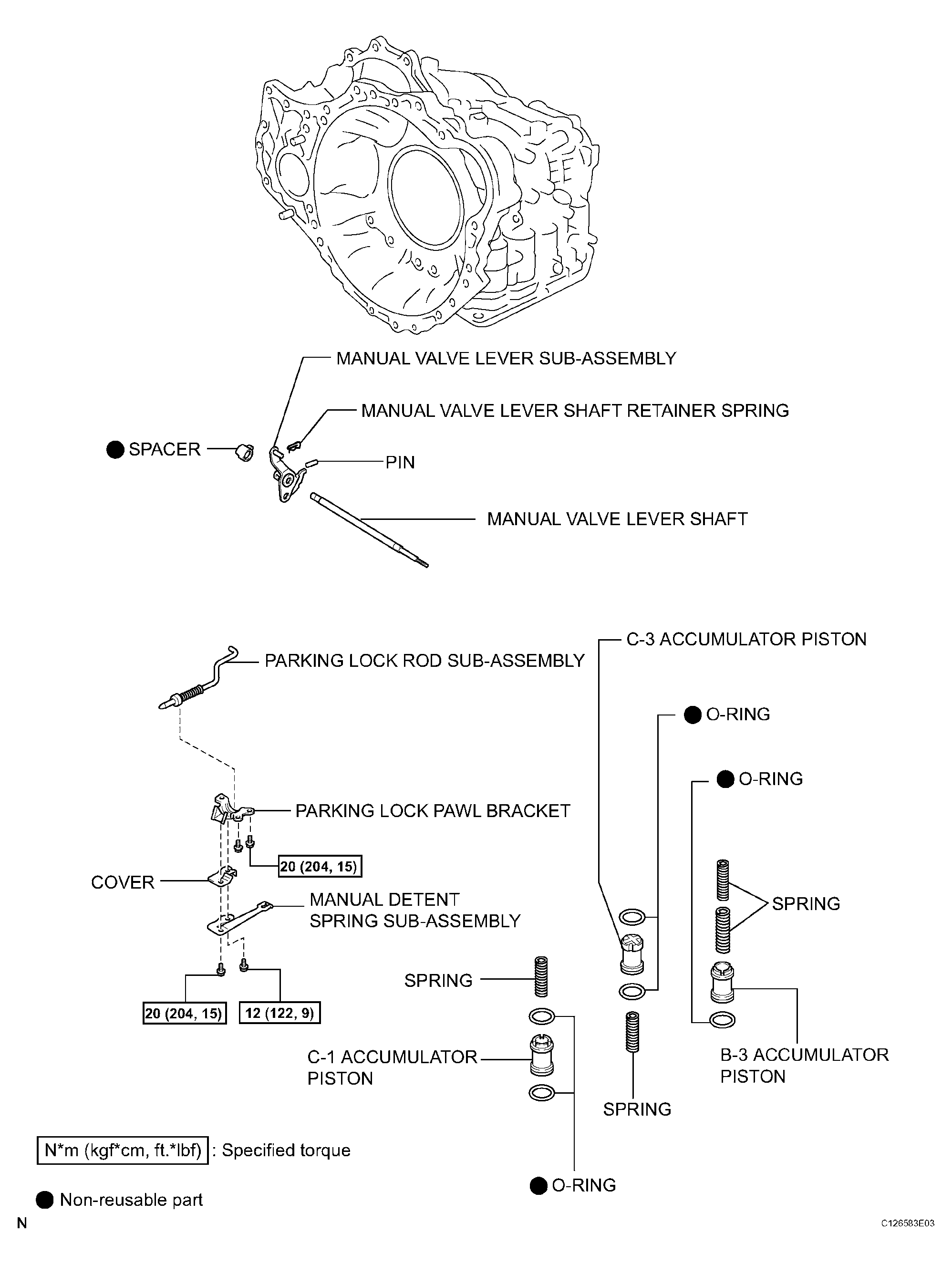

Fig 3: Identifying Automatic Transaxle Unit Components (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

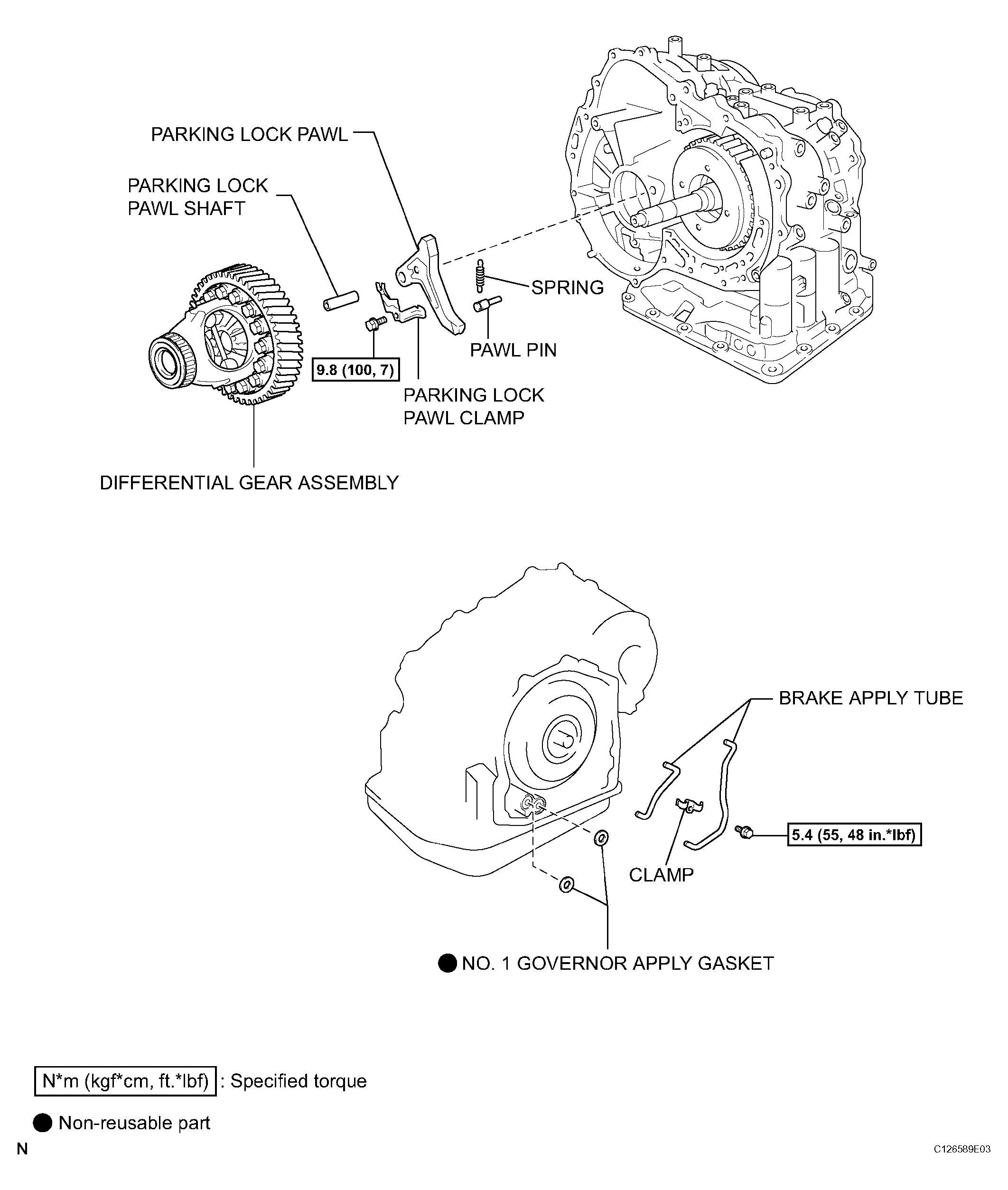

Fig 4: Identifying Automatic Transaxle Unit Components (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

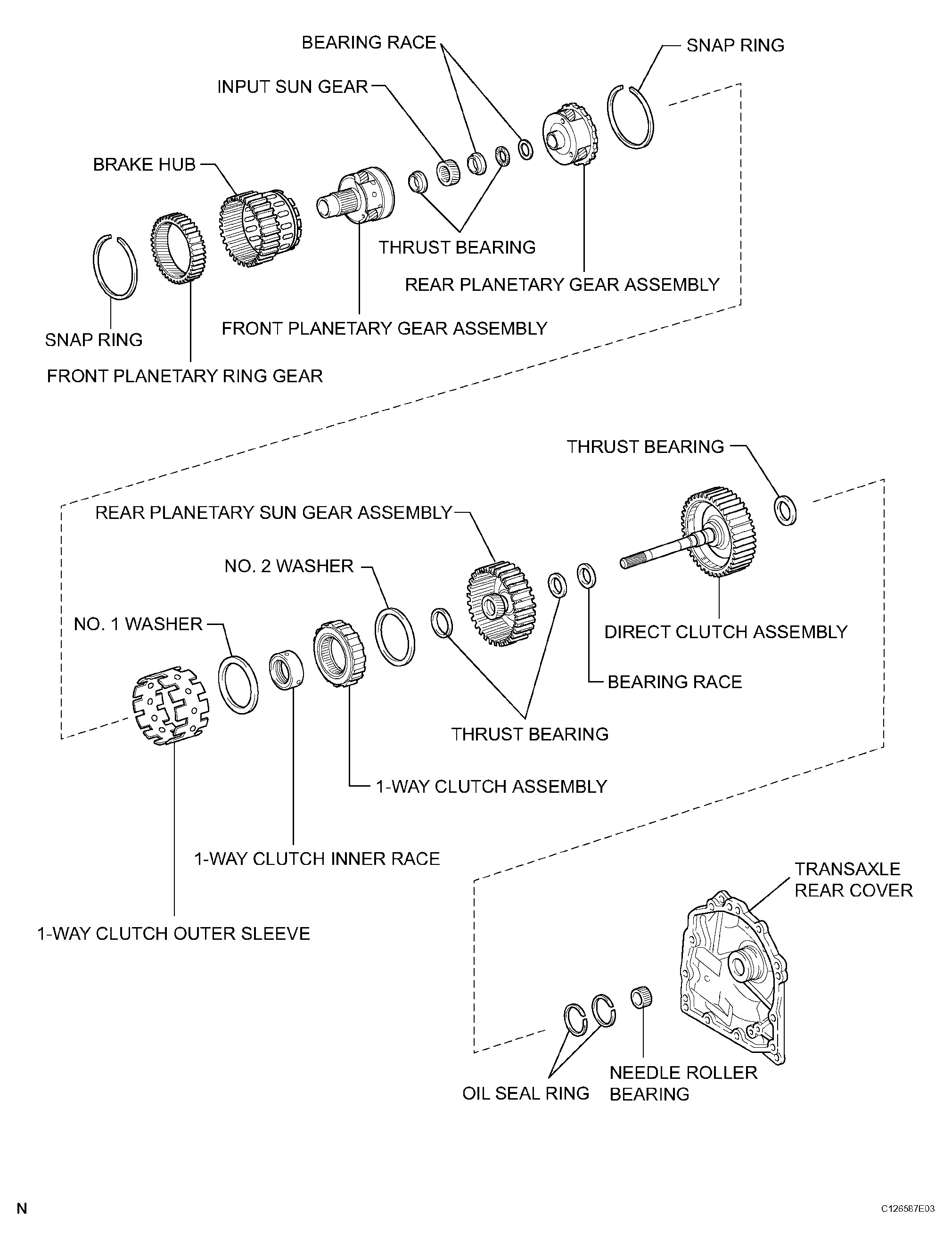

Fig 5: Identifying Automatic Transaxle Unit Components (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

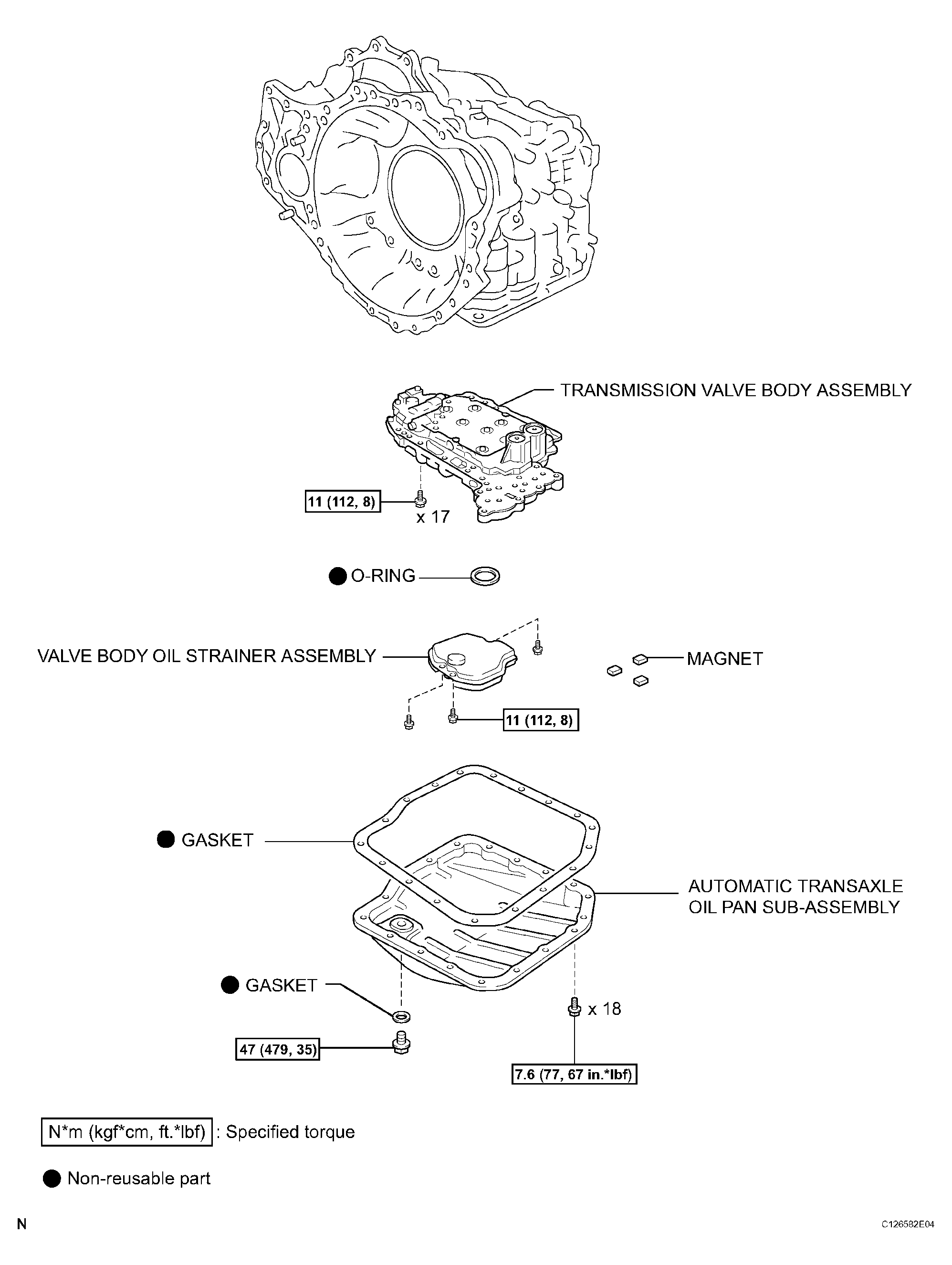

Fig 6: Identifying Automatic Transaxle Unit Components (6 Of 9)

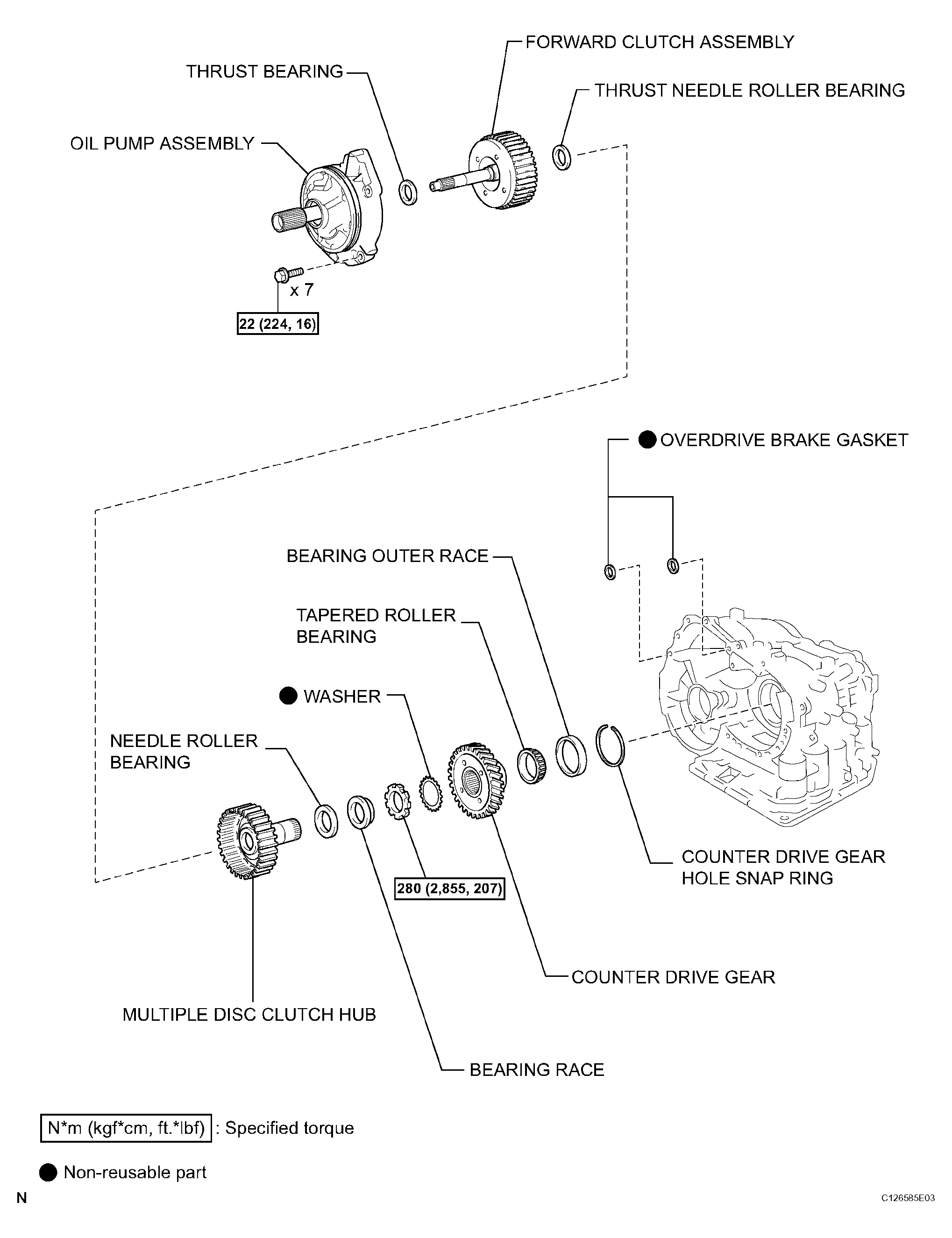

Fig 7: Identifying Automatic Transaxle Unit Components (7 Of 9)

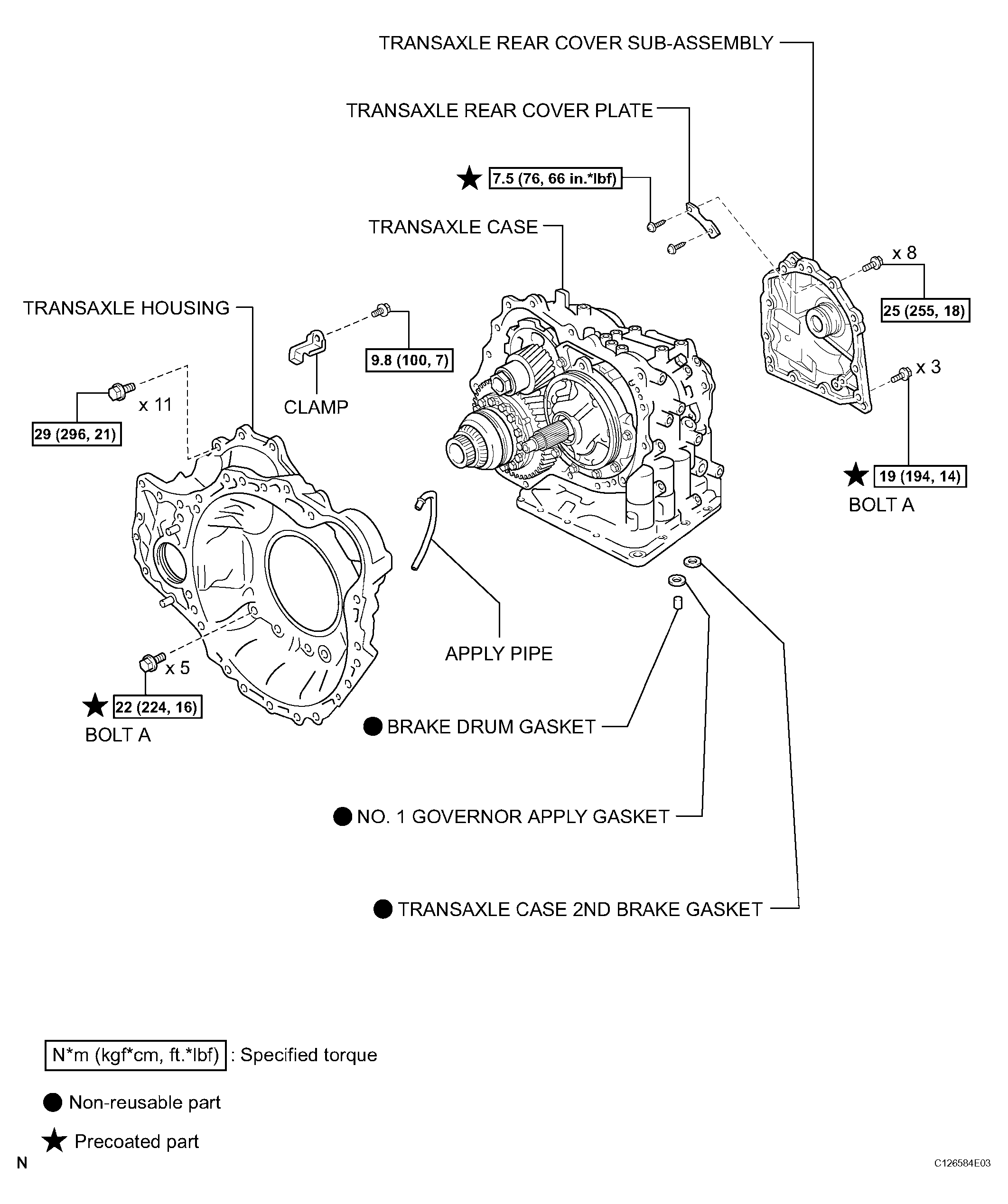

Fig 8: Identifying Automatic Transaxle Unit Components (8 Of 9)

Fig 9: Identifying Automatic Transaxle Unit Components (9 Of 9)
