Speed Sensor: Installation

INSTALL SPEED SENSOR NC
1. Coat a new O-ring with ATF.
2. Install the O-ring to the sensor.
3. Install the sensor with the bolt.
  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
4. Connect the sensor connector.

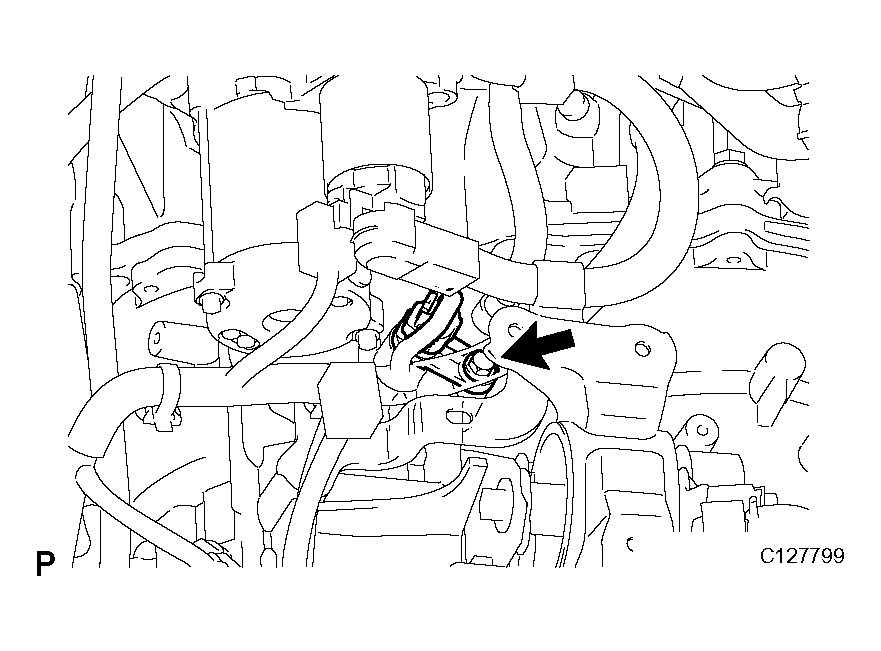

  Fig 1: Installing Speed Sensor NC
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR NT
1. Coat a new O-ring with ATF.
2. Install the O-ring to the sensor.
3. Install the sensor with the bolt.
  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
4. Connect the sensor connector.
INSTALL BATTERY
1. Install the battery bracket reinforcement with the 2 bolts.

  Fig 2: Installing Speed Sensor NT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
2. Install the battery carrier with the 4 bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
3. Install the battery tray.
4. Install the battery with the battery clamp.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf) for bolt

  5.0 N*m (51 kgf*cm, 44 in.*lbf) for nut
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
