Transmission Control Cable Assembly: Replacement

REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
1. Remove the console box (see ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE BATTERY
1. Loosen the nut and remove the bolt and battery clamp.
2. Remove the battery.
3. Remove the battery tray.
4. Remove the 4 bolts and battery carrier.
5. Remove the 2 bolts and battery bracket reinforcement.
REMOVE AIR CLEANER ASSEMBLY
1. Disconnect the mass air flow meter connector.
2. Remove the 2 clamps of the engine wire.

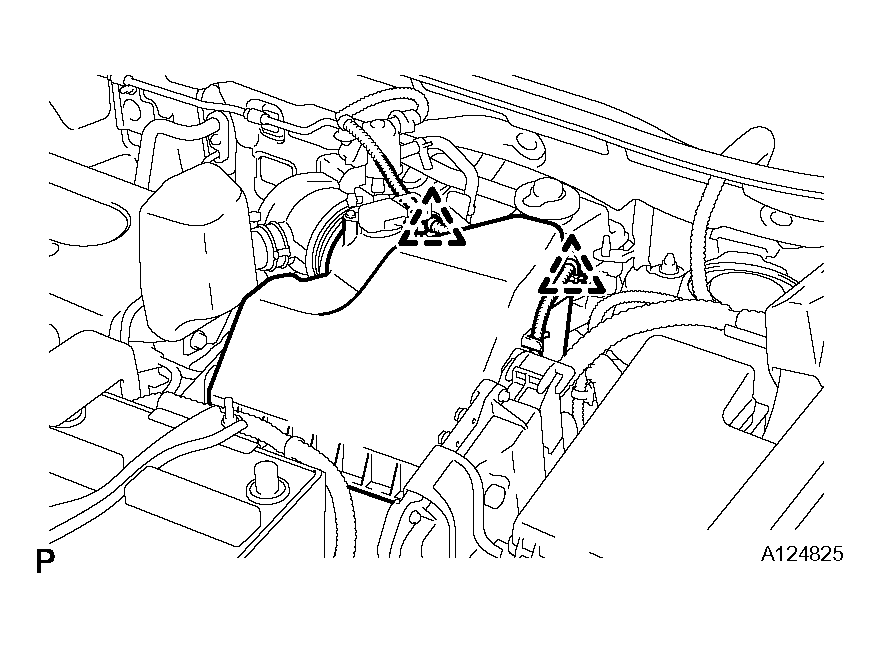

  Fig 1: Removing Air Cleaner Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 bolts from the air cleaner case.
4. Disconnect the air cleaner case from the No. 1 air cleaner inlet.

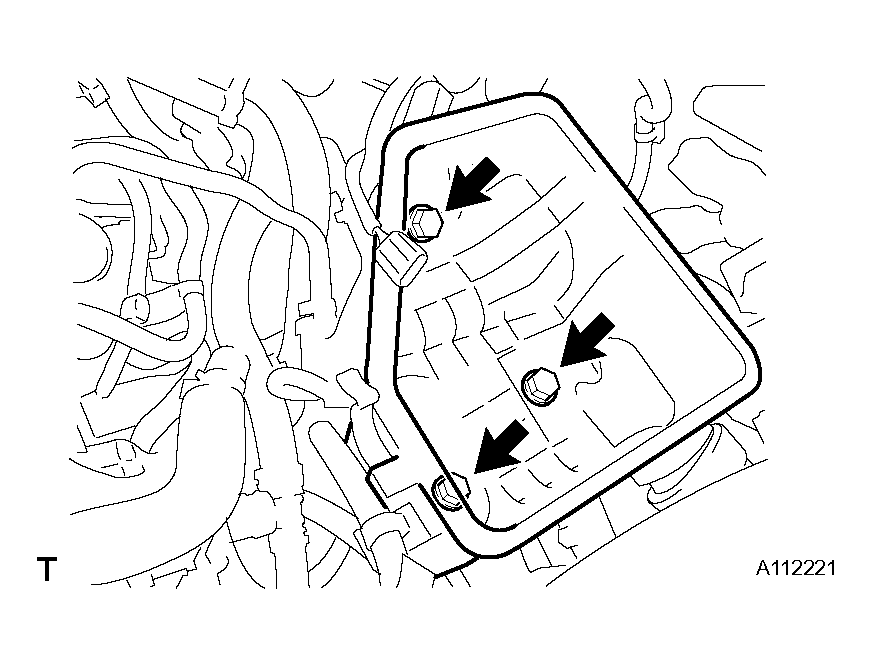

  Fig 2: Disconnecting Air Cleaner Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

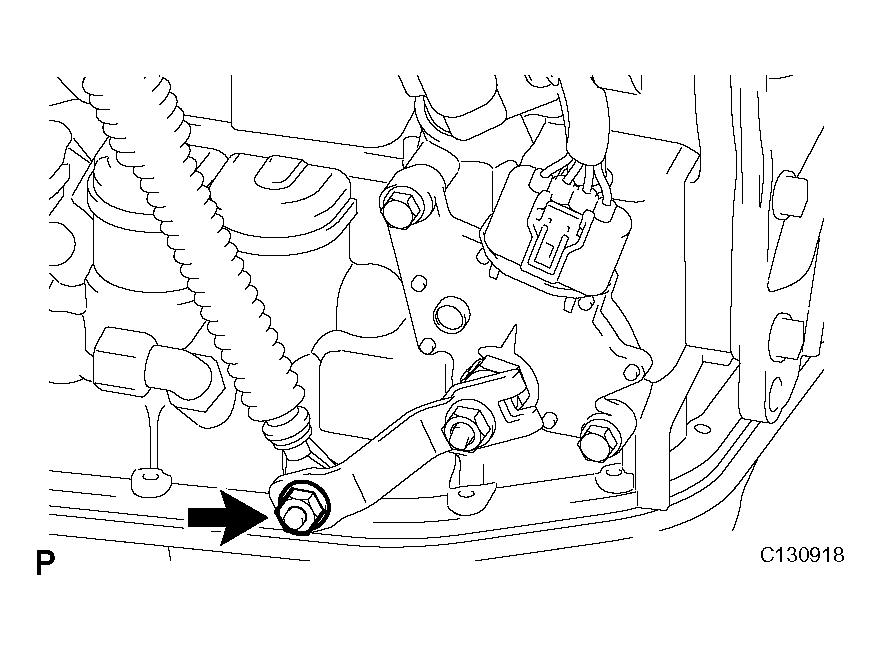

REMOVE TRANSAXLE CONTROL CABLE ASSEMBLY
1. Remove the nut and disconnect the control cable from the control shaft lever.

  Fig 3: Removing Transaxle Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

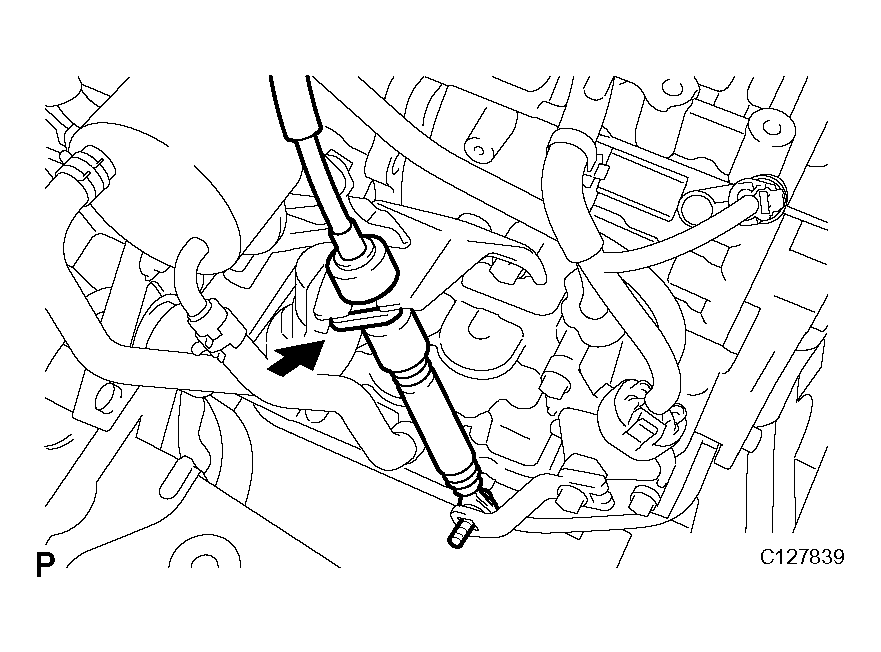

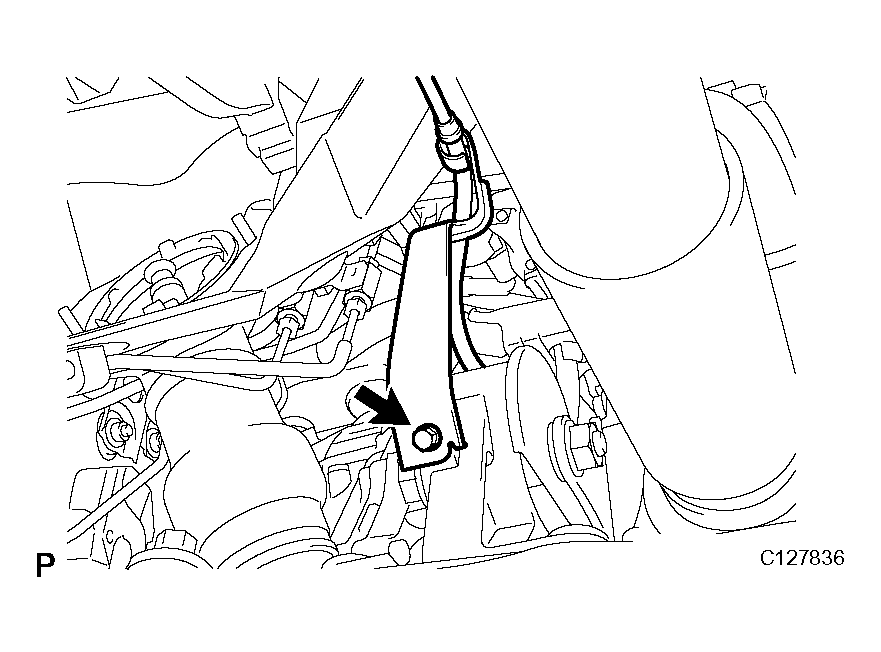

2. Remove the clip and disconnect the control cable from the control cable bracket.

  Fig 4: Disconnecting Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the control cable from the control cable support.

  Fig 5: Disconnecting Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and disconnect the clamp of the control cable.

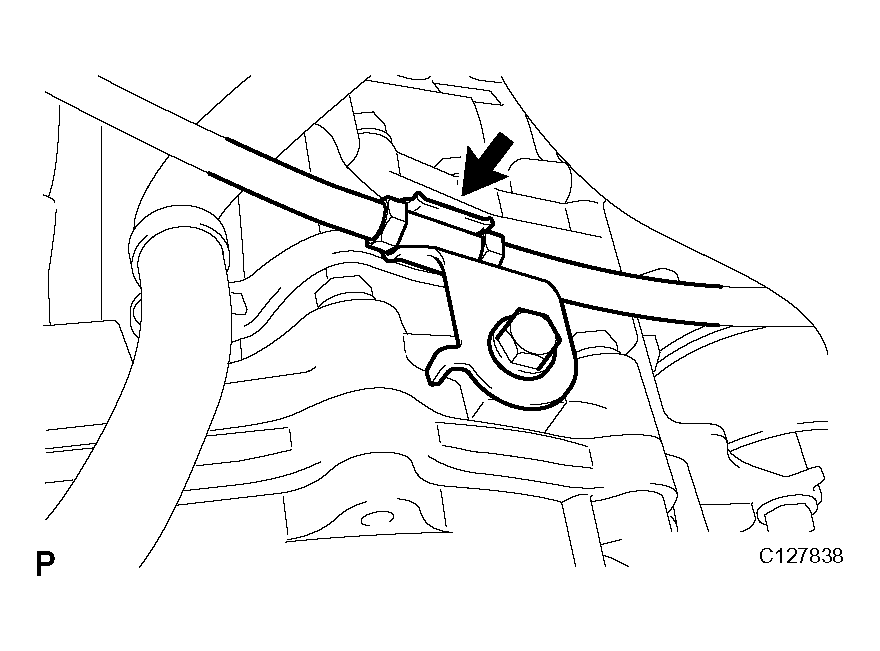

  Fig 6: Disconnecting Clamp Of Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the control cable from the shift lever.

  Fig 7: Disconnecting Control Cable From Shift Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Turn the nut and disconnect the control cable from the shift lever retainer.

  Fig 8: Disconnecting Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the 2 bolts and control cable.

  Fig 9: Removing Bolts And Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSAXLE CONTROL CABLE ASSEMBLY
1. Install the control cable with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  Fig 10: Installing Transaxle Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the nut of the control cable and push in the lock.

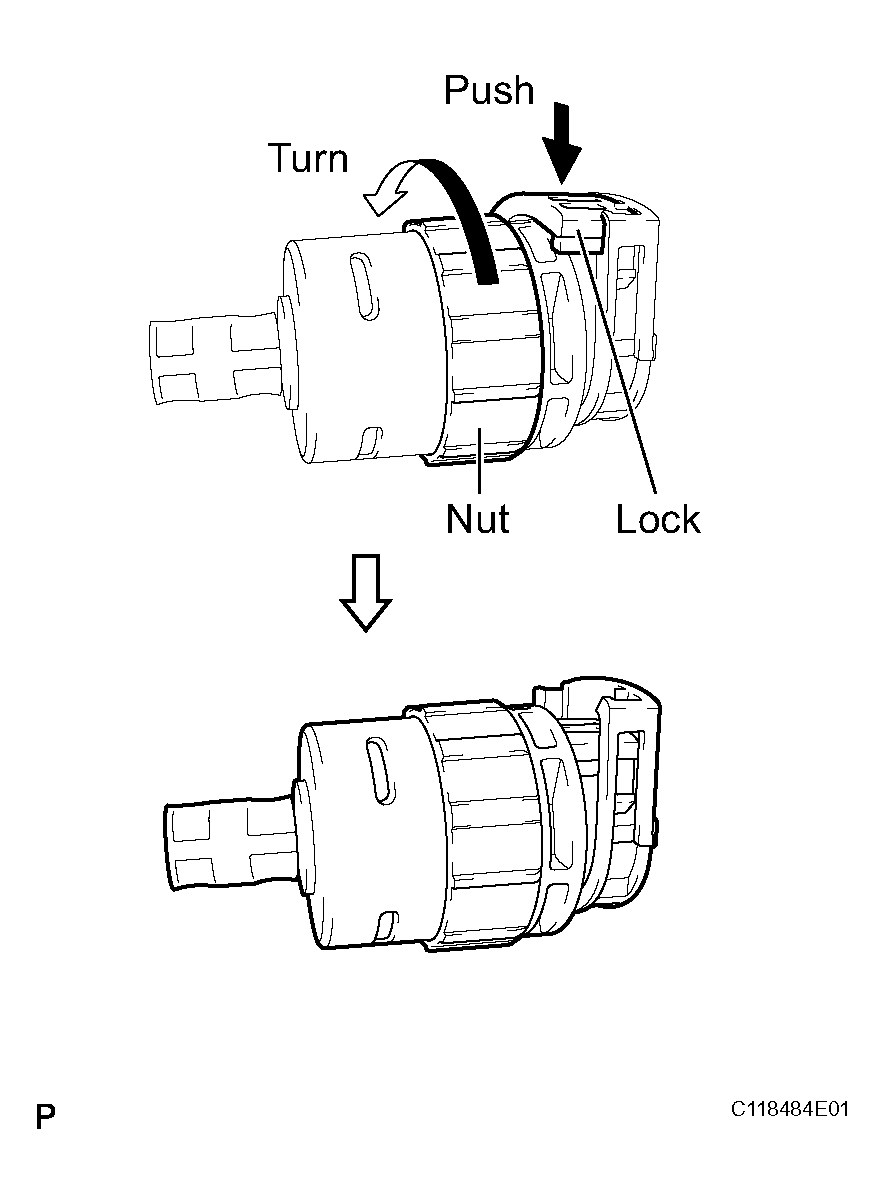

  Fig 11: Turning Nut Of Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the control cable onto the shift lever retainer.

  Fig 12: Installing Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Install the cable with the protruding portion of the cable outer facing upward.
  - After installing, check that the lock of the cable outer is protruding beyond portion A-A, as shown in the illustration.

    Fig 13: Installing Cable
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the control cable to the shift lever.
  NOTE: Connect the control cable so that the adjusting mechanism lock of the control cable is installed on the driver side of the vehicle.

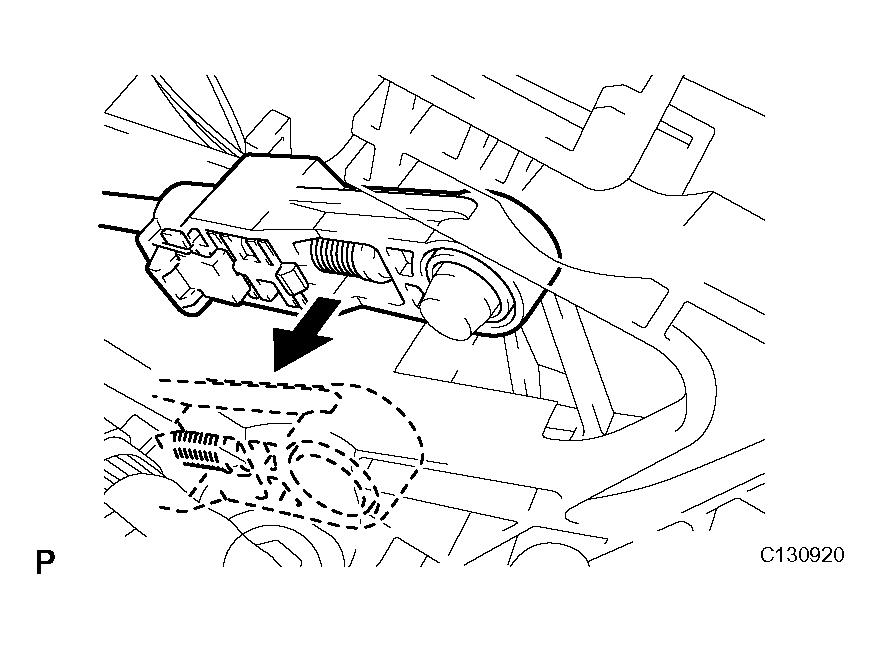

  Fig 14: Connecting Control Cable To Shift Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Fix the control cable onto the control cable bracket with the clip.

  Fig 15: Fixing Control Cable Onto Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the control cable onto the control shaft lever with the nut.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  Fig 16: Connecting Control Cable Onto Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the clamp of the control cable with the bolt.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  Fig 17: Connecting Clamp Of Control Cable With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Connect the control cable to the cable support.
INSTALL AIR CLEANER ASSEMBLY
1. Connect the air cleaner case to the No. 1 air cleaner inlet.

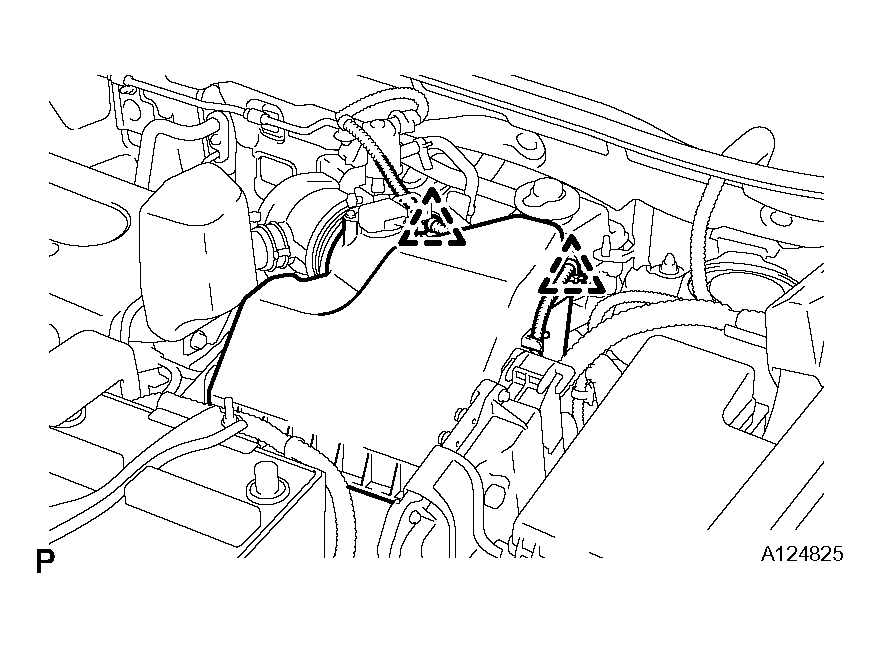

  Fig 18: Connecting Air Cleaner Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the air cleaner case with the 4 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

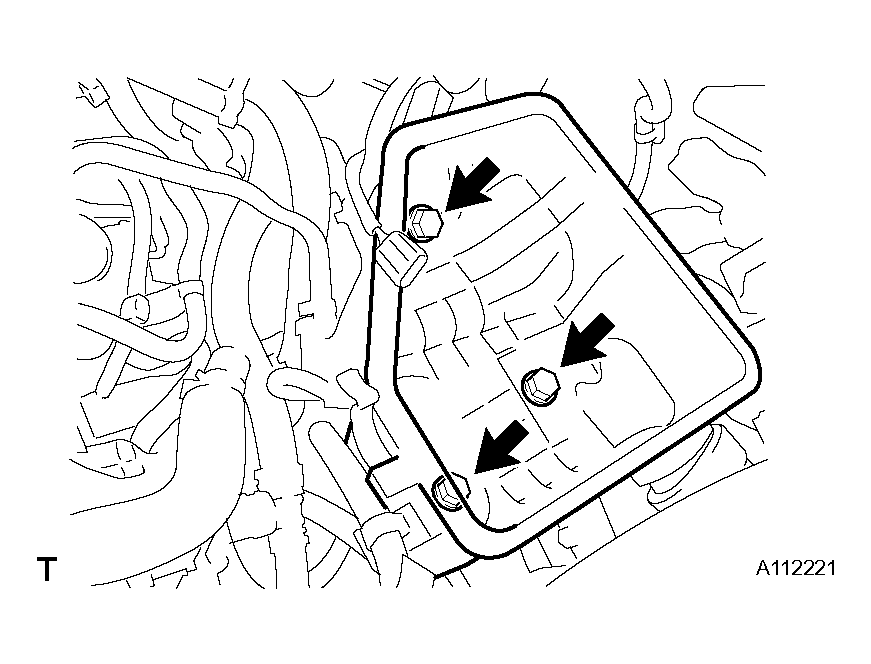

  Fig 19: Installing Air Cleaner Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 2 clamps of the engine wire.
4. Connect the mass air flow meter connector.
INSTALL BATTERY
1. Install the battery bracket reinforcement with the 2 bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
2. Install the battery carrier with the 4 bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
3. Install the battery tray.
4. Connect the 2 clamps of the engine wire.
5. Install the battery with the battery clamp.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf) for bolt

  5.0 N*m (51 kgf*cm, 44 in.*lbf) for nut

  Fig 20: Installing Battery Carrier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT SHIFT LEVER POSITION
1. When shifting the lever from P to the R position with the ignition switch on (IG) and the brake pedal depressed, make sure that the shift lever moves smoothly and moves correctly into position.
2. Start the engine and make sure that the vehicle moves forward when shifting the lever from N to the D position and moves rearward when shifting the lever to the R position.
  If the operation cannot be performed as specified, inspect the park/neutral position switch and check the shift lever installation condition.
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
1. Install the rear console box (see ).
